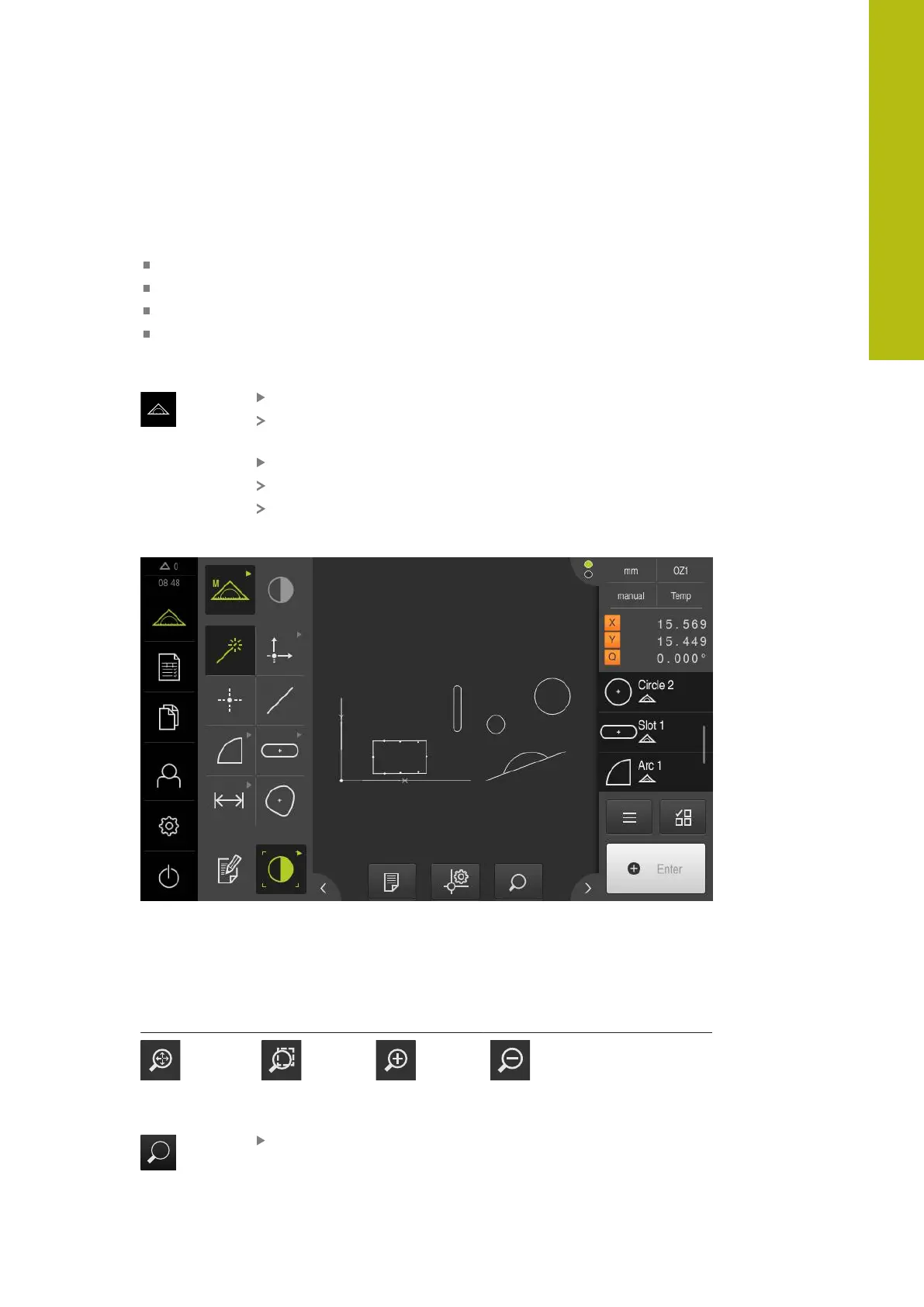

6.13 Working in the features view
The Manual measuring function is available in the features view.
In the features view, you can do the following:
Customize the view
Select or deselect features
Add annotations to features
Show or hide annotations
Activation
Tap Measure in the main menu
The user interface for measuring, constructing, and defining
is displayed
In the Inspector, tap Features preview
The features view is displayed in the workspace
The current content of the workspace is displayed in the
Inspector
Figure 20: Workspace with features view
6.13.1 Resizing the features view
Zoom to all Zoom to
selection
Magnify
graphic
Reduce
graphic
Depending on the area available for the workspace, the controls may be grouped.
To display all controls, tap Zoom functions
6
