10.6.2 Defining a feature
Tap Measure in the main menu
Select Define in the function palette
Select the desired geometry in the geometry palette
Further information: "Overview of definable geometries",
Page 263
A new feature is added to the feature list and displayed in the
workspace
Enter a name for the feature
Confirm entry with RET
Enter the geometry parameters of the feature
Confirm entries with RET
Tap Finish in the new feature
The defined feature is displayed in the feature list

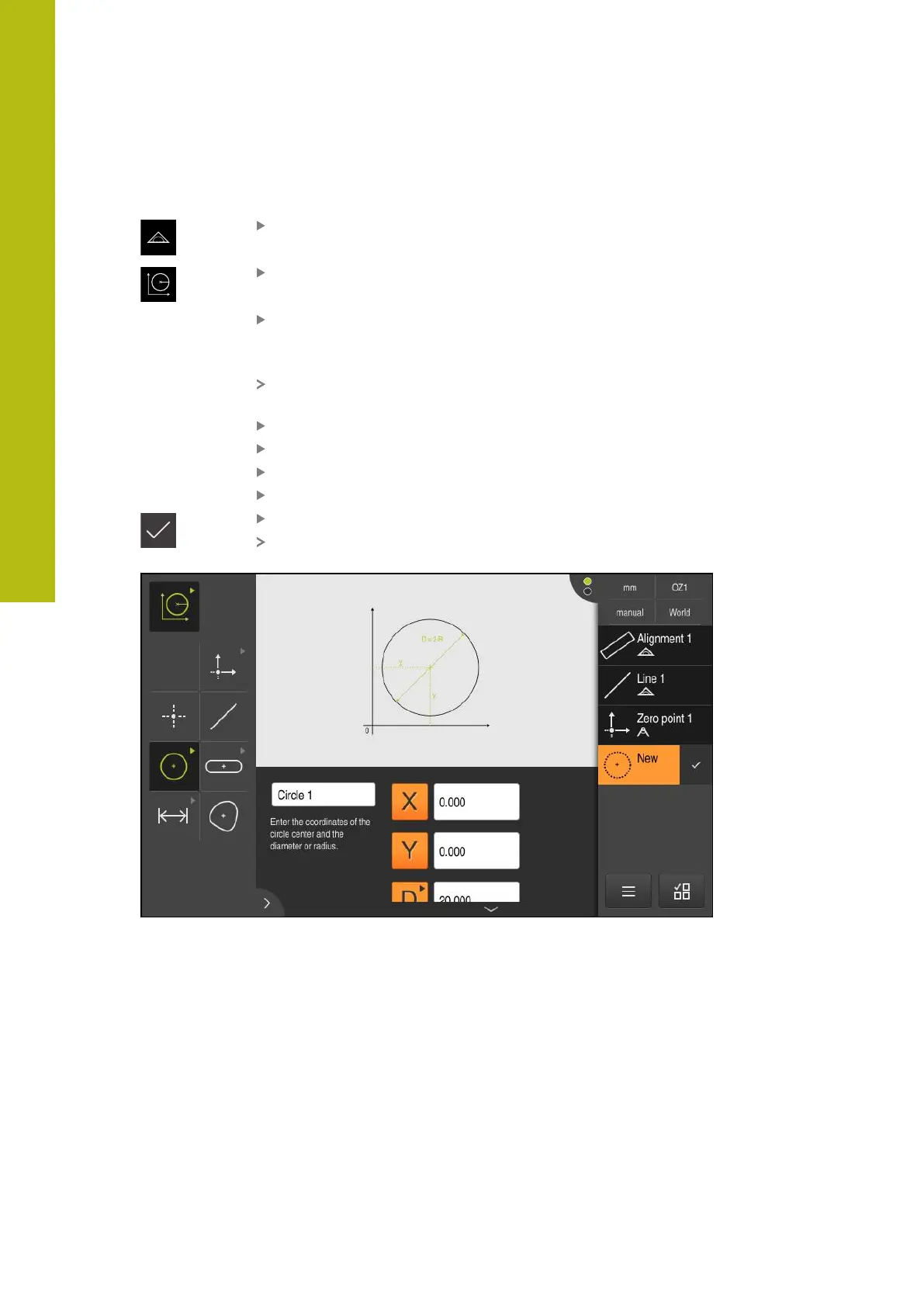

Figure 63: Defined features in the features view of the workspace and feature list of the
Inspector
266
HEIDENHAIN | QUADRA-CHEK 2000 | Operating Instructions | 07/2019
