Quick Start | Conducting a measurement
9
Measuring the alignment
Define the reference edge for the alignment according to the technical drawing.
Tap Measure in the main menu
Select Manual measuring in the function palette
If multiple sensors are available, select OED sensor in the
sensor palette
The geometry palette and the OED measuring tools are now
displayed
The workspace now shows the position display
In the quick access menu, select the magnification that is set
on the measuring machine
Select Alignment in the geometry palette
Select Auto OED in the tool palette
Cross over the reference edge multiple times with the OED
sensor
A new feature is displayed in the feature list
A new measuring point is added for each pass over the
reference edge
Distribute the measuring points along the entire
length of the edge. This minimizes the angular error.
Tap Finish in the new feature
The alignment is displayed in the feature list
The measurement result preview is now displayed

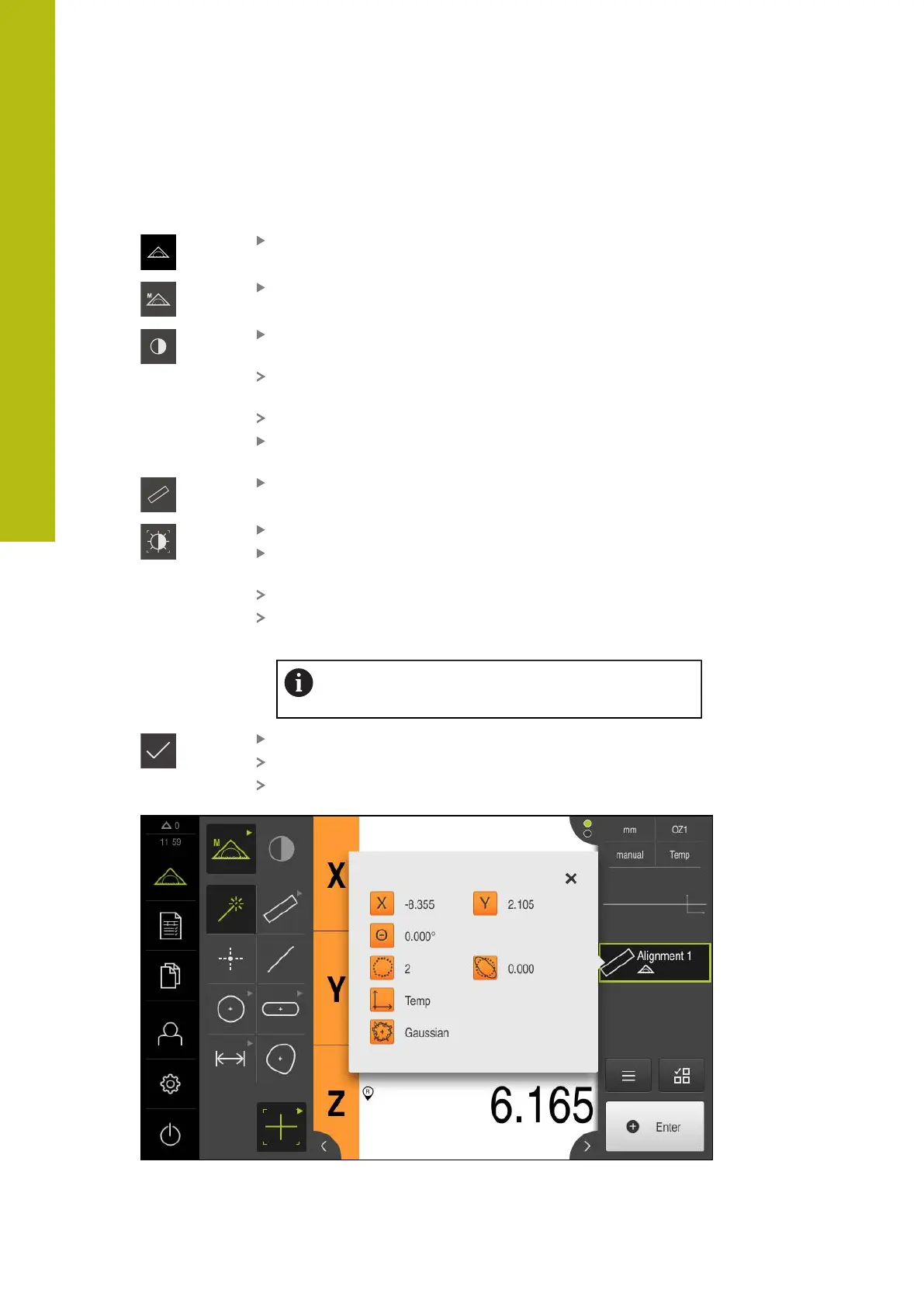

Figure 42: Alignment feature in the feature list with Measurement result preview
192
HEIDENHAIN | QUADRA-CHEK 2000 | Operating Instructions | 07/2019
