HEIDENHAIN QUADRA-CHEK 2000 User Manual

Installation | Device overview
5
Rear panel without dust protection caps
AC 100 V ... 240 V
50 Hz ... 60 Hz
(max. 38 W)
HEIDENHAIN
X113
X3
X108
X107
X2
X1
X116
X100
X32
21
3
4
5
67
8

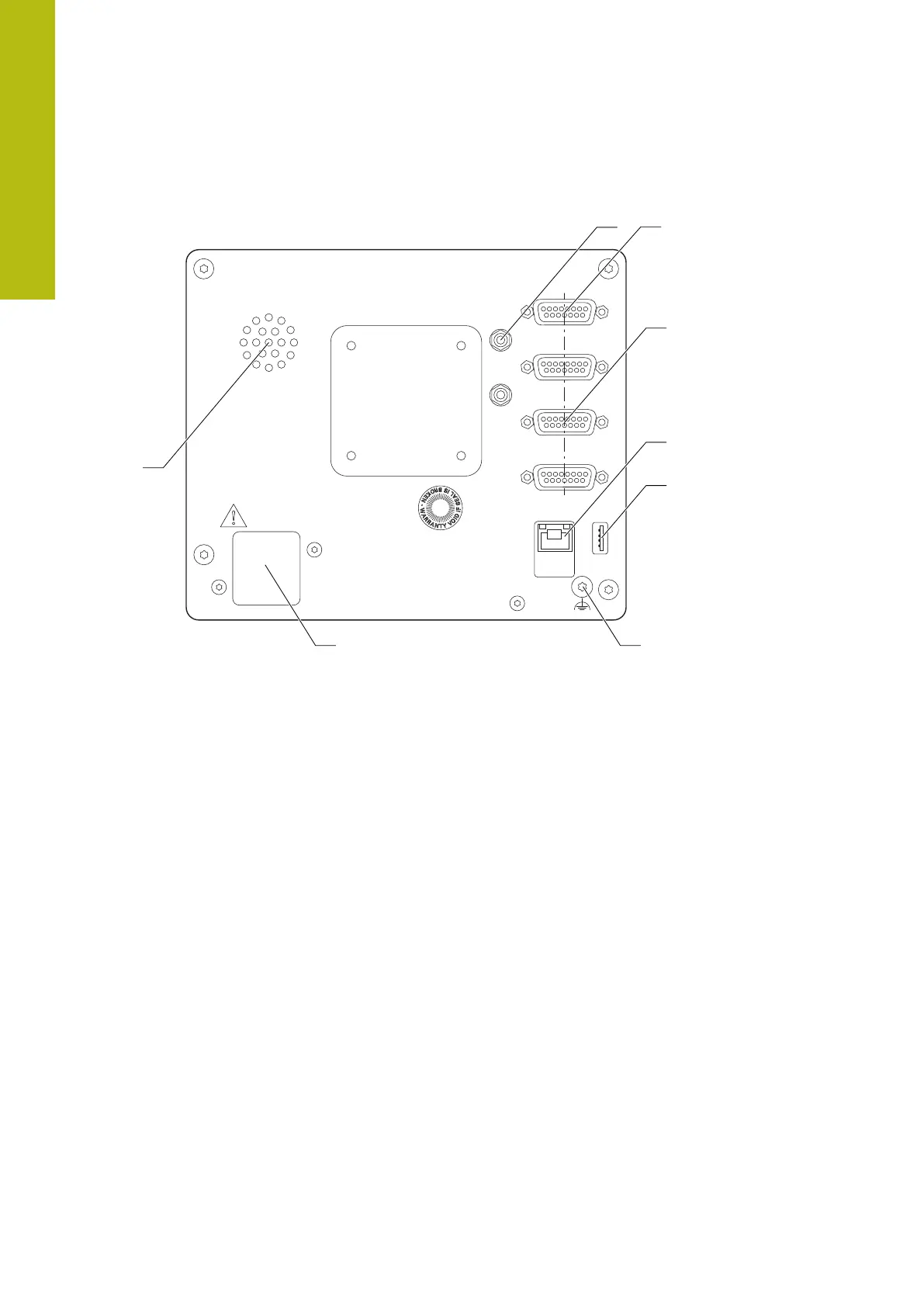

Figure 8: Rear panel
Connections that are independent of software options:
2 X113: 15-pin D-sub connection, e.g. for foot switches or touch probes
D-sub connections for encoders, 2 inputs enabled by default, one other input
can be enabled optionally
X1 to X3: device variant with 15-pin D-sub connections for encoders with
1 V
PP
, 11 μA
PP
or EnDat 2.2 interface
X21 to X23: Device variant with 9-pin D-sub connections for encoders with a
TTL interface
3
X1, X2, X21: Device variant with two 15-pin D-sub connections for encoders
with 1 V
PP
interface and one 9-pin D-sub connection for encoders with
TTL interface
RJ45 Ethernet connection4
X116: Connection for communication and data exchange with subsequent
systems or PC
USB connection5
X32: USB 2.0 Hi-speed connection (type A) for printers, input devices or USB
mass storage devices
6 Functional ground connection as per IEC/EN 60204-1
7 X100: Power switch and power connection
8 Speaker
Connections that depend on software options:
Connections for optical edge detector for point measurement
X107: reference input for optical waveguide from the light source
1
X108: input for optical waveguide from the projection screen
48
HEIDENHAIN | QUADRA-CHEK 2000 | Operating Instructions | 07/2019
