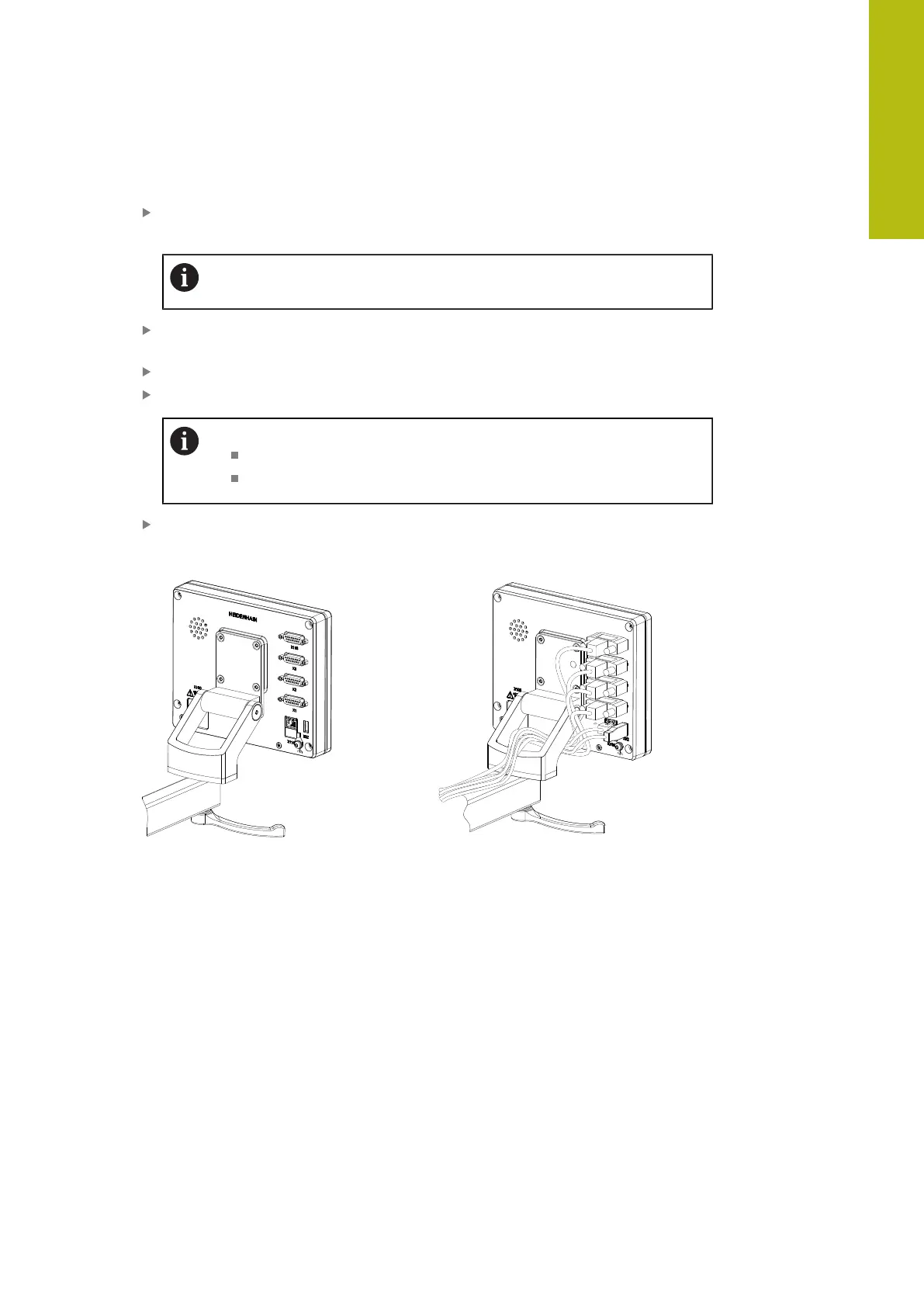

4.2.2 Mounting on Multi-Pos holder
Use the provided M4 x 8 ISO 14581 countersunk head screws (black) to fasten
the holder to the threaded holes on the rear panel
Comply with the permissible tightening torque of 2.6 Nm
Mount the holder with the supplied M8 screw, the washers, the handle and the
M8 hexagon nut to an arm
Adjust the desired angle of inclination
To fix the holder in place: Tighten the T25 screw
Comply with the tightening torque for screw T25
Recommended tightening torque: 5.0 Nm
Maximum permissible tightening torque: 15.0 Nm
Route the cable from behind through the two supports of the holder and then
through the lateral openings to the connections
Figure 6: Product mounted on Multi-Pos
holder
Figure 7: Cable routing on Multi-Pos
holder
Further information: "Product dimensions with Multi-Pos holder", Page 412
