9.4 Displaying and editing the measurement results
Each measured feature can be evaluated and edited in the Details dialog.
To open the Details dialog, drag the corresponding feature from the feature list
into the workspace
Short description
1
2
3
4
9
5
7
8
6

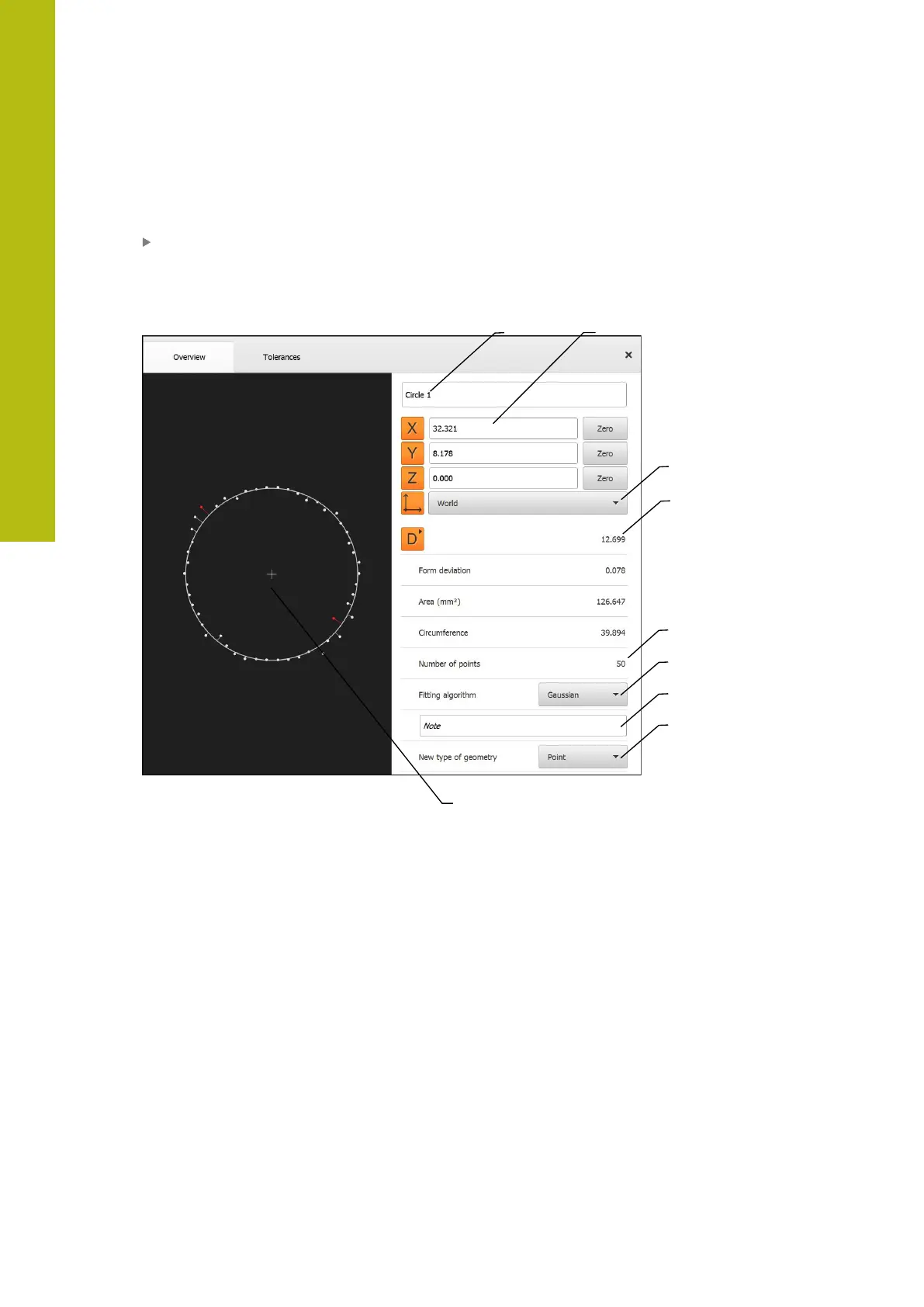

Figure 49: Overview tab in the Details dialog
1
Name of the feature
2
Axis positions of the center point
3
Coordinate system referenced by the coordinate values of the feature
4
Feature parameter, depending on the geometry type: For the circle geometry
type, it is possible to toggle between radius and diameter
5
Number of measuring points used for calculating the feature
6
Fitting algorithm used for calculating the feature; depends on the geometry and
the number of measuring points
7
Note text field; if annotations are active, its contents will be shown in the
features view
8
List of geometry types to which the feature can be converted
9
View of the measuring points and the shape
