HEIDENHAIN QUADRA-CHEK 2000 User Manual

Measurement evaluation | Defining tolerances
11
Setting the tolerance zone manually

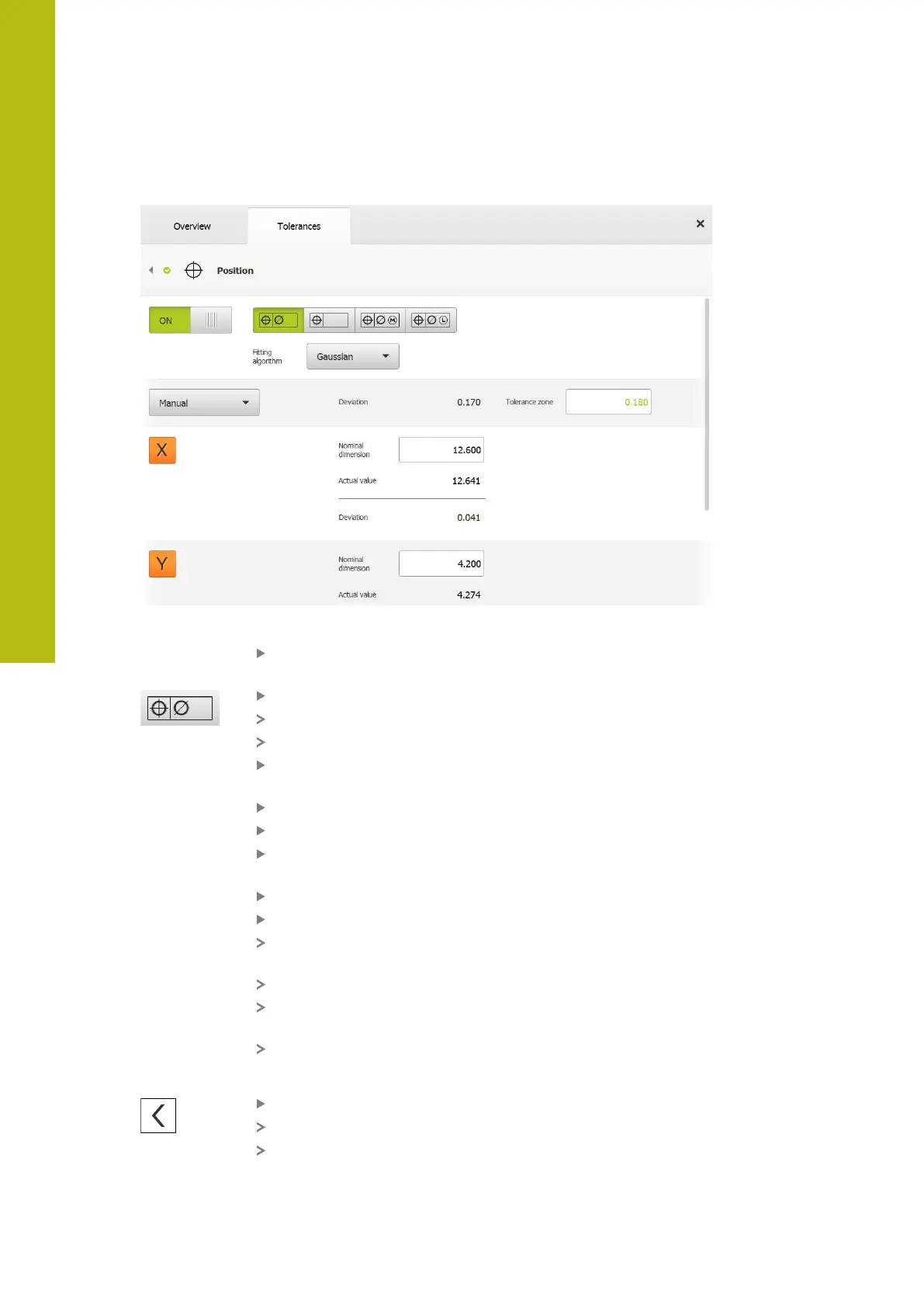

Figure 74: Location tolerances overview with activated Position tolerance
Select the fitting algorithm for tolerancing from the Fitting
algorithm drop-down list
Tap Circular tolerance zone
The tolerance zone is displayed
The nominal and actual dimensions are displayed
To enter the nominal dimension for X, tap the Nominal
dimension input field
Enter the desired value
Confirm entry with RET
To enter the nominal dimension for Y, tap the Nominal
dimension input field
Enter the desired value
Confirm entry with RET
The tolerance zone is updated according to the entered
nominal values
The deviation is now updated
The value of the tolerance zone is shown in green if the
deviation is within the tolerance zone
The value of the tolerance zone is shown in red if the
deviation is outside the tolerance zone
Tap Back
The Tolerances tab is displayed
The results of the tolerance check are shown on the
Tolerances tab and, after the dialog has been closed, are
displayed in the feature list
298
HEIDENHAIN | QUADRA-CHEK 2000 | Operating Instructions | 07/2019

HEIDENHAIN QUADRA-CHEK 2000 Specifications

General

Resolution	0.1 µm
Input Voltage	100-240 V AC
Display	Color touchscreen
Measurement Range	200 mm
Interfaces	USB, Ethernet
Power Supply	50 to 60 Hz
Weight	6 kg

Summary

Safety

General safety precautions

General safety rules and precautions for operating electrical equipment.

Intended use

Defines the product's intended use in commercial and industrial metrology applications.

Personnel qualification

Basic operation

QUADRA-CHEK 2000 – switch-on and switch-off

User login and logout

Commissioning

Steps for commissioning

Detailed breakdown of commissioning steps including basic settings and axis configuration.

Setup

Single steps for setup

Step-by-step guide for basic settings, sensor configuration, and application setup.

Quick Start

Displaying and editing the measurement results

Measuring

Acquiring measuring points

Conducting a measurement

Step-by-step guide for measurements, including object alignment and feature acquisition.

Measurement evaluation

Defining tolerances

Describes available tolerances and how to configure and activate them for features.

Programming

Settings

Sensors

Features

Service and maintenance

Updating the firmware

Procedures for importing new versions of the product's operating system.

What to do if ...

System or power failure

Actions to take in case of system or power failures, including firmware restoration.

Troubleshooting

Guidance on handling faults not covered in the troubleshooting table.
