9.4.3 Converting a feature
The feature can be converted to a different type of geometry. The list of possible
geometry types is provided as a drop-down list in the Details dialog.
Drag a feature (e.g., the Slot) from the feature list into the
workspace
The Details dialog appears with the Overview tab selected
The geometry type of the feature is displayed
In the New type of geometry drop-down list, select the type
of geometry, for example Point
The 2-D profile geometry type is currently not yet
supported.
The feature is displayed in the new form

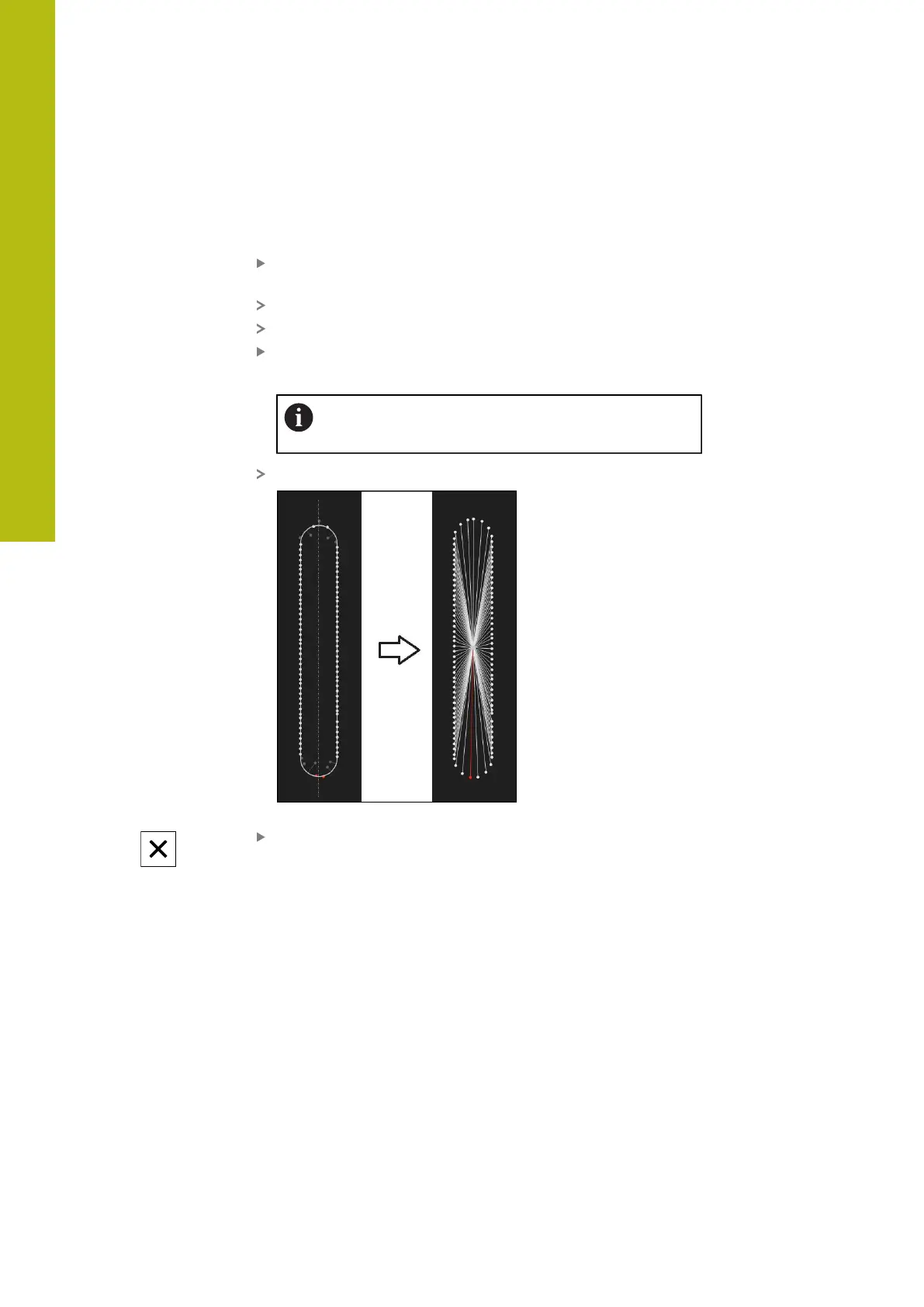

Figure 51: Type of geometry changed from Slot to Point
Tap Close to close the dialog
