Measurement evaluation | Measurement evaluation
Converting a feature
The feature can be converted to a different type of geometry. The list of possible
geometry types is provided as a drop-down list in the Details dialog.
Drag a feature (e.g., the Slot) from the feature list into the
workspace
The Details dialog appears with the Overview tab selected
The geometry type of the feature is displayed
In the New type of geometry drop-down list, select the type
of geometry, for example Point
The 2-D profile geometry type is currently not yet
supported.
The feature is displayed in the new form

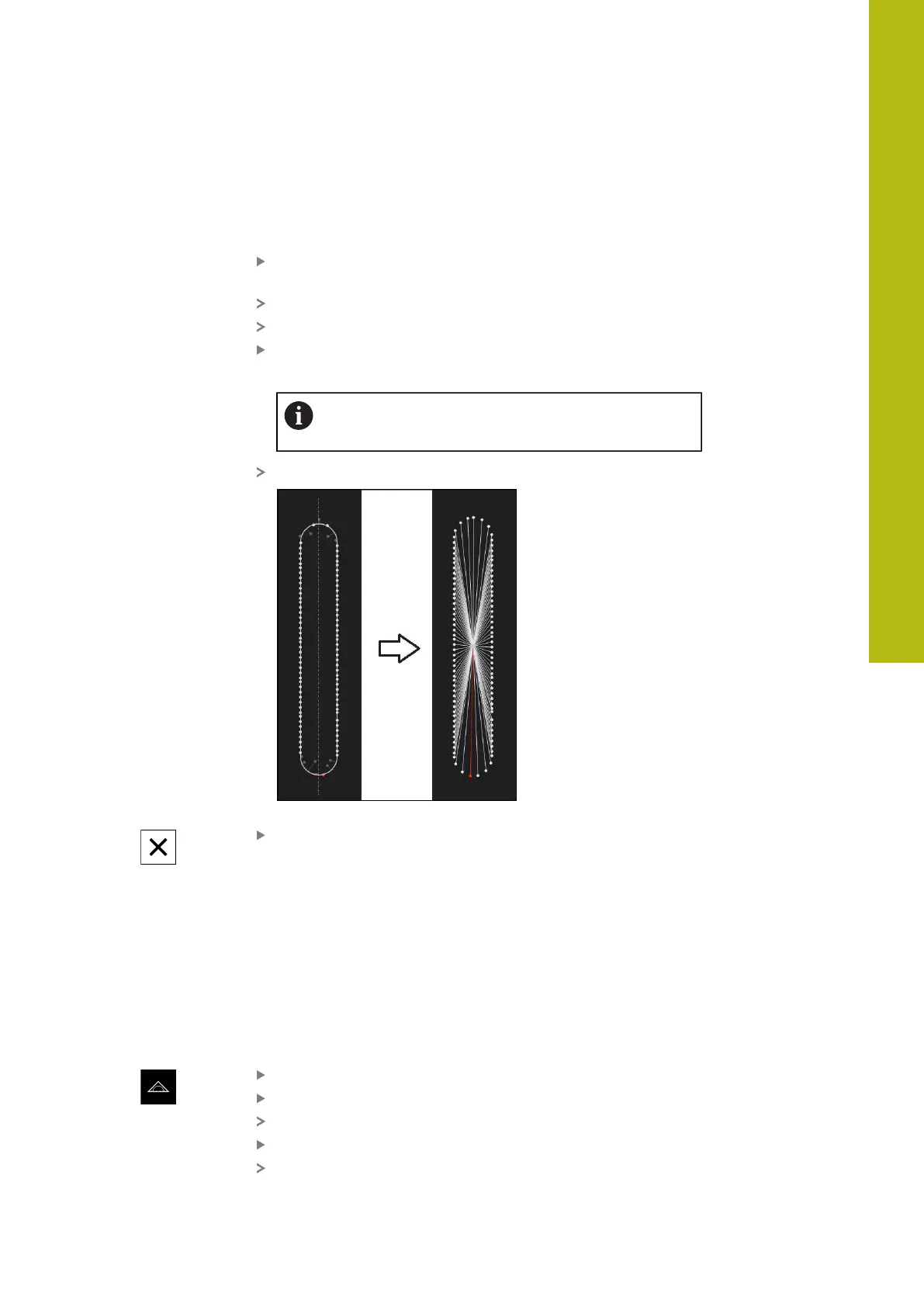

Figure 67: Type of geometry changed from Slot to Point
Tap Close to close the dialog
11.3 Defining tolerances
This section describes which tolerances are available on the unit and how
tolerances can be configured and activated. The activation and configuration of
tolerances will be performed using the measured and constructed features in the
“Quick Start” chapter as examples.
Activation
Tap Measure in the main menu
Drag the feature from the feature list into the workspace
The Details dialog appears with the Overview tab selected
Tap the Tolerances tab
The tab for tolerancing the selected feature is displayed
11
HEIDENHAIN | QUADRA-CHEK 2000 | Operating Instructions | 07/2019
281
