FRAME/BODY PANELS/EXHAUST SYSTEM

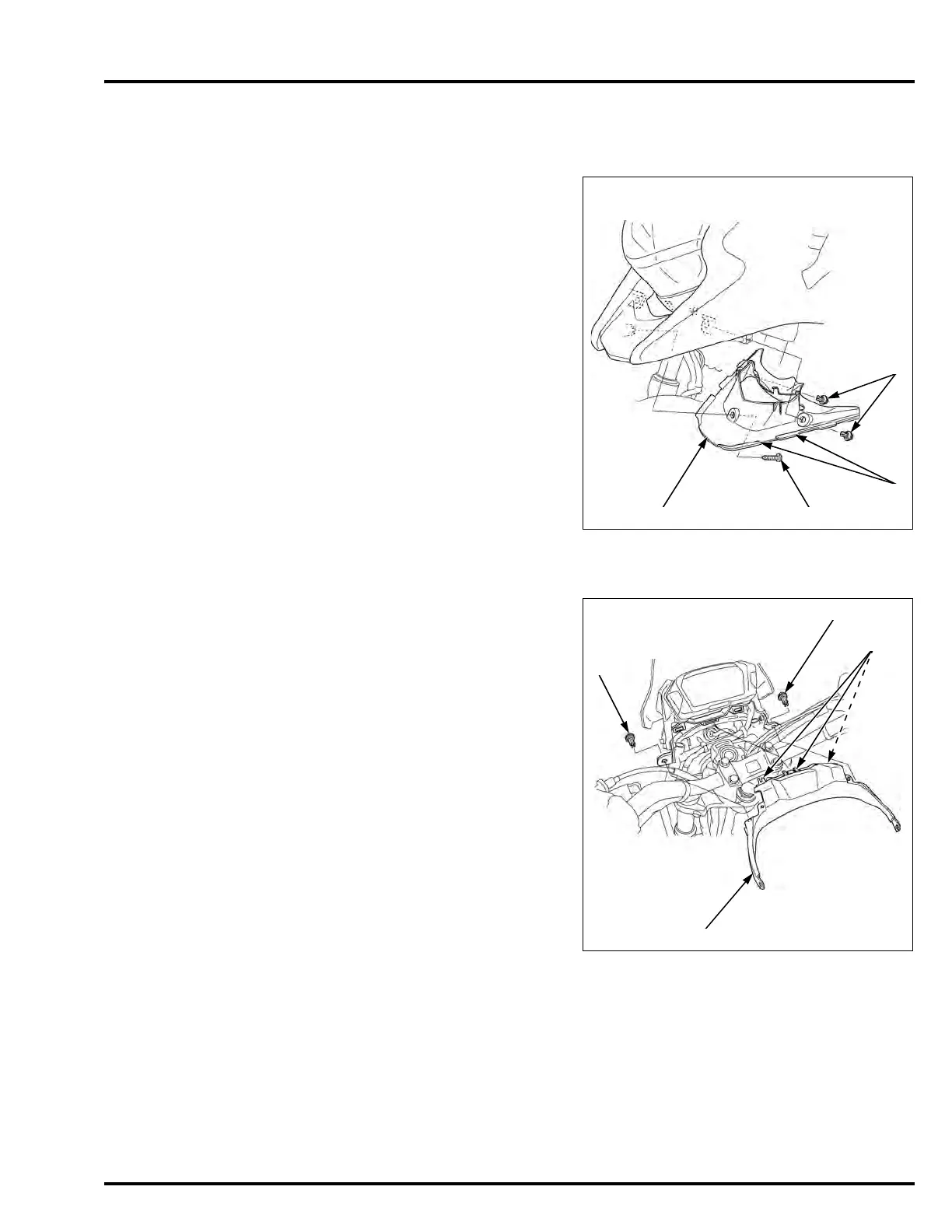

FRONT UNDER COVER (NC700X/XA/

XD)

REMOVAL/INSTALLATION

Remove the trim clips [1] and screw [2].

Release the tabs [3] and remove the front under cover

[4].

Installation is in the reverse order of removal.

INNER UPPER COVER (NC700X/XA/XD)

REMOVAL/INSTALLATION

Remove the front side cowl (page 2-24).

Remove the trim clips [1].

Release the tabs [2] and remove the inner upper cover

[3].

Installation is in the reverse order of removal.

[1]

[2]

[3]

[4]

[1]

[3]

[1]

[2]
