4-14
dummyheaddummyhead
PGM-FI SYSTEM

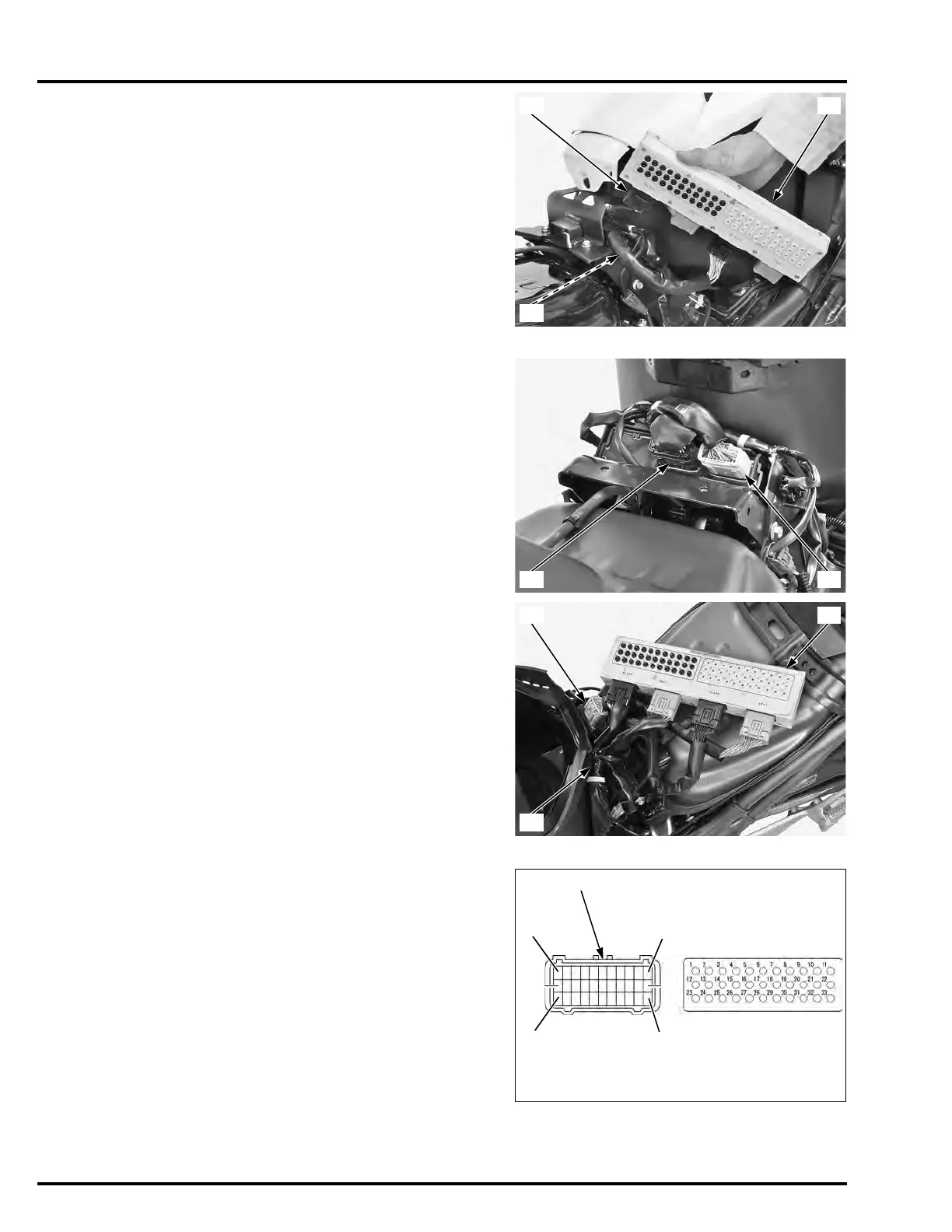

Connect the ECM test harness [1] between the main wire harness [2] and
ECM [3].
TEST HARNESS CONNECTION (NC700XD/SD)
Remove the luggage box lid/hinge assembly (page 2-19).
Turn the ignition switch OFF.
Disconnect the PCM 33P (Black) connector [1] and PCM 33P (Gray)
connector [2].
Connect the ECM test harness [1] between the main wire harness [2] and
PCM [3].
TEST HARNESS TERMINAL LAYOUT
The ECM/PCM 33P connector [1] terminals are numbered as shown in this
illustration.
The ECM test harness terminals are same layout as for the ECM/PCM 33P
connector terminals as shown.
TOOL:
ECM test harness 33P 070MZ-MCA0100
[1][2]
[3]
[2][1]
TOOL:
ECM test harness 33P 070MZ-MCA0100
[1][3]
[2]
12
22
11
33
23
1
[1]
