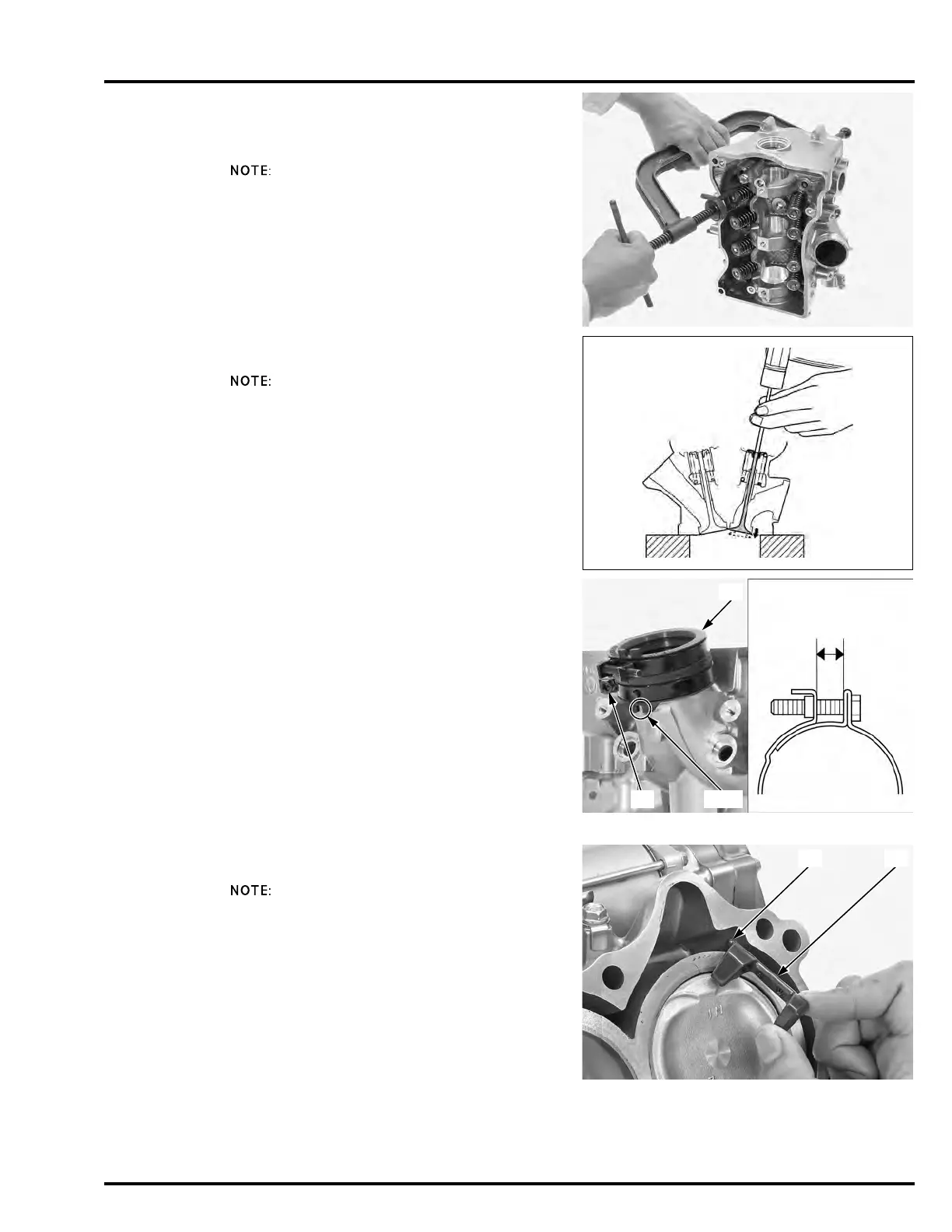

CYLINDER HEAD/VALVES
Install the valve cotters using the special tool as shown.
• To prevent loss of tension, do not compress the
valve spring more than necessary.
• Grease the cotters to ease installation.
Tap the valve stems gently with plastic hammer and
shaft as shown to seat the cotters firmly.
Support the cylinder head above the work bench
surface to prevent possible valve damage.
Install the insulator [1] while aligning its slit with cylinder
head tab.
Tighten the band screw [2] to the specified range.
Install the following:
– Camshaft (page 10-15)
– Injector (page 7-21)
– Spark plug (page 3-8)
– Cylinder head (page 10-25)
INSTALLATION
Install the partition plate [1] to the No.1 cylinder intake
side.
Install the partition plate with its tab [2] side facing
inside.
TOOL:
Valve spring compressor 07757-0010000
[1]
Align[2]
11 – 13 mm
(0.4 – 0.5 in)
[1][2]

Honda NC700 2012 Specifications

General

Engine Type	670cc liquid-cooled parallel-twin
Bore x Stroke	73.0mm x 80.0mm
Compression Ratio	10.7:1
Front Brake	Single 320mm disc with two-piston caliper
Rear Brake	Single 240mm disc with single-piston caliper
Fuel Capacity	3.7 gallons
Fuel System	PGM-FI
Transmission	6-speed
Front Suspension	41mm telescopic fork
Rear Suspension	Pro-Link single shock
Front Tire	120/70-17
Rear Tire	160/60-17
Wheelbase	60.6 inches
Curb Weight	472 pounds
