CRANKCASE/TRANSMISSION/BALANCER
SHIFT DRUM/SHIFT FORK

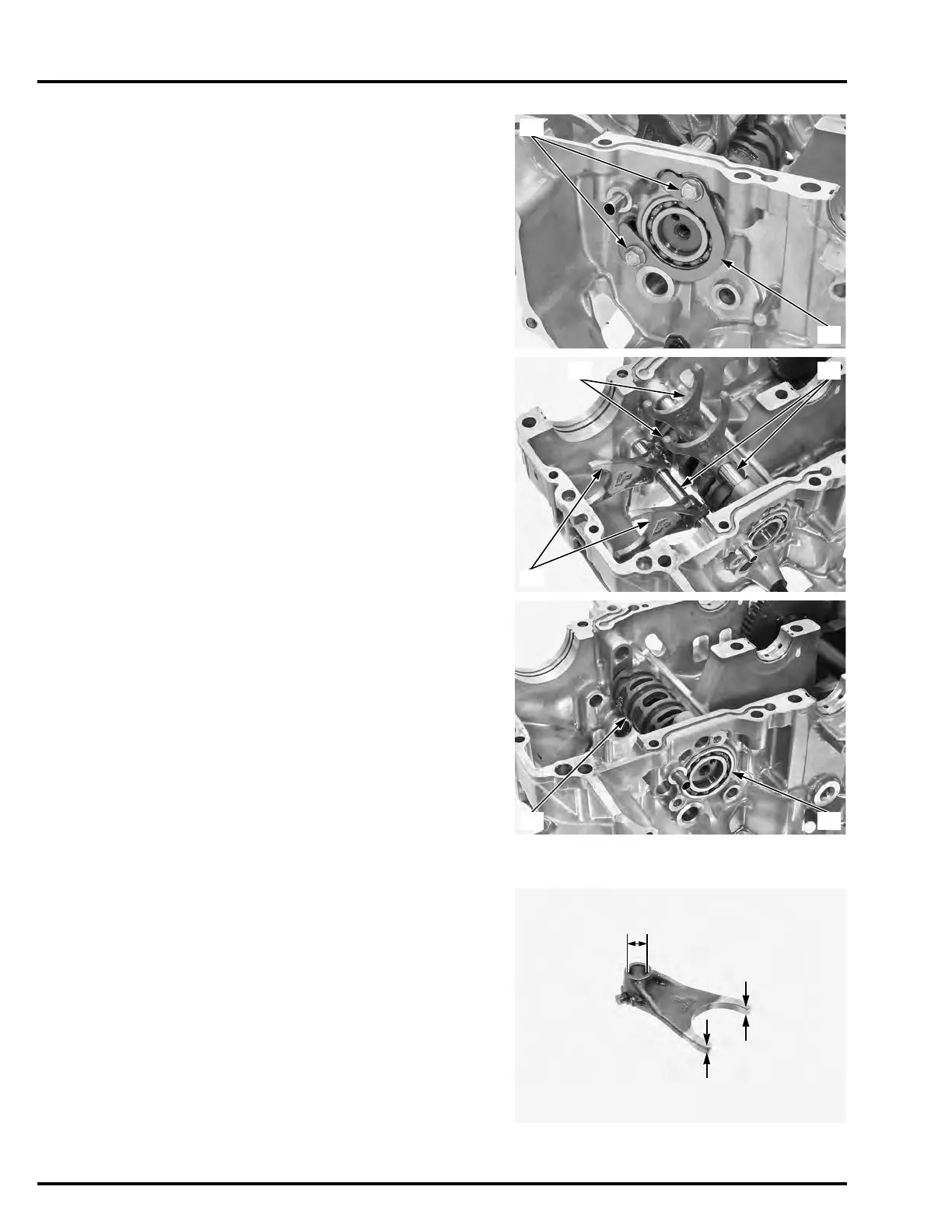

Remove the shift drum bearing set plate bolts [1] and
set plate [2].
Remove the fork shafts [1] and shift forks [2].
Remove the shift drum [1] and shift drum bearing [2].
INSPECTION
SHIFT DRUM/SHIFT FORK
Check the shift fork guide pin for abnormal wear or
damage.
Measure the shift fork I.D.
Measure the shift fork claw thickness.
[1]
[2]
[2]
[1][2]
[1] [2]
SERVICE LIMIT: 12.03 mm (0.474 in)
SERVICE LIMIT: 5.9 mm (0.23 in)

Honda NC700 2012 Specifications

General

Engine Type	670cc liquid-cooled parallel-twin
Bore x Stroke	73.0mm x 80.0mm
Compression Ratio	10.7:1
Front Brake	Single 320mm disc with two-piston caliper
Rear Brake	Single 240mm disc with single-piston caliper
Fuel Capacity	3.7 gallons
Fuel System	PGM-FI
Transmission	6-speed
Front Suspension	41mm telescopic fork
Rear Suspension	Pro-Link single shock
Front Tire	120/70-17
Rear Tire	160/60-17
Wheelbase	60.6 inches
Curb Weight	472 pounds
