4-37
dummyheaddummyhead
PGM-FI SYSTEM
DTC 33-2 (EEPROM)
• If the ECM/PCM is replaced, perform the following:
– Key Registration Procedure (page 23-6)
– Clutch Initialize Learning Procedure (NC700XD/
SD) (page 12-120)
1. Recheck DTC
Erase the DTCs (page 4-13).
Turn the ignition switch ON and engine stop switch
"".
Recheck the ECM EEPROM.
Is the DTC 33-2 indicated?
YES – Replace the ECM/PCM with a known good
one, and recheck.
NO – Intermittent failure
DTC 54-1 (BANK ANGLE SENSOR
LOW VOLTAGE)
• If the ECM/PCM is replaced, perform the following:
– Key Registration Procedure (page 23-6)
– Clutch Initialize Learning Procedure (NC700XD/
SD) (page 12-120)
1. Recheck DTC
Erase the DTCs (page 4-13).
Turn the ignition switch ON and engine stop switch
"".
Check the bank angle sensor with the HDS pocket
tester.
Is about 0 V indicated?
YES – GO TO STEP 2.
NO – Intermittent failure
2. Bank Angle Sensor Power Input Line Short
Circuit Inspection
Turn the ignition switch OFF.
Disconnect the bank angle sensor 2P (Black)
connector [1].

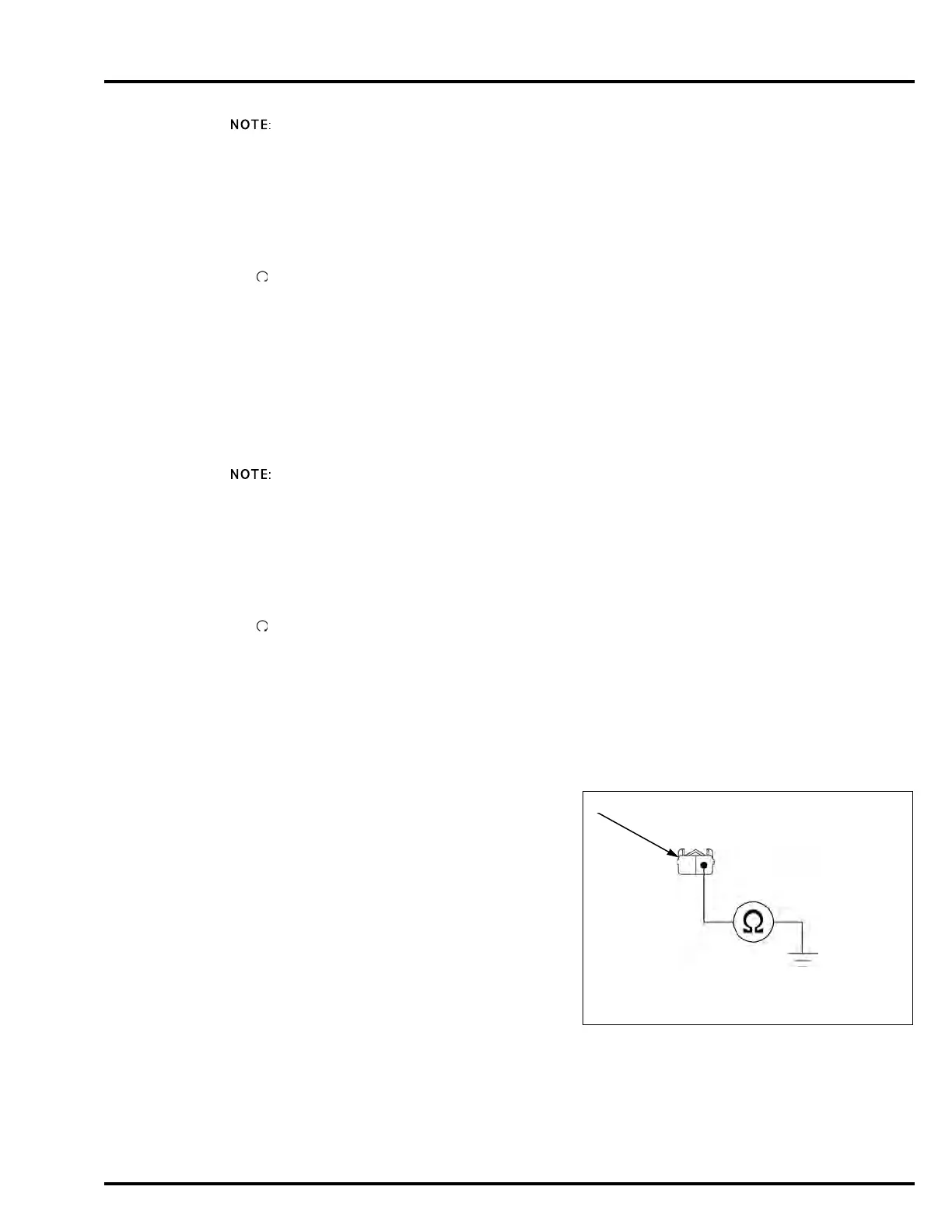

Check for continuity between the bank angle sensor
2P (Black) connector of the wire harness side and
ground.
Is there continuity?
YES – GO TO STEP 3.
NO – Short circuit in the Black/white wire
Connection: Black/white – Ground
To Next Page
