Honda NC700 2012 User Manual

7-22
dummyheaddummyhead

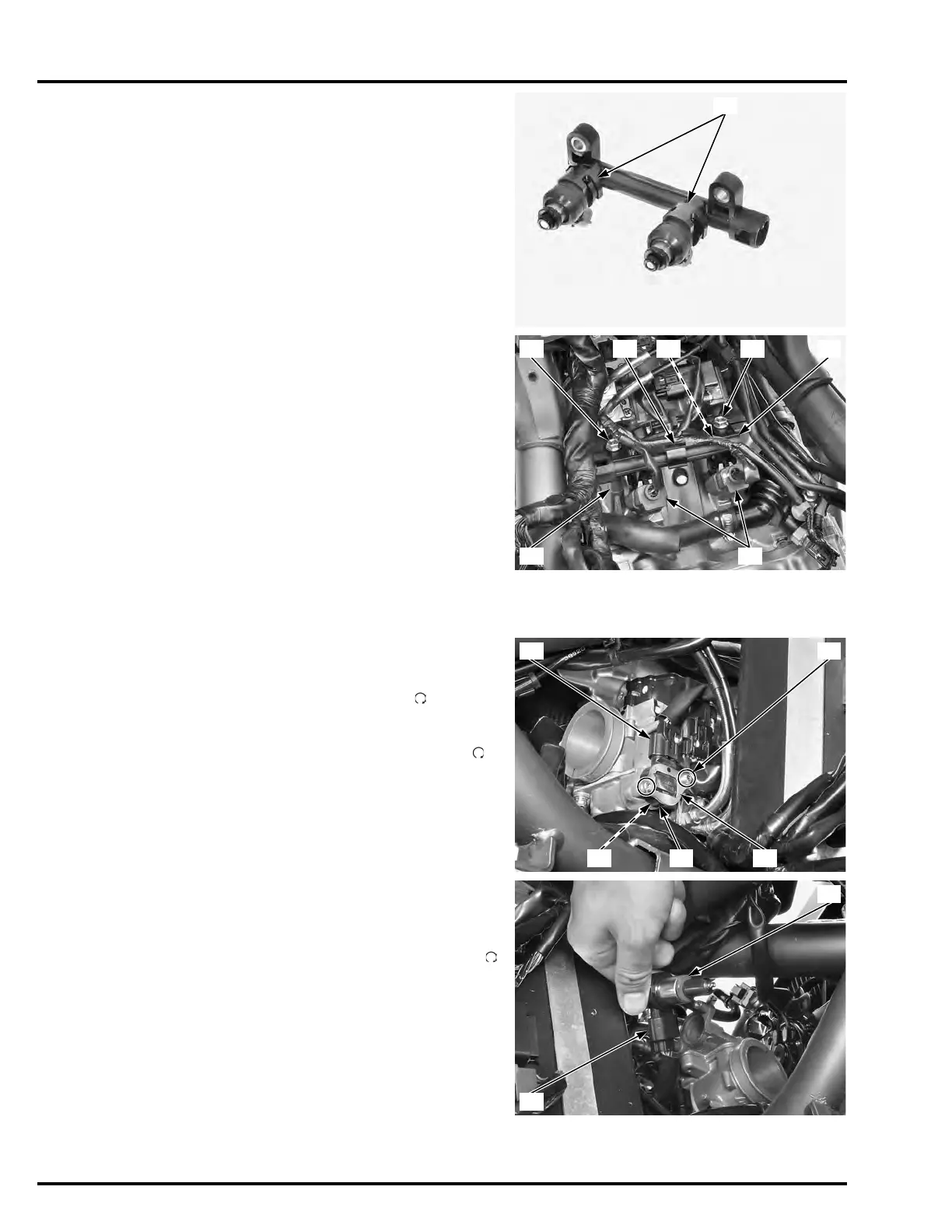

FUEL SYSTEM
Install the retainers [1] to the injector/fuel rail.
Install the injector assembly [1], bolts [2] and collars [3].
Tighten the fuel rail mounting bolts securely.
Connect the injector 2P (Gray) connectors [4] while
aligning their grooves with the fuel rail tabs.
Install the clip [5] to the fuel rail.
Install the battery box (page 2-31).
Connect the quick connect fitting to the injector side
(page 7-5).
IACV
REMOVAL/INSPECTION
Remove the air cleaner housing (page 7-14).
The IACV is installed on the throttle body and is
operated by the step motor. When the ignition switch is
turned ON and engine stop switch " ", the IACV
operates for a few seconds.
Check the step motor operating (beep) sound with the
ignition switch turned ON and engine stop switch " ".
Disconnect the IACV 4P (Black) connector [1].
Remove the IACV setting plate torx screws [2] and
setting plate [3].
Remove the IACV [4] and O-ring [5].
Check the IACV [1] for wear or damage.
The IACV operation can be checked visually as follows:
1. Connect the IACV 4P (Black) connector [2].
2. Turn ignition switch ON and engine stop switch " ",
check the IACV operation.
Disconnect the IACV 4P (Black) connector.
[1]
[3]
[2] [1][5] [3] [2]
[4]
[1]
[4][5]
[2]
[3]
[2]
[1]

Honda NC700 2012 Specifications

General

Engine Type	670cc liquid-cooled parallel-twin
Bore x Stroke	73.0mm x 80.0mm
Compression Ratio	10.7:1
Front Brake	Single 320mm disc with two-piston caliper
Rear Brake	Single 240mm disc with single-piston caliper
Fuel Capacity	3.7 gallons
Fuel System	PGM-FI
Transmission	6-speed
Front Suspension	41mm telescopic fork
Rear Suspension	Pro-Link single shock
Front Tire	120/70-17
Rear Tire	160/60-17
Wheelbase	60.6 inches
Curb Weight	472 pounds
