7-8
dummyheaddummyhead

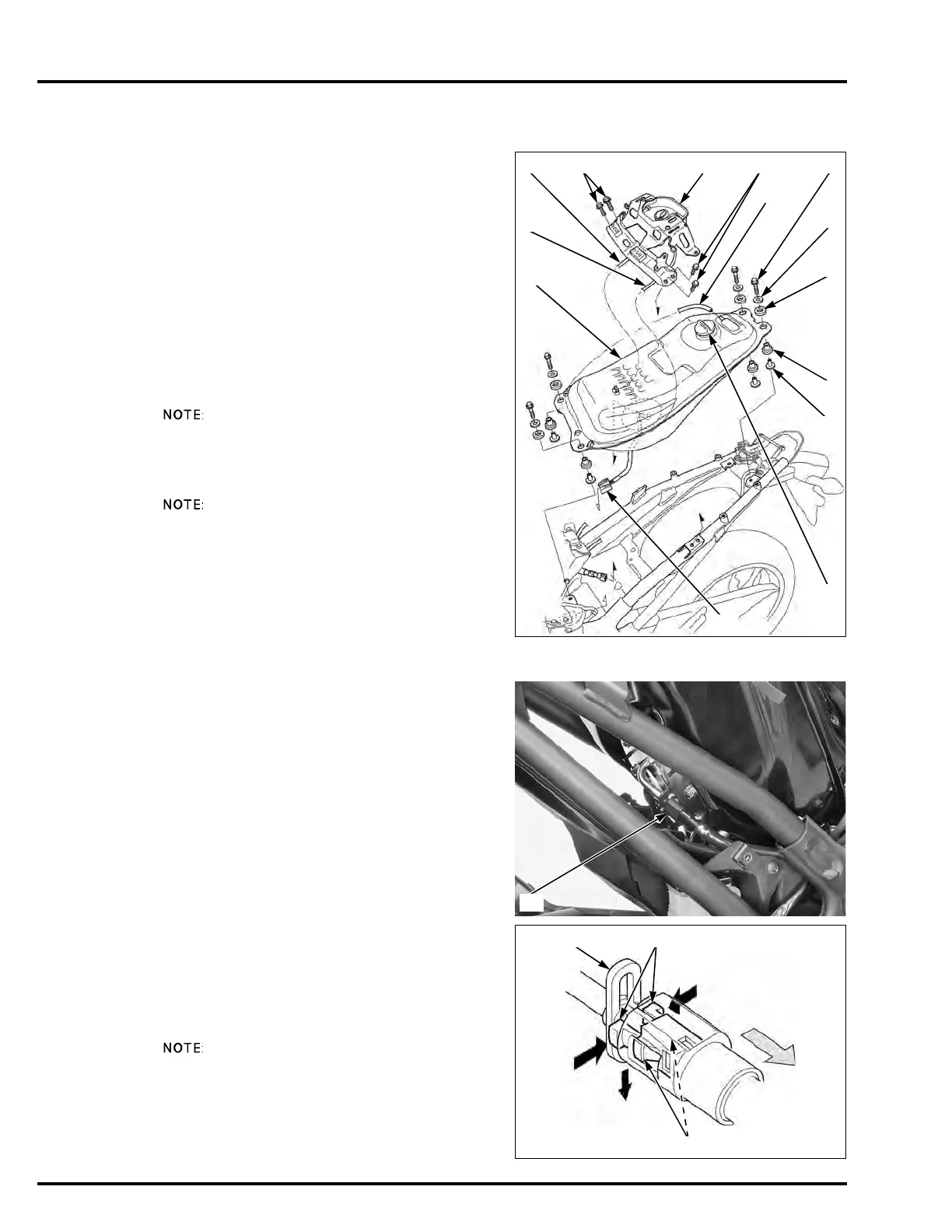

FUEL SYSTEM
FUEL TANK
REMOVAL/INSTALLATION
Relieve the fuel pressure (page 7-4).
Remove the bolts [1], fuel cap [2] and fuel cap tray [3].
Release the following:
Fuel tank drain hose A [4]
Fuel tank breather hose [5]
Seat lock cable [6]
Remove the fuel tank mounting bolts [7], washers [8],
upper mounting rubbers [9], lower mounting rubbers
[10] and collars [11].
Lift the rear end of the fuel tank and disconnect the
following:
Fuel pump unit 3P (Black) connector [12]
Quick connect fitting (page 7-8)
Do not bend or twist fuel feed hose.
Remove the fuel tank [13].
Installation is in the reverse order of removal.
Connect the quick connect fitting (page 7-9).
Route the hose and wire properly (page 1-25).
FUEL PUMP SIDE QUICK CONNECT FITTING
REMOVAL
1. Relieve the fuel pressure (page 7-4).
2. Check the fuel quick connect fitting [1] for dirt, and
clean if necessary.
Place a shop towel over the quick connect fitting.
3. Pull and release the joint rubber [1] from the
retainer.
4. Hold the connector with one hand and squeeze the
retainer tabs [2] with the other hand to release them
from the locking pawls [3].
Pull the connector off and remove the retainer.
Absorb the remaining fuel in the fuel feed hose from
flowing out with a shop towel.
Be careful not to damage the hose or other parts.
Do not use tools.
If the connector does not move, keep the retainer
tabs pressed down, and alternately pull and push
the connector until it comes off easily.
[1] [1][3]
[2]
[4]
[6]
[5]
[7]
[8]
[9]
[10]
[11]
[13]
[12]
[1]
[1]
[3]
[2]
