12-56
dummyheaddummyhead
DUAL CLUTCH TRANSMISSION (DCT) (NC700XD/SD)
2. ABS Problem Code Inspection
Check the ABS problem code (page 20-8).
Does the ABS modulator have any problem
code?
YES Follow the problem code index (page 20-
10).
NO GO TO STEP 3.
3. Front Wheel Speed Sensor Line Open Circuit
Inspection
Turn the ignition switch OFF.
Disconnect the ABS modulator 25P connector and
PCM 33P (Black) connector.
Check for continuity between the ABS modulator
25P connector [1] and PCM 33P (Black) connector
[2] terminals.
Is there continuity?
YES GO TO STEP 4.
NO Open circuit in the Violet/red wire
4. Front Wheel Speed Sensor Line Short Circuit
Inspection
Check for continuity between the wire harness side
PCM 33P (Black) connector [1] and ground.
Is there continuity?
YES Short circuit in the Violet/red wire
NO Replace the PCM with a known good one,
and recheck.
DTC 68-1 (No.1 CLUTCH OPERATION
MALFUNCTION; CLUTCH SLIPS)
If the PCM is replaced, perform the following:
Key Registration Procedure (page 23-6)
Clutch Initialize Learning Procedure (page 12-120)
1. DTC Recheck
Erase the DTCs (page 12-13).
Test-ride the motorcycle above 18 km/h (11 mph).
Stop the engine.
Check the DTC with the HDS pocket tester.
Is DTC 66-1 indicated?
YES Refer to DTC 66-1 troubleshooting (page
12-54).
NO GO TO STEP 2.

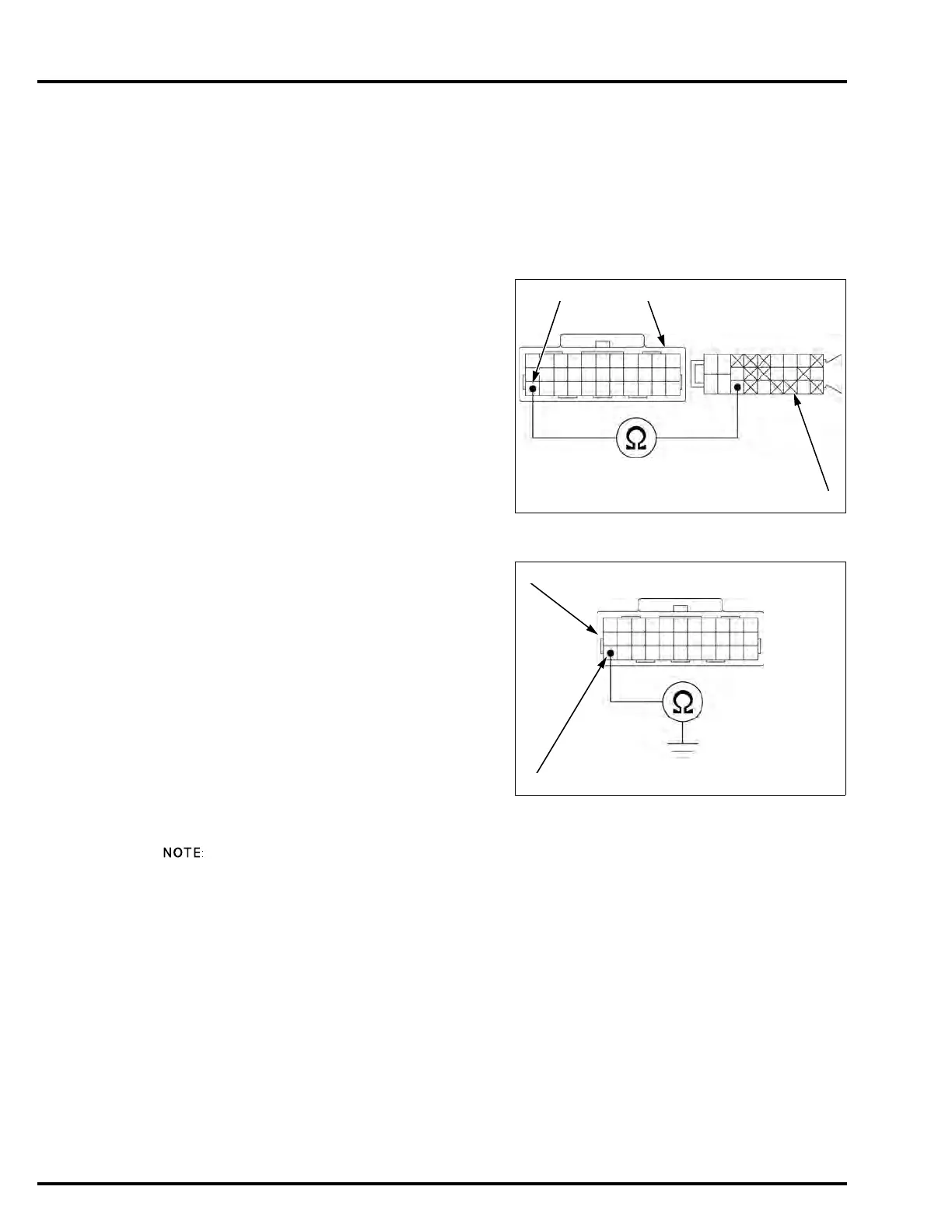

Connection: Violet/red – A33
TOOL:
Test probe 07ZAJ-RDJA110
[2]A33
[1]
V/R
Connection: A33 – Ground
TOOL:
Test probe 07ZAJ-RDJA110
[1]
A33
