FRONT WHEEL/SUSPENSION/STEERING

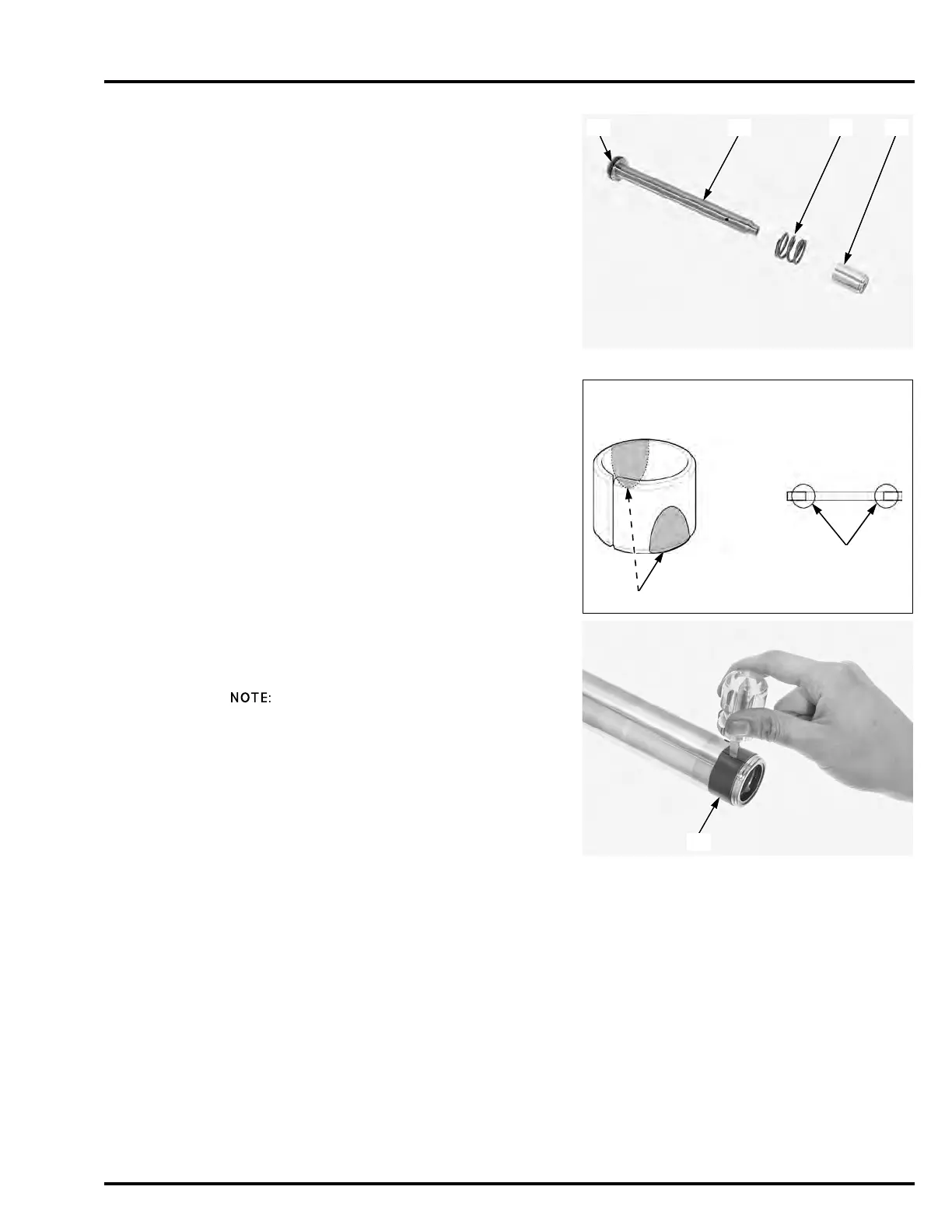

FORK PISTON/REBOUND SPRING/OIL LOCK PIECE
Check the fork piston [1], piston ring [2] and oil lock
piece [3] for wear or damage.
Check the rebound spring [4] for fatigue or damage.
Replace any components that are worn or damage.
GUIDE BUSHING/SLIDER BUSHING/BACK-UP RING
Visually inspect the slider and guide bushings [1].
Replace the bushings if there is excessive scoring or
scratching, or if the teflon is worn so the copper surface
appears [2] on more than 3/4 of the entire surface.
Check the back-up ring [3]; replace it if there is any
distortion at the points shown.
Do not damage the
slider bushing,
especially the
sliding surface. To
prevent loss of
tension, do not
open the bushing
more than
necessary.
If the slider bushing [1] will be removed, carefully
remove the slider bushing by prying the bushing gap
with a screwdriver until the bushing can be pulled off by
hand.
Do not remove the slider bushing, unless it is necessary
to replace with a new one.
[1] [4] [3][2]
[1]
[3]
CHECK POINTS
[2]
[1]
