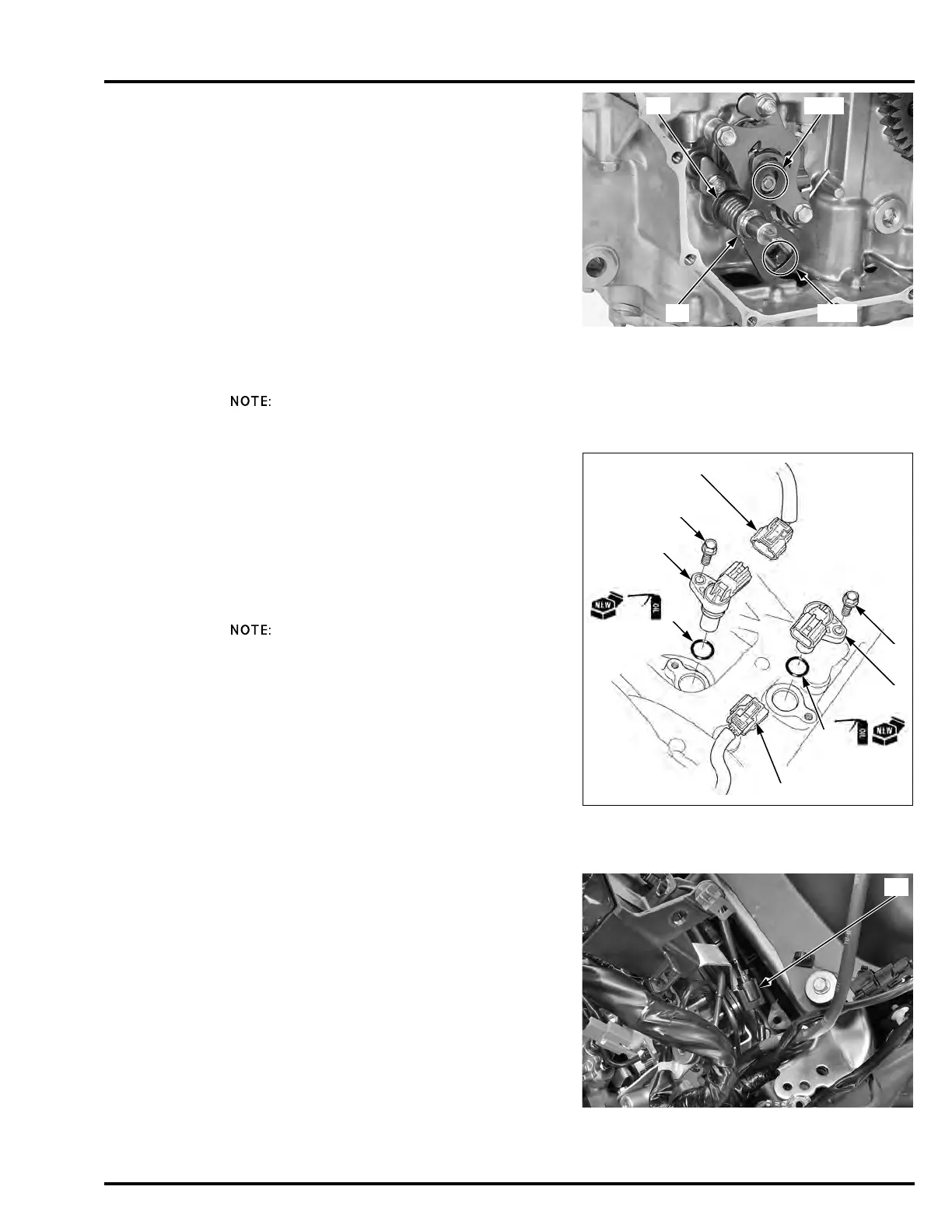

DUAL CLUTCH TRANSMISSION (DCT) (NC700XD/SD)
Install the washer [1] onto the gearshift spindle [2] and
insert the spindle into the crankcase while aligning the
return spring ends with spring pin and the spindle arm
hole with the drum shifter collar.
Install the following:
– Dual clutch (page 12-107)
– Reduction gears/shift control motor (page 12-110)
MAINSHAFT SENSOR
REMOVAL/INSTALLATION
The mainshaft sensors and VS sensor are the same
parts.
Inner mainshaft
sensor:
Remove the luggage box (page 2-19).
Disconnect the outer mainshaft sensor 3P (Black)
connector [1] from the outer mainshaft sensor [2].
Disconnect the inner mainshaft sensor 3P (Black)
connector [3] from the inner mainshaft sensor [4].
Remove the bolt [5] and mainshaft sensor.
Remove the O-ring [6] from the mainshaft sensor.
Installation is in the reverse order of removal.
• Replace the O-ring with a new one.
• Apply engine oil to a new O-ring.
TR SENSOR
REMOVAL/INSTALLATION
Remove the following:
– Center cross plate (page 2-32)
– Left rear cover (page 2-30)
Disconnect the TR sensor 3P (Black) connector [1] and
remove it from the ABS modulator stay.
Align
Align
[1]
[2]
[2]
[5]
[6]
[6]
[5]
[1]
[4]
[3]
[1]
