11-5
dummyheaddummyhead

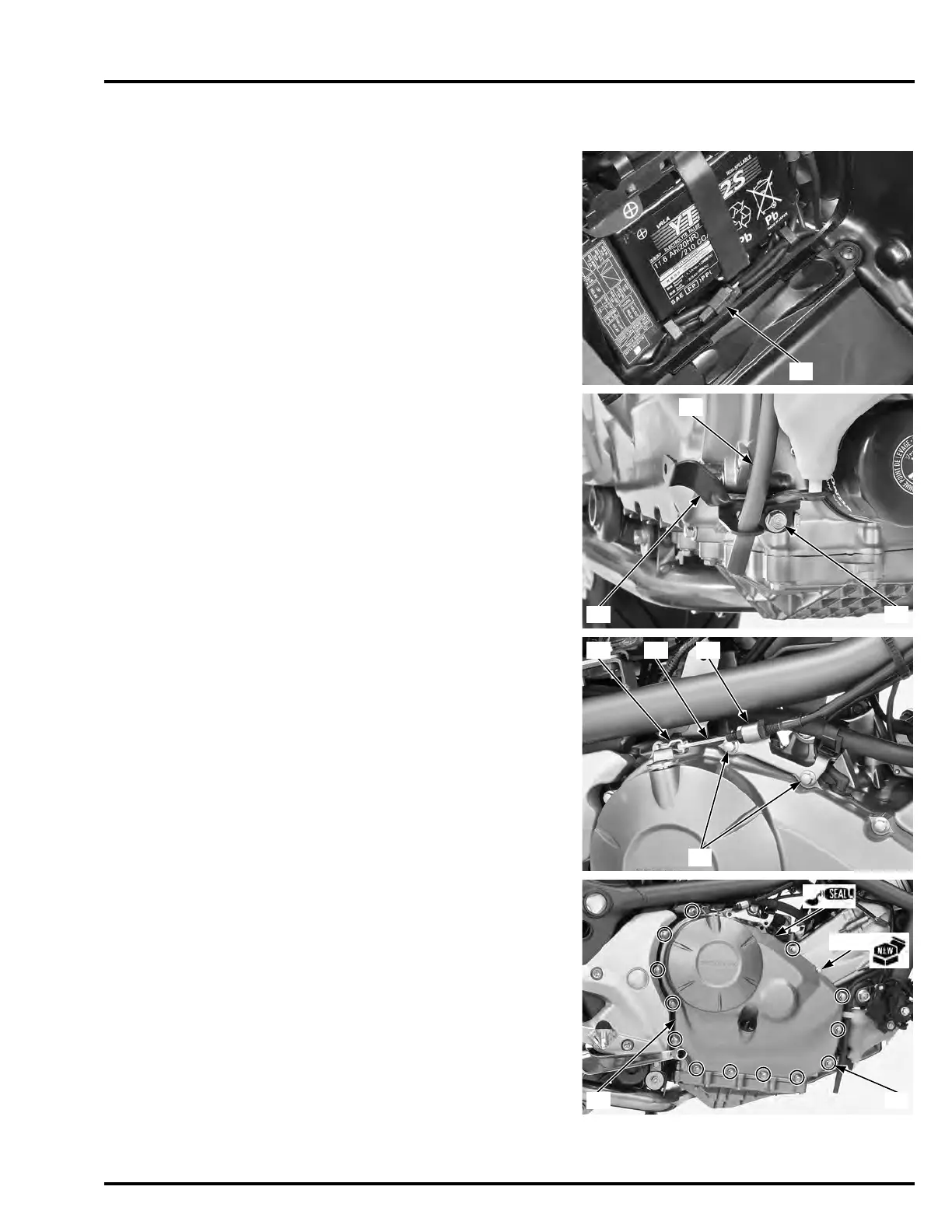

CLUTCH/GEARSHIFT LINKAGE (NC700X/XA/S/SA)
RIGHT CRANKCASE COVER
REMOVAL/INSTALLATION
Remove the following:
Right shroud/side cover (NC700X/XA) (page 2-14)
Maintenance lid (page 21-6)
Drain the engine oil (page 3-13).
Disconnect the CKP sensor 2P (Red) connector [1] and
release the CKP sensor harness.
Release the reserve tank overflow hose [1] from the
stay [2].
Remove the bolt [3] and stay.
Remove the bolts [1] and clutch cable guide [2], then
disconnect the clutch cable [3] from the clutch lifter arm
[4].
Loosen the right crankcase cover bolts [1] in a
crisscross pattern in 2 or 3 steps, and remove the bolts
and sealing washer [2].
Remove the right crankcase cover [3].
[1]
[3][2]
[1]
[3]
[1]
[2][4]
[1][3]
[1]/[2]
