14-22
dummyheaddummyhead
CRANKCASE/TRANSMISSION/BALANCER
TRANSMISSION ASSEMBLY
Clean all parts in solvent, and dry them thoroughly.
Apply engine oil to the gear teeth, rotating surface and
bearing.
Apply molybdenum oil solution to the spline bushing
outer surfaces, bushing inner and outer surfaces, and
gear shifter grooves.

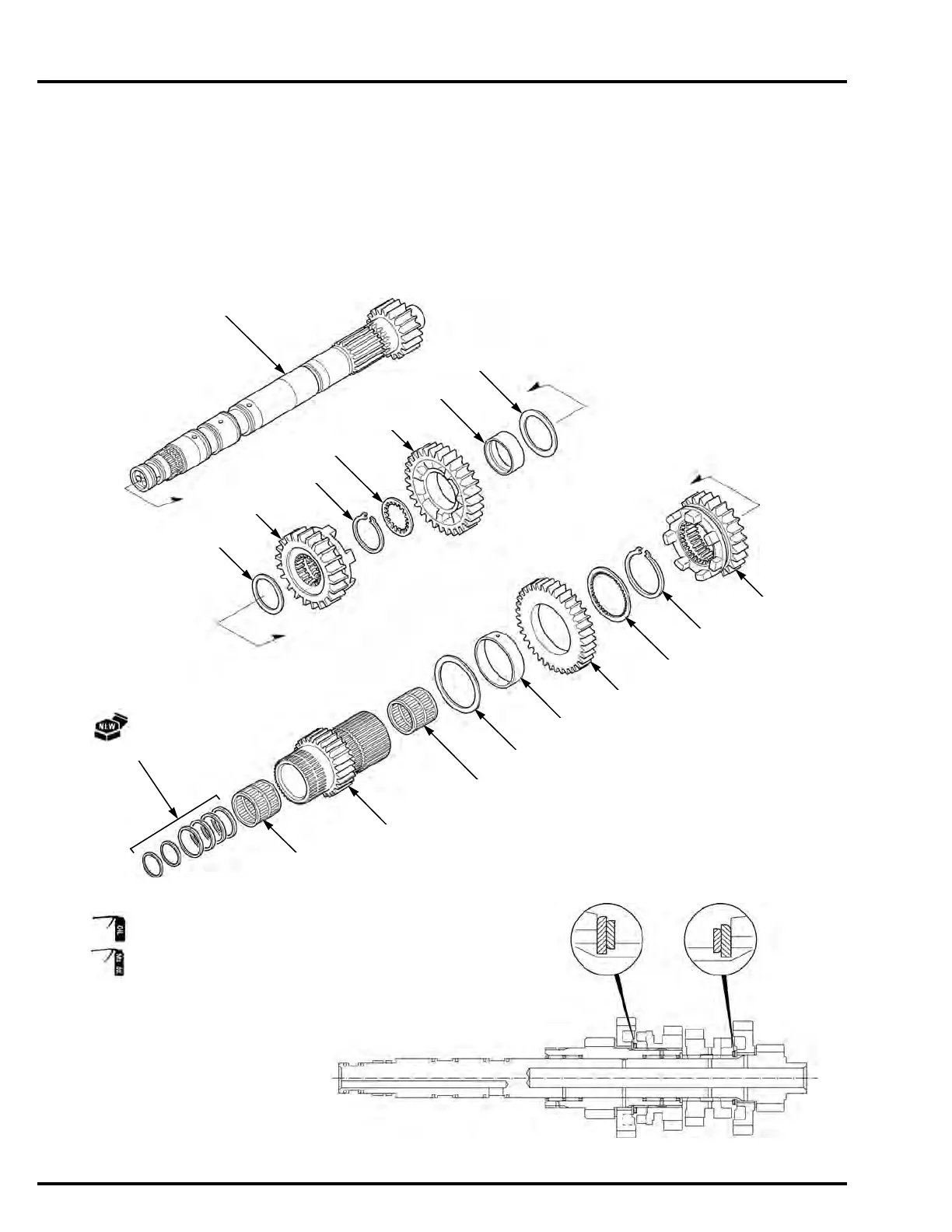

Assemble the mainshaft and countershaft.
MAINSHAFT
: Bushing surfaces and gear shifter grooves
: Gear teethe, rotating surfaces and bearing
M3 GEAR (22T)
OUTER MAINSHAFT/M2 GEAR (21T)
M4 GEAR (25T)
M6 GEAR (37T)
M5 GEAR (30T)
INNER MAINSHAFT/M1 GEAR (15T)
THRUST WASHER
M5 GEAR BUSHING
SPLINE WASHER
SNAP RING
SNAP RING
M6 GEAR BUSHING
THRUST WASHER
SPLINE WASHER
THRUST WASHER
NEEDLE BEARING
NEEDLE BEARING
SEAL RINGS
