22-30
dummyheaddummyhead
LIGHTS/METERS/SWITCHES
REMOVAL/INSTALLATION

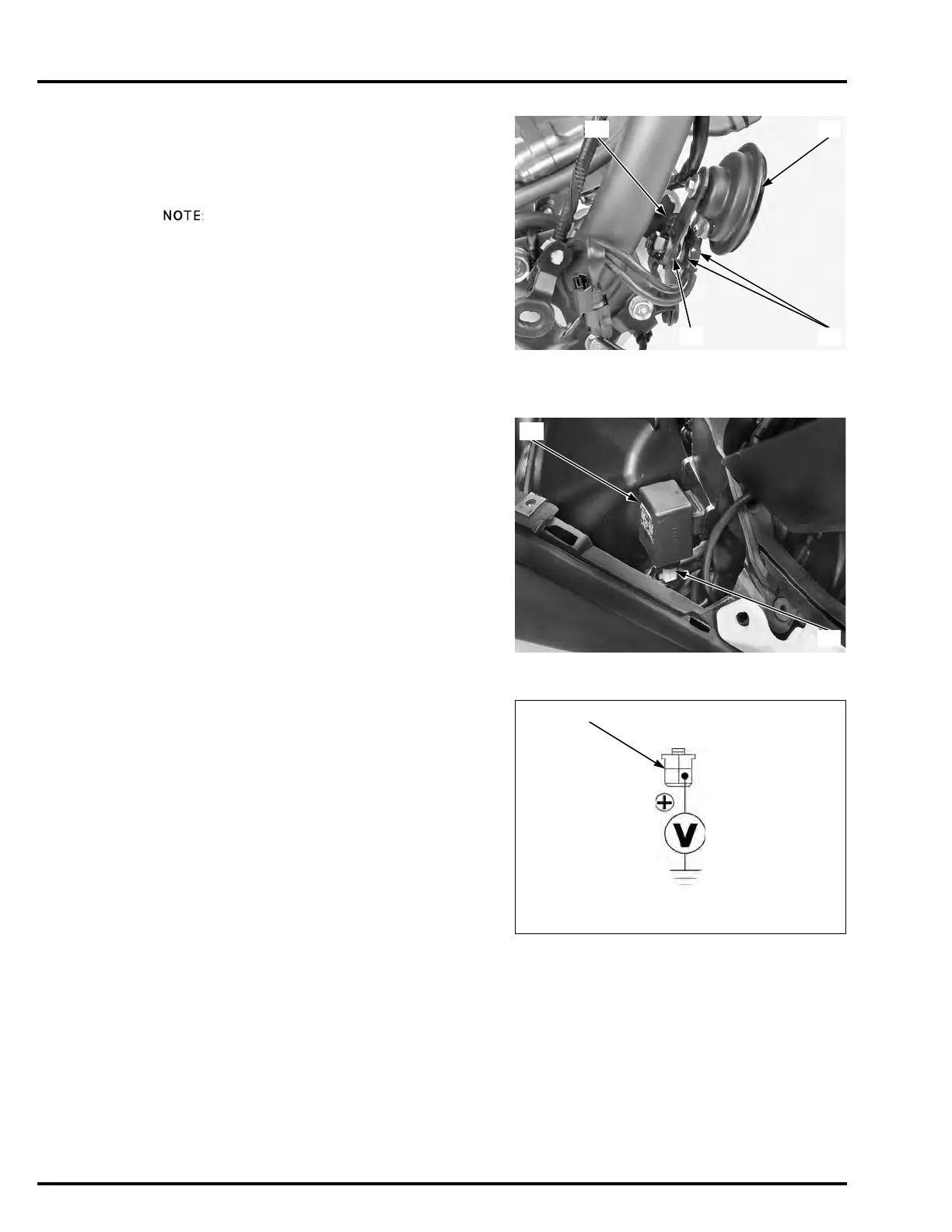

Remove the lower cowl (page 2-28).
Disconnect the wire connectors [1] from the horn [2].
Remove the bolt [3] and horn.
Installation is in the reverse order of removal.
Install the horn against the frame stopper [4].
Route the wire properly (page 1-25).
TURN SIGNAL/HAZARD RELAY
SYSTEM INSPECTION
Remove the center cover (NC700X/XA/XD) (page 2-
16).
Remove the side cowl (NC700S/SA/SD) (page 2-13).
Turn the ignition switch OFF.
Release the turn signal/hazard relay [1] from the
luggage box.
Disconnect the turn signal/hazard relay 4P connector
[2] from the turn signal/hazard relay.
Check the following at the wire harness side 4P
connector.
1. Battery Power Source Line Open Circuit
Inspection
Measure the voltage between the 4P connector [1]
terminal and ground.
Is there battery voltage?
YES GO TO STEP 2.
NO Open circuit in the Red/white wire
Blown sub fuse 7.5 A (CLOCK/TURN)
[2]
[1][3]
[4]
[1]
[2]
Connection: Red/white (+) – Ground (–)
[1]
R/W
