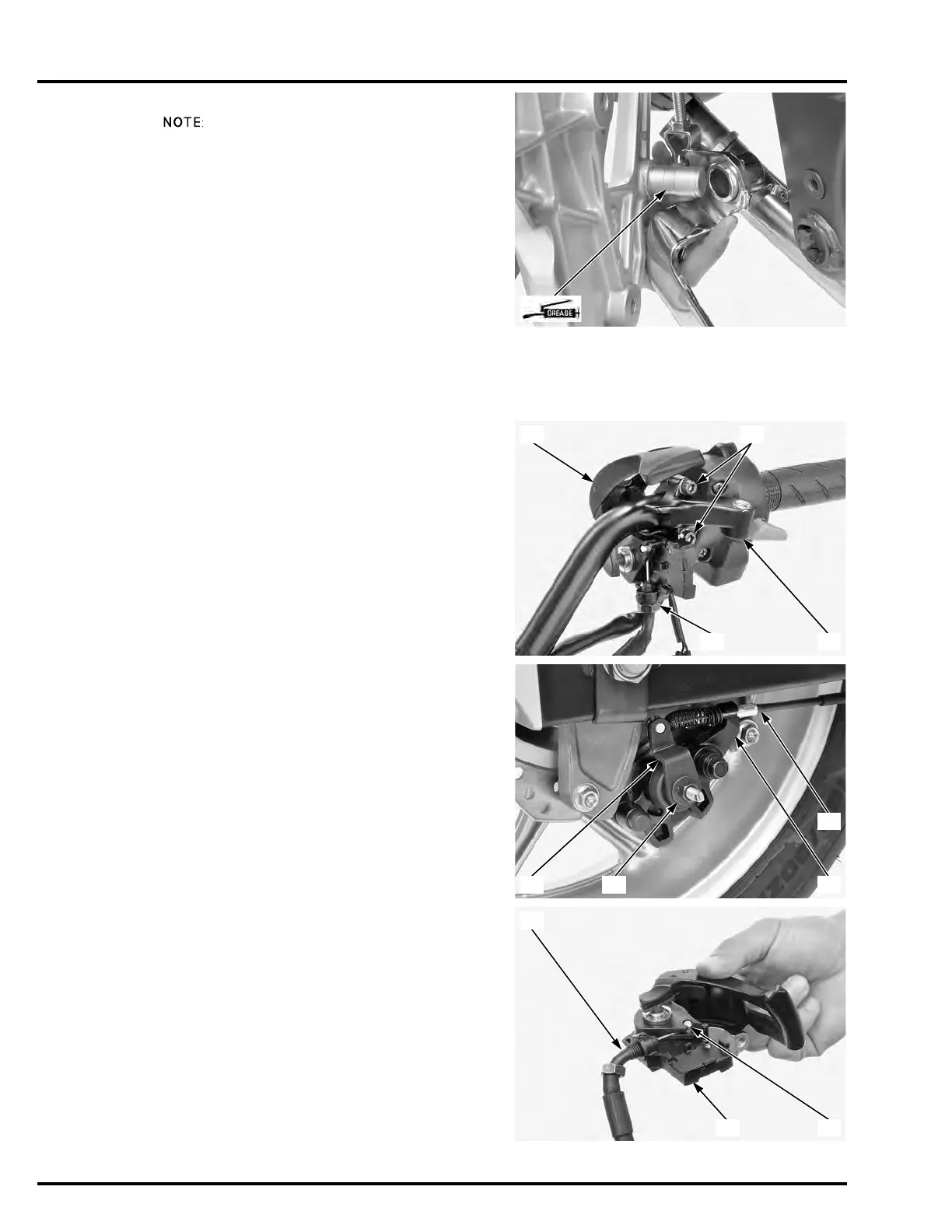

HYDRAULIC BRAKE
Installation is in the reverse order of removal.
• Apply grease to the brake pedal pivot sliding area.
• Replace the cotter pin with a new one.
PARKING BRAKE LEVER (NC700XD/
SD)
REMOVAL/INSTALLATION
Remove the following:
– Left rearview mirror (page 17-12)
– Parking brake switch (page 22-23)
Loosen the parking brake cable mounting nut [1].
Remove the socket bolts [2], holder [3] and parking
brake lever bracket [4].
Remove the parking brake adjuster bolt lock nut [1]
while holding the brake arm [2].
Remove the brake arm and release the parking brake
cable [3] from the cable guide [4].
Turn the parking brake lever bracket [1] and remove the
parking brake cable joint [2] from the bracket.
Disconnect the parking brake cable [3].
TORQUE:
Step holder mounting socket bolt:
32 N·m (3.3 kgf·m, 24 lbf·ft)
[2]
[3]
[4]
[1]
[1][2]
[3]
[4]
[3]
[2]
[1]
