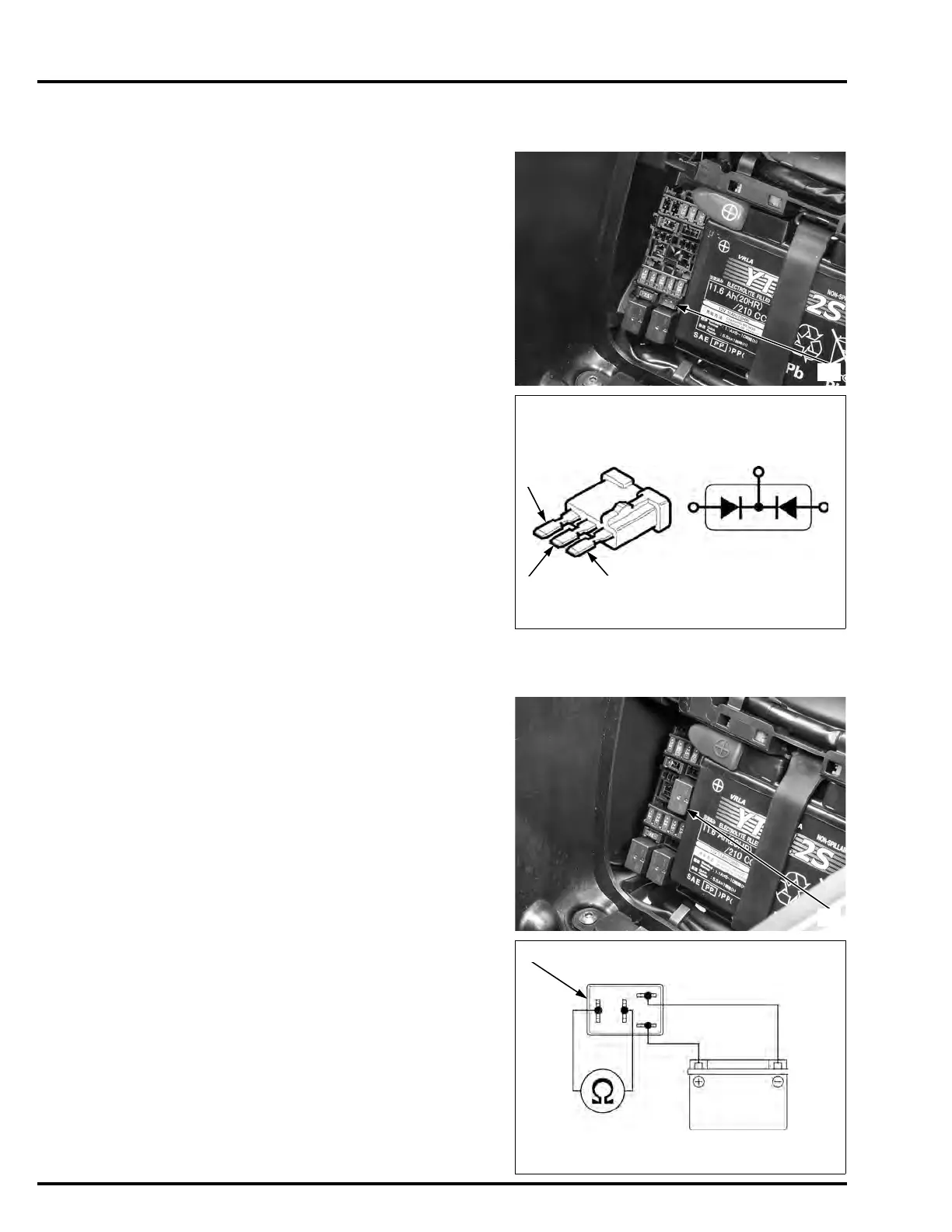

ELECTRIC STARTER
NEUTRAL DIODE (NC700X/XA/S/SA)
INSPECTION
Remove the maintenance lid (page 21-6).
Open the fuse/relay box cover and remove the neutral
diode [1].
Check for continuity between the neutral diode
terminals.
When there is continuity, a small resistance value will
register.
If there is continuity, in direction shown by the arrow,
the neutral diode is normal.
STARTER RELAY (NC700XD/SD)
INSPECTION
Remove the maintenance lid (page 21-6).
Open the fuse/relay box cover and remove the START
RELAY [1].
Connect an ohmmeter to the START RELAY [1]
connector terminals.
Connect a 12 V battery to the START RELAY connector
terminals as shown.
There should be continuity only when 12 V battery is
connected.
If there is no continuity only when the 12 V battery is
connected, replace the START RELAY.
[1]
C
B
A
A
B
C
[1]
[1]
