22-28
dummyheaddummyhead

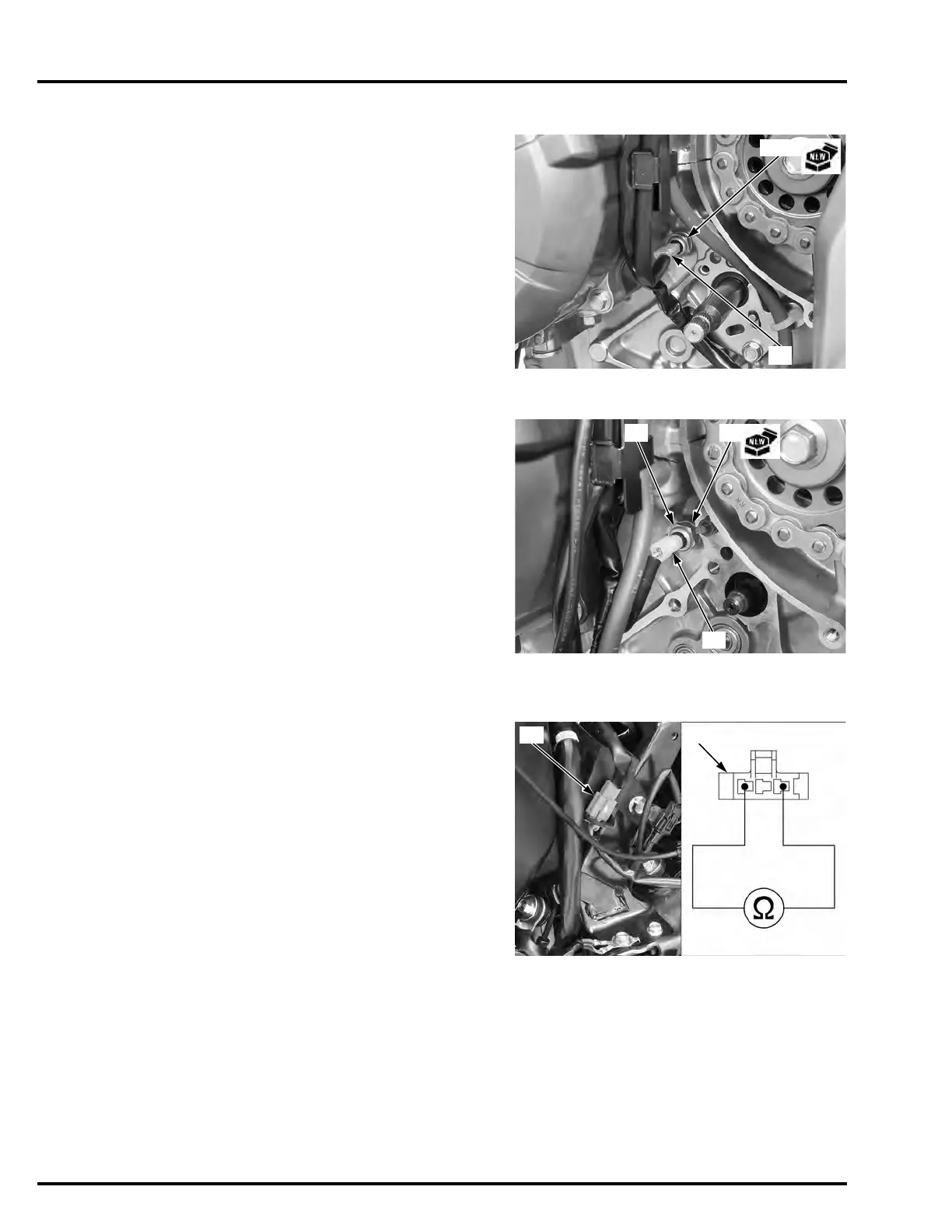

LIGHTS/METERS/SWITCHES
REMOVAL/INSTALLATION (NC700X/
XA/S/SA)
Drain the engine oil (page 3-13).
Remove the left rear cover (page 2-29).
Disconnect the neutral switch connector [1].
Remove the neutral switch [2] and sealing washer [3].
Install the neutral switch with a new sealing washer.
Tighten the neutral switch to the specified torque.
Connect the neutral switch connector.
Fill the engine with the recommended engine oil (page
3-12).
REMOVAL/INSTALLATION (NC700XD/
SD)
Remove the shift control motor/reduction gears (page
12-109).
Disconnect the neutral switch connector [1].
Remove the neutral switch [2] and sealing washer [3]
from the crankcase.
Install the neutral switch with a new sealing washer and
tighten it.
Connect the neutral switch connector.
Install the reduction gears/shift control motor (page 12-
110).
SIDESTAND SWITCH
INSPECTION
Remove the following:
Shroud/side cover (NC700X/XA/XD) (page 2-14)
Shelter/side cover (NC700S/SA/SD) (page 2-15)
Left rear cover (page 2-29)
Disconnect the sidestand switch 3P (Green) connector
[1].
Check for continuity between the wire terminals of the
sidestand switch 3P (Green) connector switch side.
Continuity should exist only when the sidestand is up.
TORQUE:12 N·m (1.2 kgf·m, 9 lbf·ft)
[1]
[2]/[3]
TORQUE:12 N·m (1.2 kgf·m, 9 lbf·ft)
[3][2]
[1]
CONNECTION: Green/white – Green
[1][1]
GG/W
