CYLINDER HEAD/VALVES

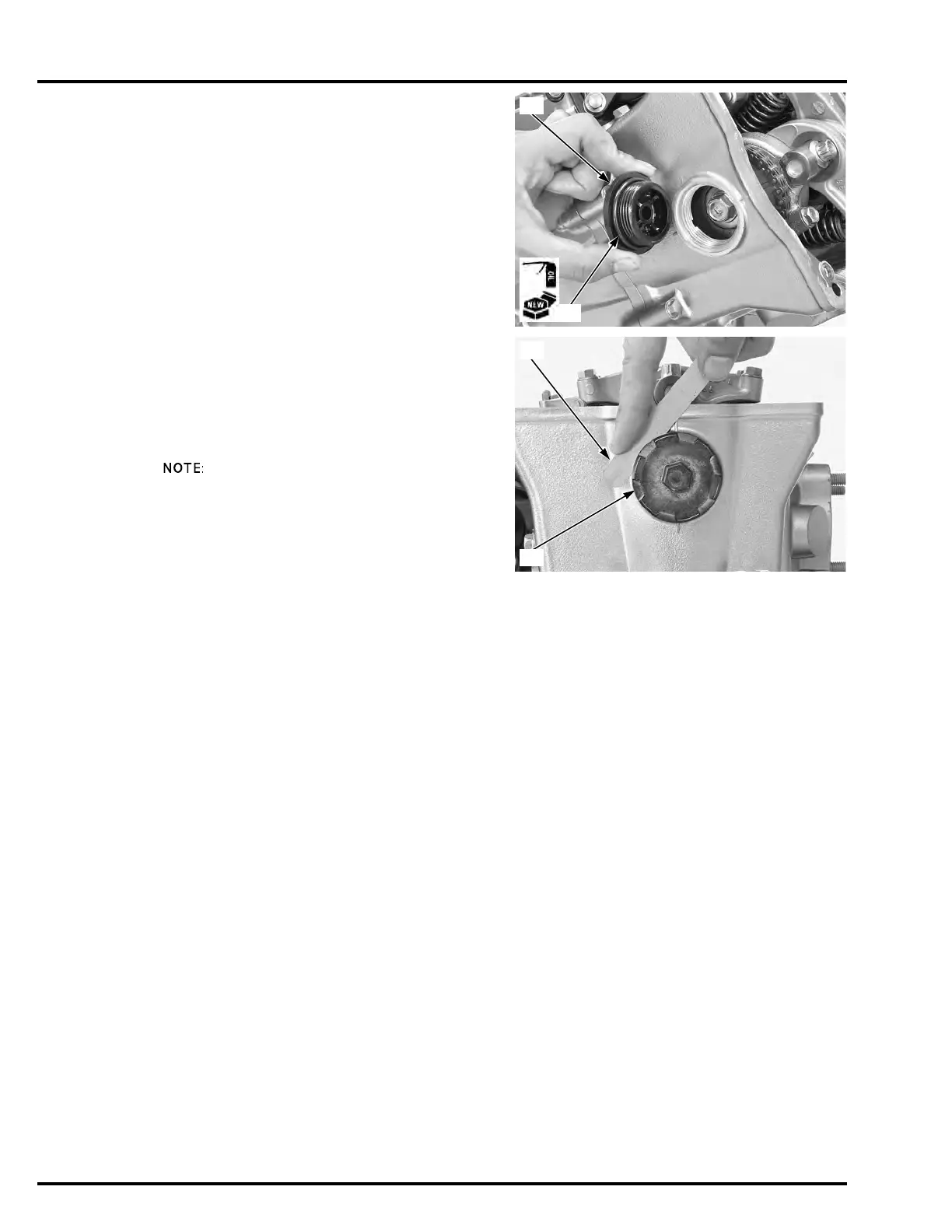

Apply engine oil to a new O-ring [1] and install it to the
camshaft maintenance cap [2].
Temporarily Install the camshaft maintenance cap to
the cylinder head.
If the engine is removed from the frame, tighten the
camshaft maintenance cap to the specified torque.
If the engine is installed on the frame, insert a feeler
gauge (0.1 mm) [1] between the camshaft maintenance
cap and cylinder head.
Tighten the camshaft maintenance cap securely.
Remove the feeler gauge.
Further tighten the camshaft maintenance cap at 30°.
One concave area [2] size is equivalent with 30°.
Install the following:
– Cylinder head cover (page 10-5)
– Right crankcase cover
– NC700X/XA/S/SA (page 11-5)
– NC700XD/SD (page 12-103)
– Engine
– NC700X/XA/S/SA (page 16-15)
– NC700XD/SD (page 16-21)
TORQUE:4.0 N·m (0.4 kgf·m, 3.0 lbf·ft)
[1]
[2]
[2]
[1]

Honda NC700 2012 Specifications

General

Engine Type	670cc liquid-cooled parallel-twin
Bore x Stroke	73.0mm x 80.0mm
Compression Ratio	10.7:1
Front Brake	Single 320mm disc with two-piston caliper
Rear Brake	Single 240mm disc with single-piston caliper
Fuel Capacity	3.7 gallons
Fuel System	PGM-FI
Transmission	6-speed
Front Suspension	41mm telescopic fork
Rear Suspension	Pro-Link single shock
Front Tire	120/70-17
Rear Tire	160/60-17
Wheelbase	60.6 inches
Curb Weight	472 pounds
