CLUTCH/GEARSHIFT LINKAGE (NC700X/XA/S/SA)

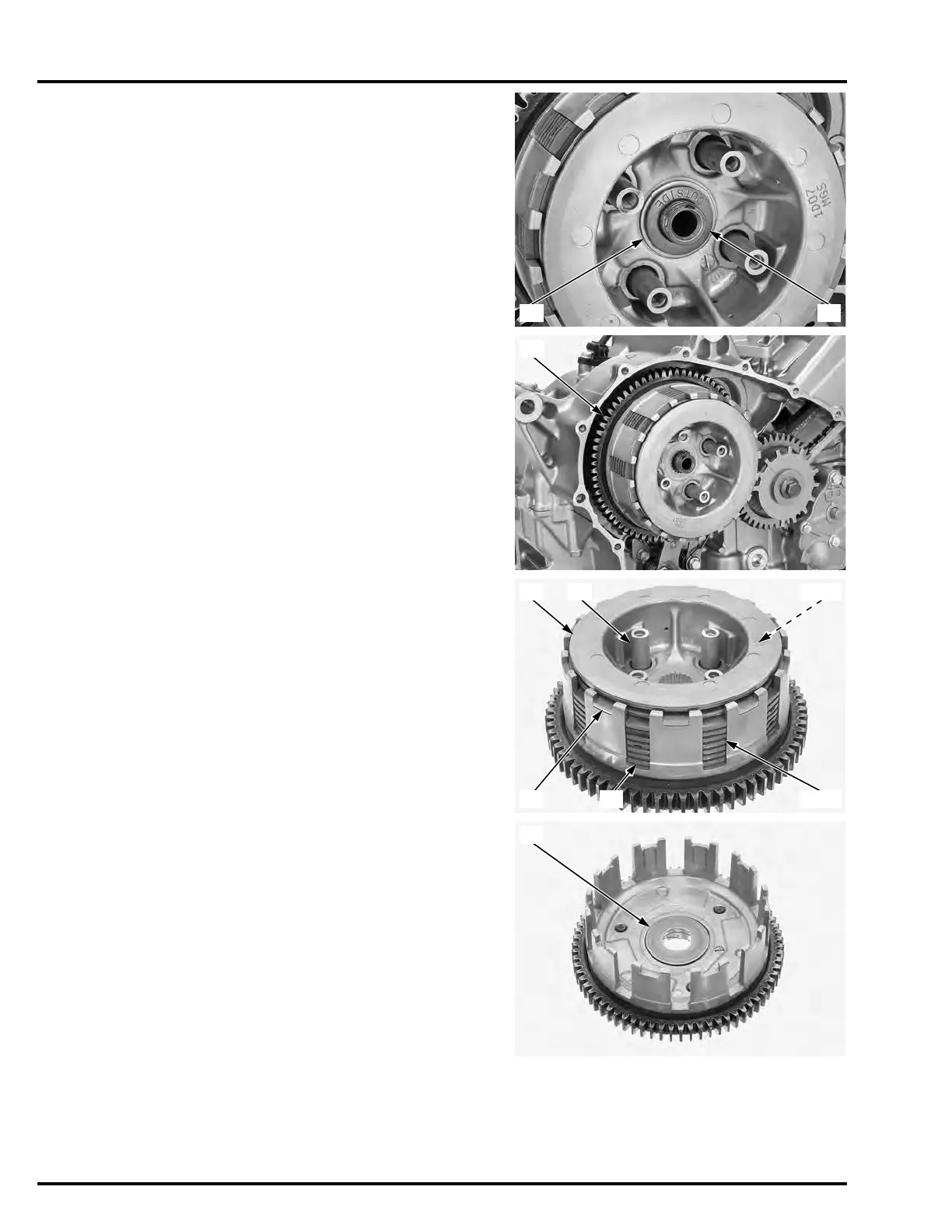

Remove the lock washer [1] and thrust washer [2].
Remove the clutch assembly [1].
Remove the following:
– Clutch center [1]
– Spring seat [2]
– Judder spring [3]
– Clutch disc B [4]
– Seven clutch plates [5]
– Six clutch discs C [6]
– Clutch disc A [7]
– Pressure plate [8]
Remove the thrust washer [1].
[2] [1]
[1]
[1] [2]/[3]
[4] [5]/[6][7]
[8]
[1]
