CLUTCH/GEARSHIFT LINKAGE (NC700X/XA/S/SA)

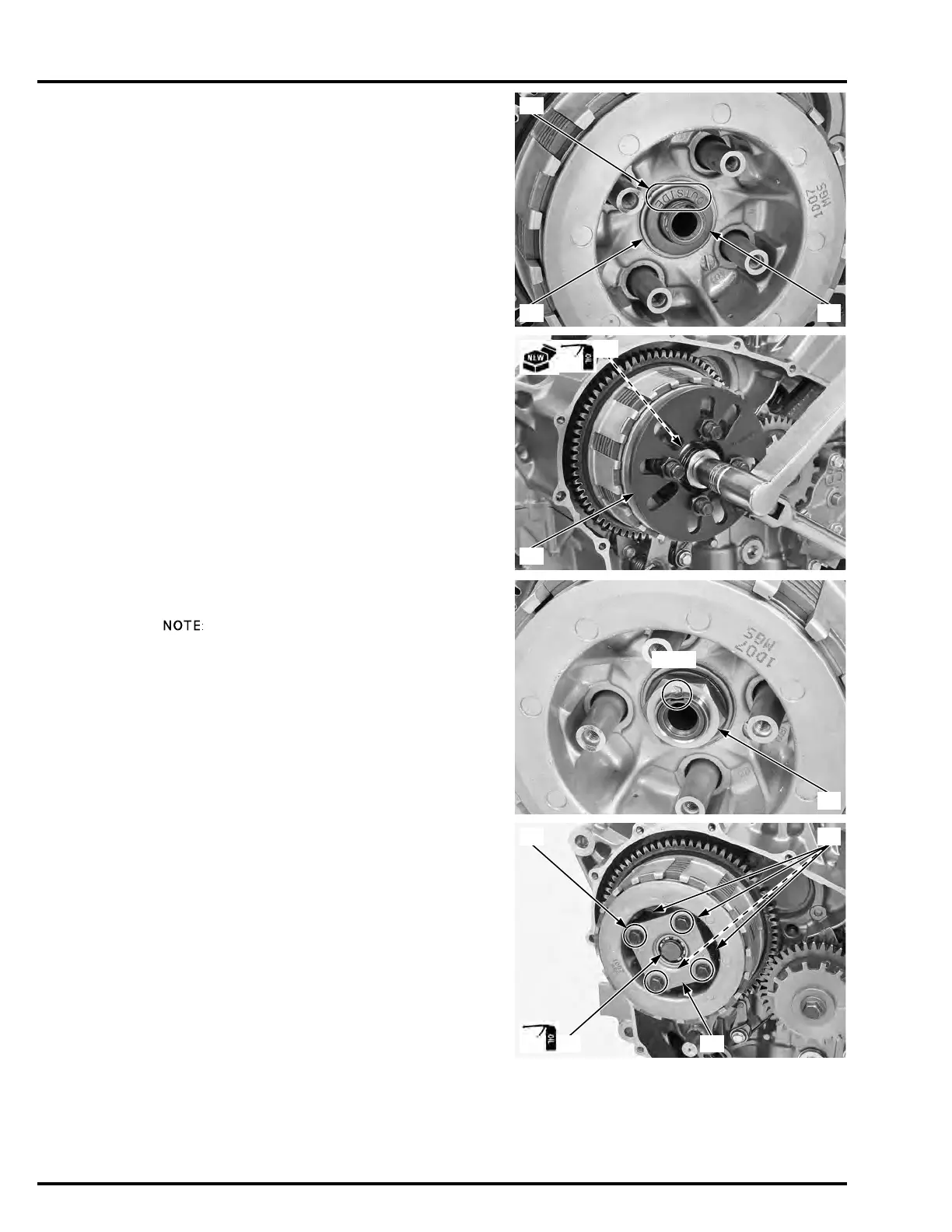

Install the thrust washer [1].
Install the lock washer [2] with its "OUTSIDE" mark [3]
facing out.
Apply engine oil to a new clutch center lock nut threads
and seating surface.
Install the clutch center lock nut [1] onto the mainshaft.
Hold the pressure plate with the special tool and tighten
the lock nut to the specified torque.
Stake the clutch center lock nut [1] into the mainshaft
groove.
Be careful not to damage the mainshaft threads.
Install the clutch springs [1], lifter plate/bearing [2] and
clutch lifter plate bolts [3].
Tighten the clutch lifter plate bolts to the specified
torque in a crisscross pattern in 2 or 3 steps.
Apply engine oil to the clutch lifter rod B sliding surface.
Install the clutch lifter rod B [4].
Install the right crankcase cover (page 11-5).
[1] [2]
[3]
TOOL:
Clutch center holder [2] 07JMB-MN50302
TORQUE:128 N·m (13.1 kgf·m, 94 lbf·ft)
[1]
[2]
[1]
Stake
TORQUE:12 N·m (1.2 kgf·m, 9 lbf·ft)
[4]
[1]
[2]
[3]
