DUAL CLUTCH TRANSMISSION (DCT) (NC700XD/SD)
NOTE 5: Remove the lower cowl (page 2-29).
NOTE 6: Remove the lower cowl (page 2-29).
NOTE 7: Remove the left rear cover (page 2-30).
NOTE 8: Remove the luggage box (page 2-19).

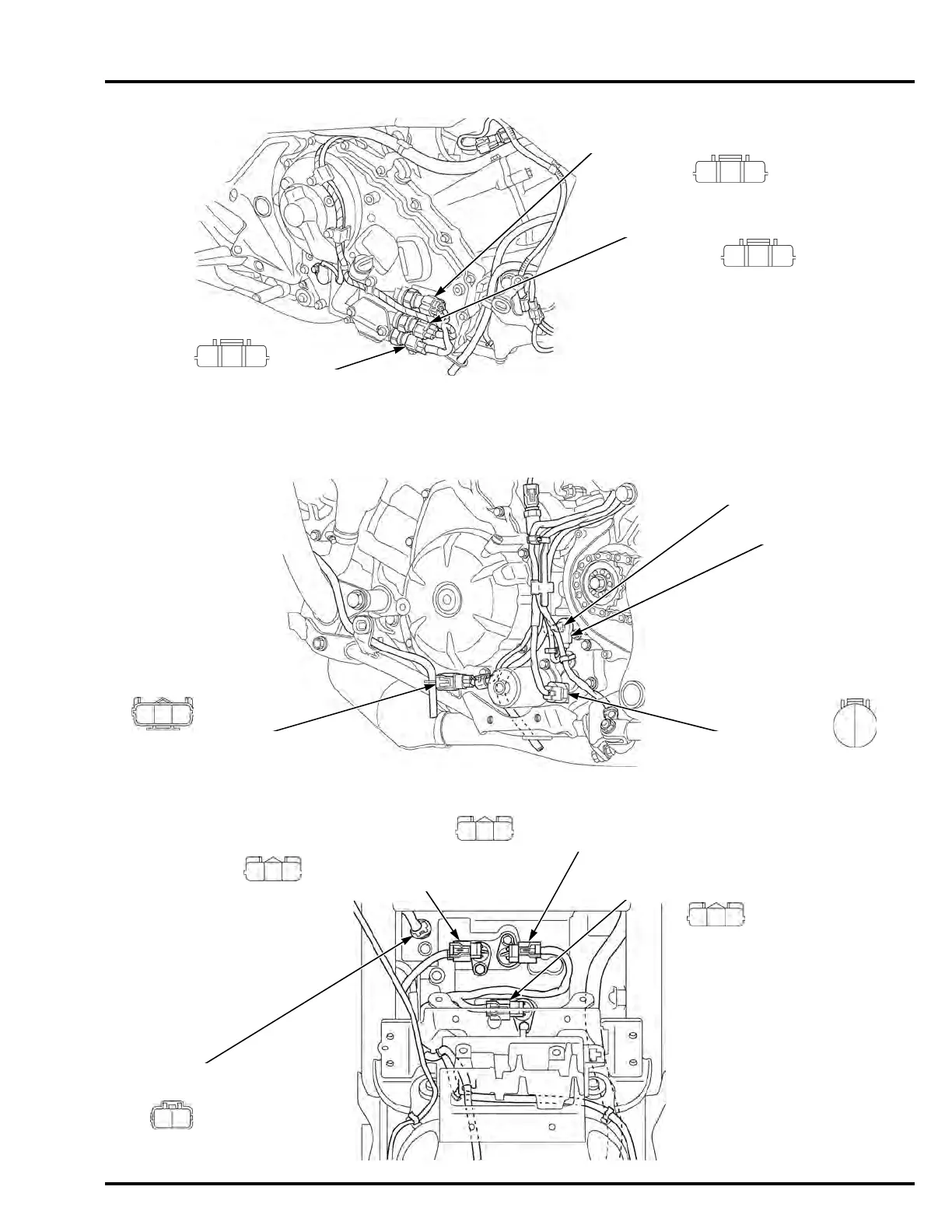

CLUTCH LINE EOP SENSOR
3P (BLACK) CONNECTOR (NOTE 5)
No.1 CLUTCH EOP SENSOR
3P (GRAY) CONNECTOR (NOTE 5)
No.2 CLUTCH EOP SENSOR
3P (GRAY) CONNECTOR (NOTE 5)
NEUTRAL SWITCH (NOTE 7)
TR SENSOR (NOTE 7)
SHIFT CONTROL MOTOR
2P (BLACK) CONNECTOR (NOTE 7)
SHIFT PEDAL ANGLE SENSOR
3P (BLACK) CONNECTOR (NOTE 6)
OUTER MAINSHAFT SENSOR
3P (BLACK) CONNECTOR
INNER MAINSHAFT SENSOR
3P (BLACK) CONNECTOR (NOTE 8)
VS SENSOR
3P (BLACK) CONNECTOR
EOT SENSOR
2P (BLACK) CONNECTOR
