DUAL CLUTCH TRANSMISSION (DCT) (NC700XD/SD)

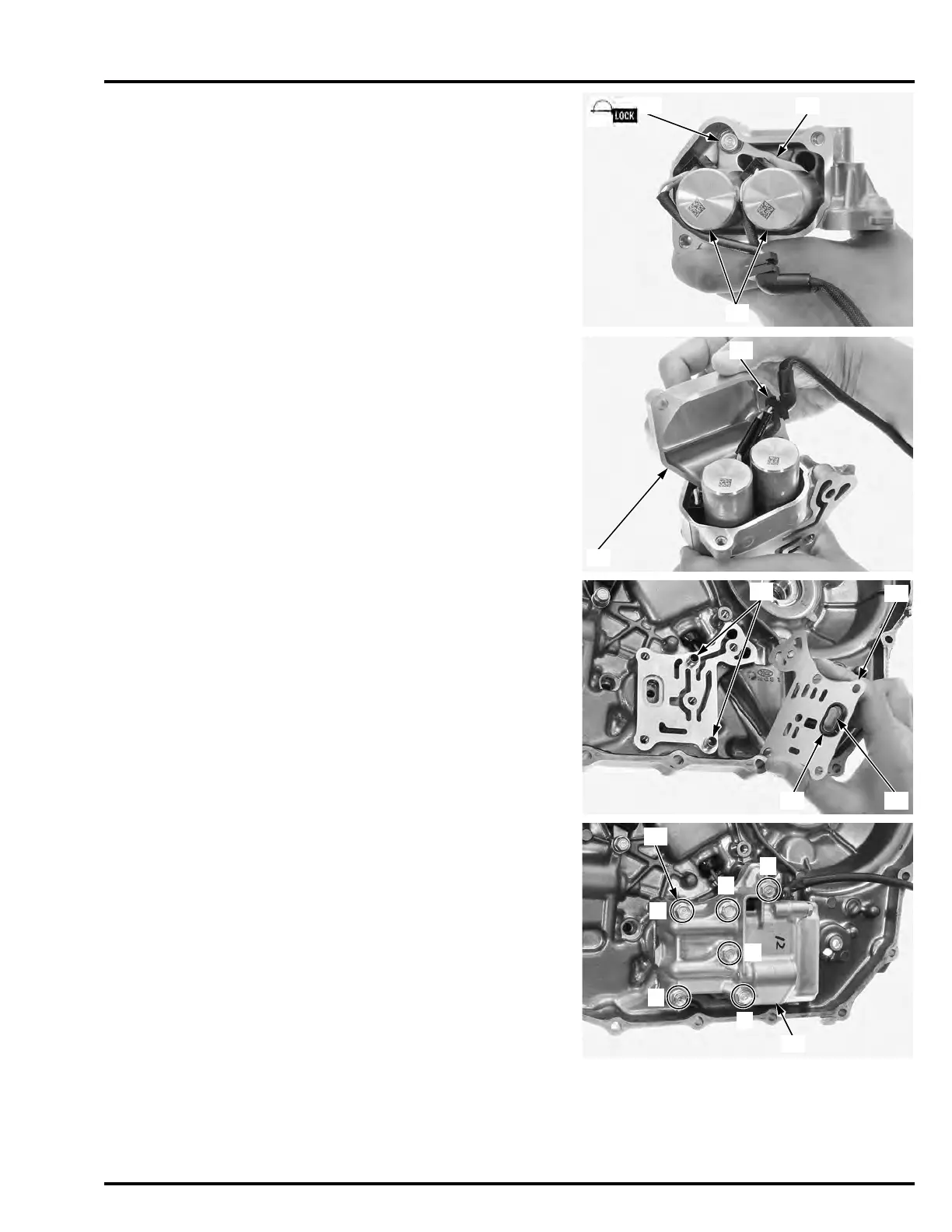

Install the linear solenoid valves [1] and stopper plate
[2] into the valve body.
Apply locking agent to the threads of the stopper plate
bolt [3] (page 12-4).
Install the stopper plate bolt and tighten it.
Set the wire grommet [1] into the groove in the body
cover [2].
Install the valve body cover onto the valve body and
tighten the bolts securely.
Check the oil filter screen [1] and packing [2] for
damage and replace them if necessary.
Install the dowel pins [3] and separate plate [4] onto the
right crankcase cover.
Install the valve body [1] and bolts [2], and tighten the
bolts in the sequence as shown.
TORQUE:12 N·m (1.2 kgf·m, 9 lbf·ft)
[2]
[1]
[3]
[2]
[1]
[4]
[1]
[3]
[2]
[1]
[2]
1
2
4
6
5
3
