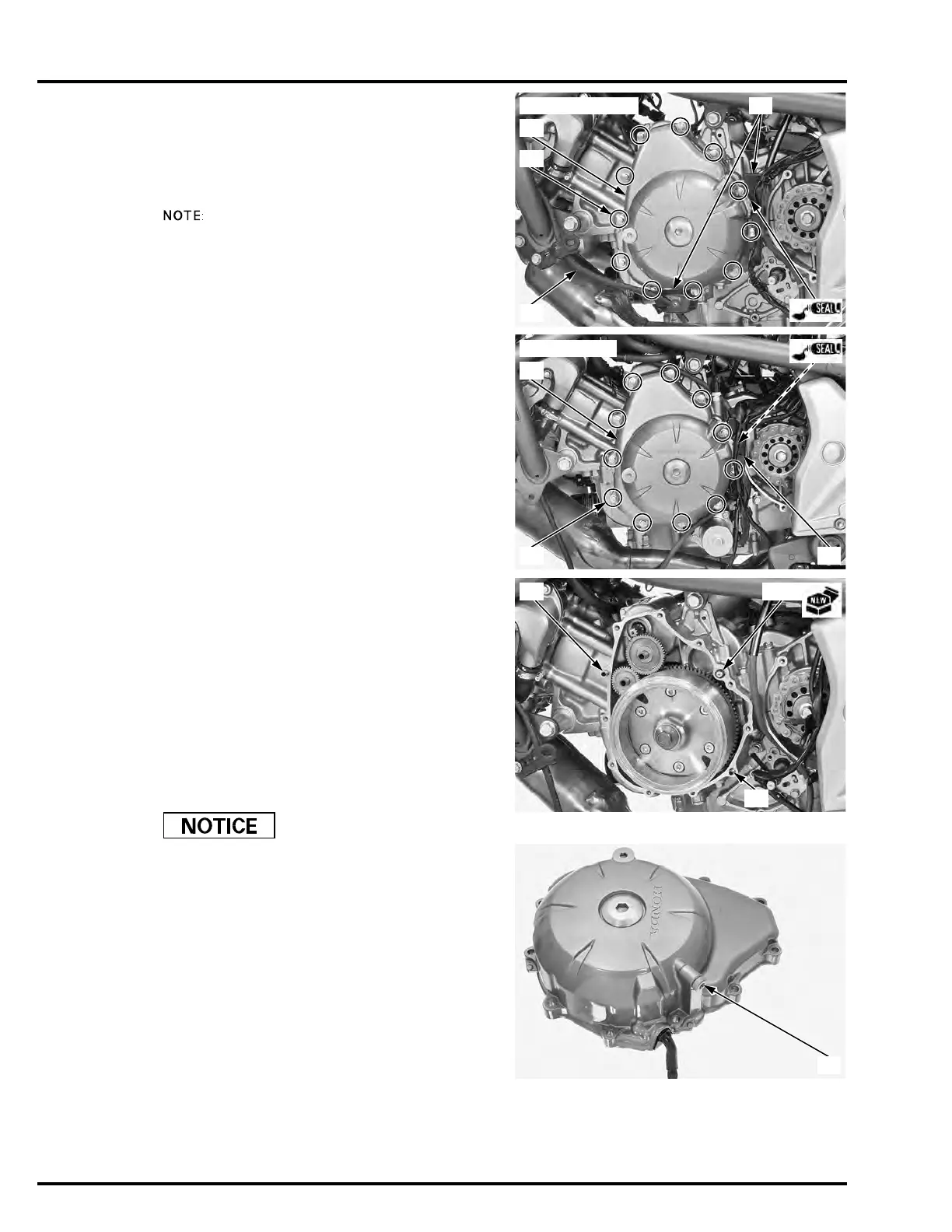

ALTERNATOR/STARTER CLUTCH
Release the battery box drain hose (NC700X/XA/S/SA)
[1] from the stay.
Loosen the alternator cover bolts [2] in a crisscross
pattern in 2 or 3 steps, and remove the bolts and stays
[3].
Remove the alternator cover [4].
The alternator cover (stator) is magnetically attracted to
the flywheel, be careful during removal.
Remove the dowel pins [1], oil orifice [2] and O-ring [3].
Clean off any sealant from the alternator cover mating
surfaces.
Do not loosen the alternator cover sealing bolt [1].
[1]
[3]
[4]
[3]
[4]
NC700X/XA/S/SA:
[2]
NC700XD/SD:
[2]
[1]
[1] [2]/[3]
[1]

Honda NC700 2012 Specifications

General

Engine Type	670cc liquid-cooled parallel-twin
Bore x Stroke	73.0mm x 80.0mm
Compression Ratio	10.7:1
Front Brake	Single 320mm disc with two-piston caliper
Rear Brake	Single 240mm disc with single-piston caliper
Fuel Capacity	3.7 gallons
Fuel System	PGM-FI
Transmission	6-speed
Front Suspension	41mm telescopic fork
Rear Suspension	Pro-Link single shock
Front Tire	120/70-17
Rear Tire	160/60-17
Wheelbase	60.6 inches
Curb Weight	472 pounds
