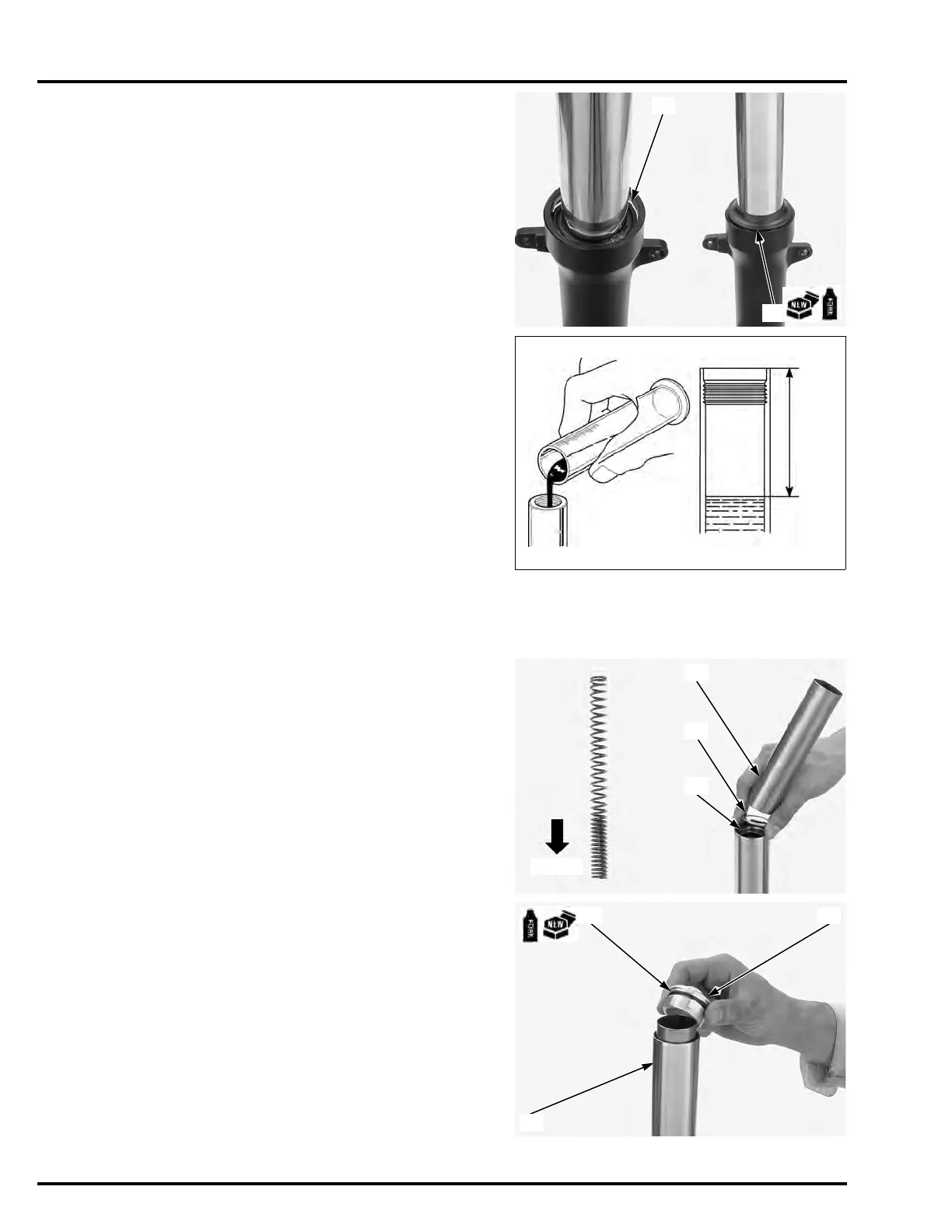

FRONT WHEEL/SUSPENSION/STEERING
Install the stopper ring [1] into the groove of the fork
slider securely.
Apply fork fluid to a new dust seal lips.
Install the dust seal [2].
Pour the specified amount of recommended fork fluid
into the fork pipe.
Slowly pump the fork pipe several times to remove any
trapped air from the lower portion of the fork pipe.
Compress the fork pipe fully and measure the fluid level
from the top of the fork pipe.
Pull the fork pipe up and install the fork spring [1] with
the tightly wound coil side facing down.
Install the spring seat [2] and spring collar [3].
Apply fork fluid to a new O-ring [1] and install it onto the
fork cap [2].
Loosely install the fork cap by pushing it to the fork pipe
[3].
[1]
[2]
RECOMMENDED FORK FLUID:
Honda ULTRA CUSHION OIL 10W or equivalent
FORK FLUID CAPACITY:
NC700X/XA/XD: 514 ± 2.5 cm
3
(17.4 ± 0.08 US oz,
18.1 ± 0.09 Imp oz)
NC700S/SA/SD: 518 ± 2.5 cm
3
(17.5 ± 0.08 US oz,
18.1 ± 0.09 Imp oz)
FLUID LEVEL:
NC700X/XA/XD: 104 mm (4.1 in)
NC700S/SA/SD: 103 mm (4.1 in)
NC700X/XA/XD: 104 mm (4.1 in) NC700S/SA/SD: 103 mm (4.1 in)
DOWN
[3]
[2]
[1]
Tighten the fork cap
after installing the
fork pipe into the
fork bridges.
[2][1]
[3]
