FRONT WHEEL/SUSPENSION/STEERING

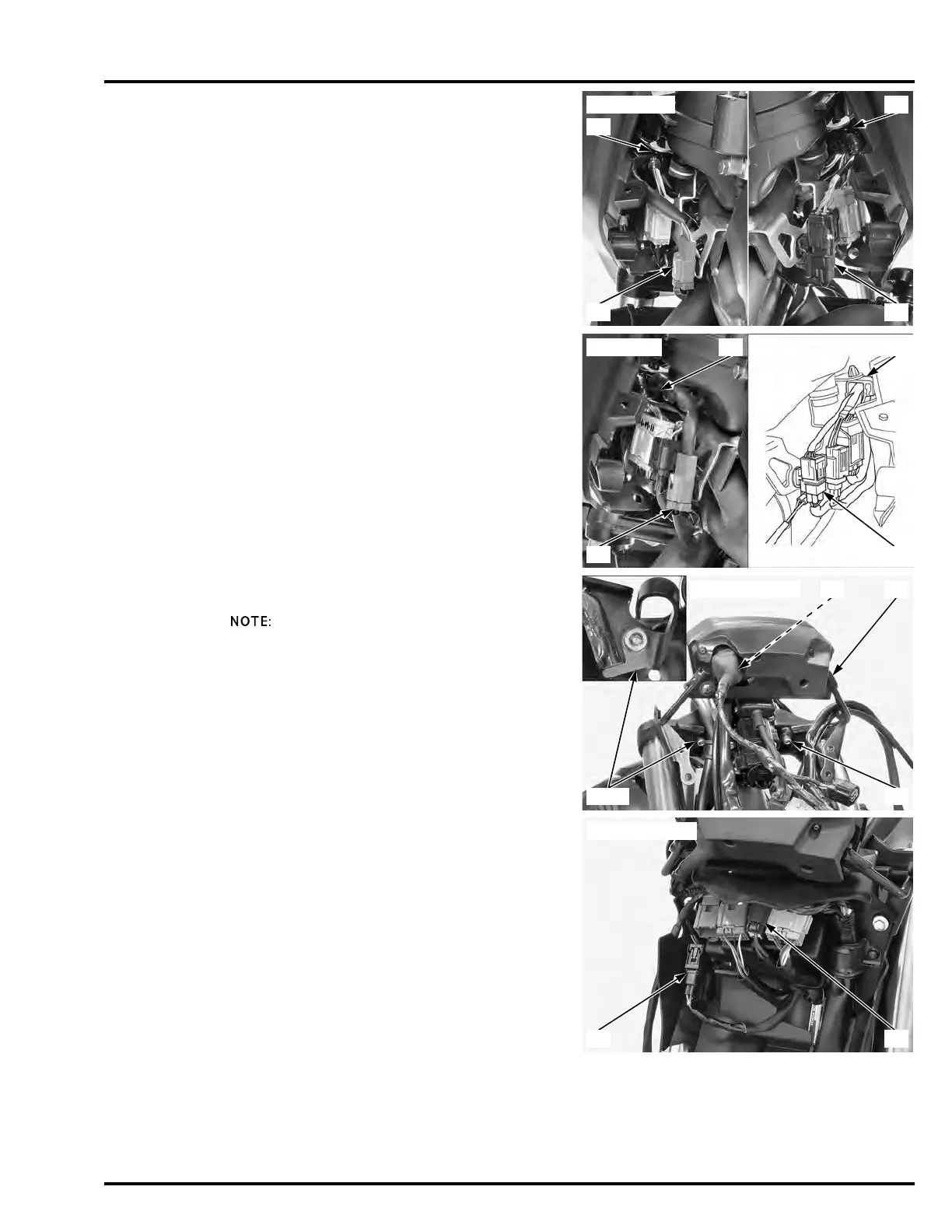

NC700X/XA/XD: Install the wire harness from the clamps [1].
Connect the ignition switch 2P (Brown) connector [2]
and immobilizer receiver 4P (Black) connector [3].
Install the following:
– Shroud/side cover (page 2-14)
– Handlebar
– NC700X/XA (page 17-14)
– NC700XD (page 17-17)
NC700S/SA/SD: Install the combination meter/stay [1], brake hose guide
[2] and socket bolts [3].
• Route the wires, hose and cable properly (page 1-
25).
• Install the brake hose guide against the combination
meter stay.
Connect the combination meter 16P (Gray) connector
[4].
NC700S/SA/SD: Install the headlight cover (page 2-27).
Connect the ignition switch 2P (Brown) connector [1]
and immobilizer receiver 4P (Black) connector [2].
Install the following:
– Headlight/headlight stay (page 2-27)
– Handlebar
– NC700S/SA (page 17-14)
– NC700SD (page 17-17)
Perform the digital clock set procedure (page 22-14).
[2] [3]
[1]
[1]NC700X/XA:
[2] [3]
[1] [1]NC700XD:
NC700S/SA/SD:
[3]
[4] [1]
[2]/[3]
NC700S/SA/SD:
[1][2]

Honda NC700 2012 Specifications

General

Engine Type	670cc liquid-cooled parallel-twin
Bore x Stroke	73.0mm x 80.0mm
Compression Ratio	10.7:1
Front Brake	Single 320mm disc with two-piston caliper
Rear Brake	Single 240mm disc with single-piston caliper
Fuel Capacity	3.7 gallons
Fuel System	PGM-FI
Transmission	6-speed
Front Suspension	41mm telescopic fork
Rear Suspension	Pro-Link single shock
Front Tire	120/70-17
Rear Tire	160/60-17
Wheelbase	60.6 inches
Curb Weight	472 pounds
