REAR WHEEL/SUSPENSION
Never install the old
bearing, once the
bearing has been
removed, the
bearing must be
replaced with new
ones.

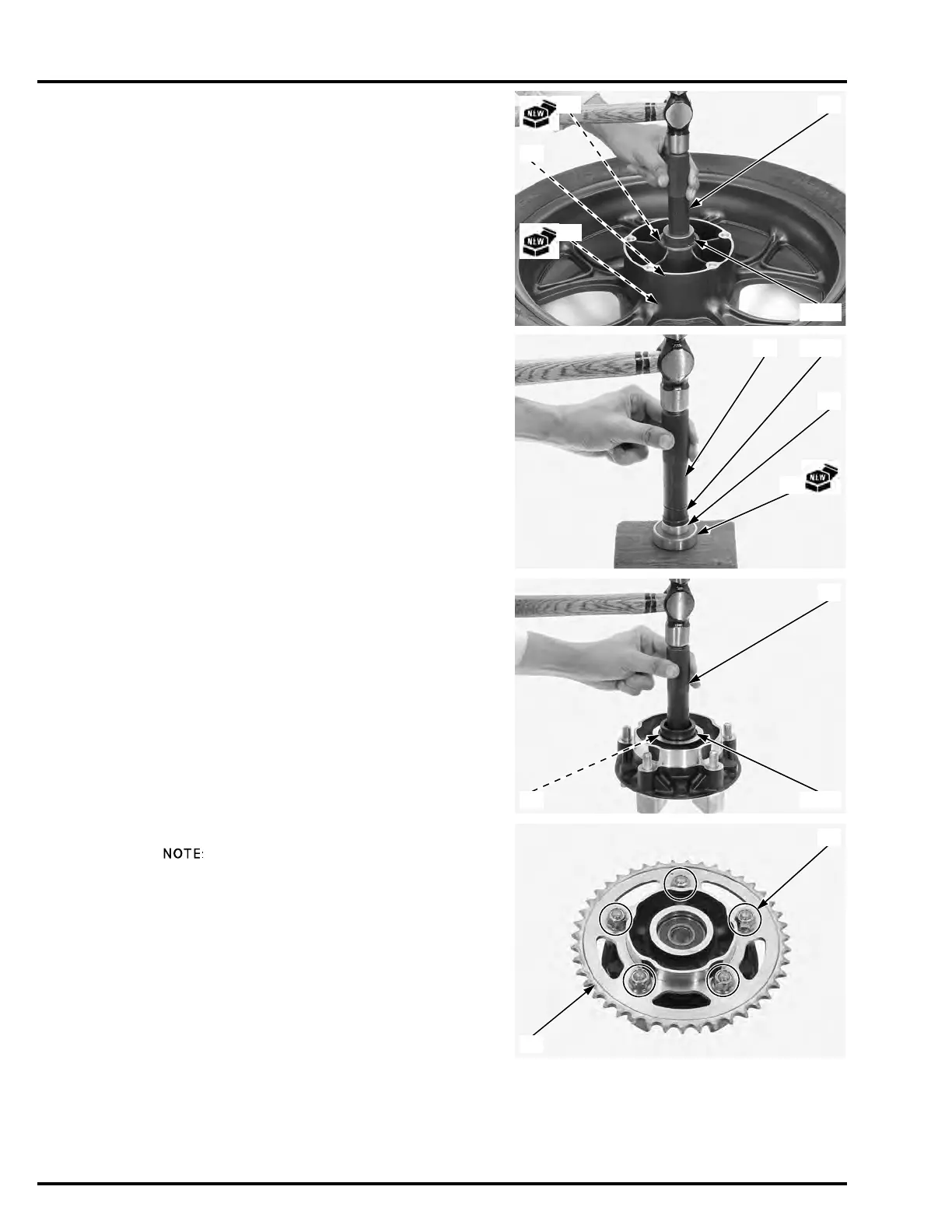

Drive in a new right side bearing [1] squarely until it is
fully seated.
Install the distance collar [5].
Drive in a new left side bearing [6] squarely until it is
seated on the distance collar.
Drive the rear wheel distance collar B [1] to a new
driven flange bearing [2].
Drive in the driven flange bearing/collar [1] squarely
with its collar side facing down until it is fully seated.
Install the driven sprocket [1] to the driven flange.
Install the driven sprocket with its marked side facing
out.
Temporarily install the driven sprocket nuts [2].
TOOLS:
Driver [2] 07749-0010000
Attachment, 42 x 47 mm [3] 07746-0010300
Pilot, 20 mm [4] 07746-0040500
[1]
[3]/[4]
[2]
[5]
[6]
TOOLS:
Driver [3] 07749-0010000
Attachment, 28 x 30 mm [4] 07946-1870100
Pilot, 20 mm [5] 07746-0040500
[1]
[2]
[4]/[5][3]
TOOLS:
Driver [2] 07749-0010000
Attachment, 42 x 47 mm [3] 07746-0010300
Pilot, 20 mm [4] 07746-0040500
[1] [3]/[4]
[2]
[1]
[2]
