Honda NC700 2012 User Manual

18-12
dummyheaddummyhead

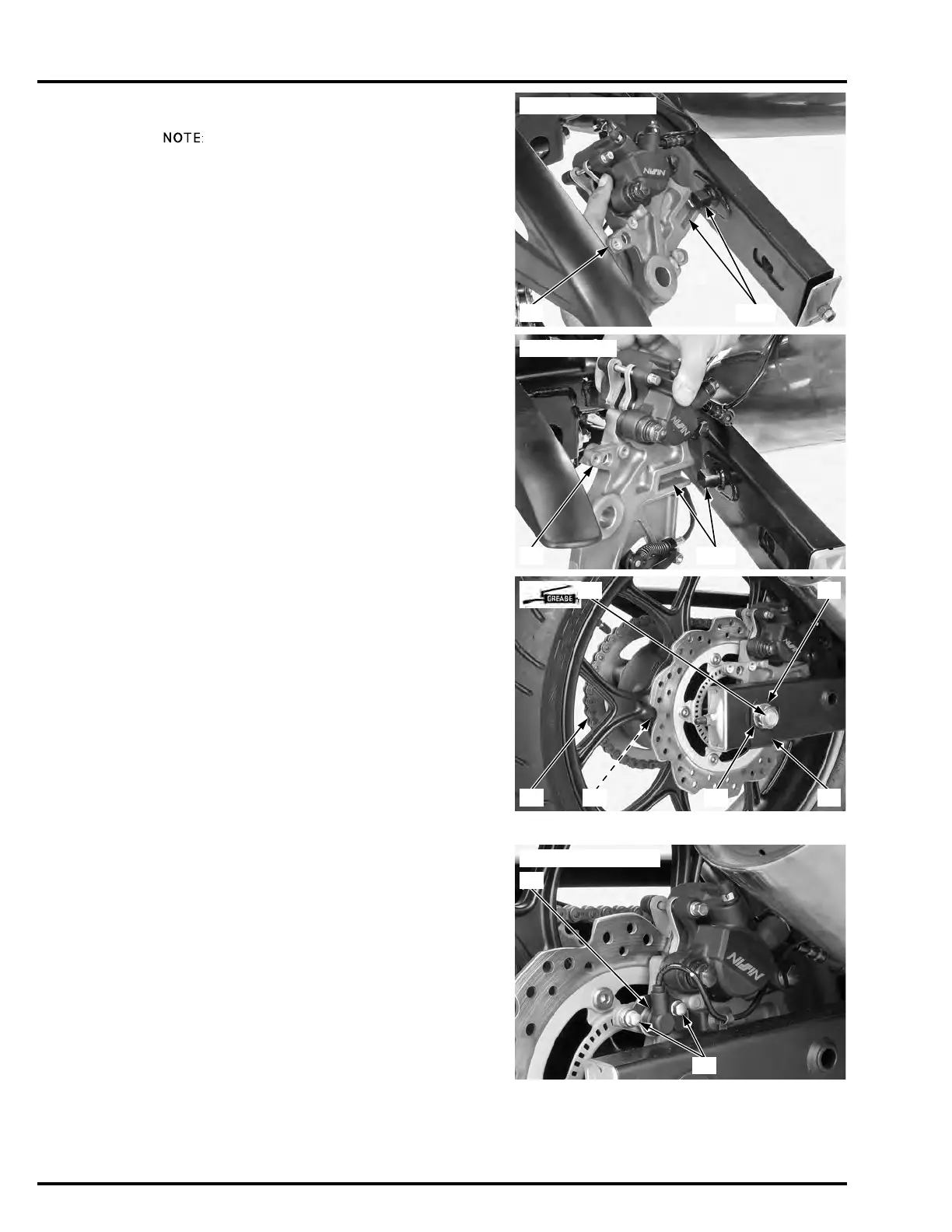

REAR WHEEL/SUSPENSION
Install the brake caliper/bracket assembly [1] to the
swingarm.
Align the bracket groove with swingarm tab.
Be careful not to
damage the brake
pads.
Install the rear wheel in the swingarm aligning the brake
disc between the brake pads.
Install the drive chain [1] over the driven sprocket.
Apply a thin coat of grease to the rear axle outer
surface.
Install the rear axle [2] from the left side through the
axle adjusting plate [3], swingarm, rear wheel and
collars.
Install the adjusting plate, washer [4] and rear axle nut
[5].
Tighten the rear axle nut to the specified torque.
Adjust the drive chain slack (page 3-16).
NC700XA/XD/SA/
SD:
Install the rear wheel speed sensor [1] and bolts [2].
Tighten the bolts securely.
Check the air gap between the rear wheel speed sensor
and pulser ring (page 20-24).
Check the parking brake lock operation (page 3-24).
[1] Align
[1] Align
NC700XD/SD:
NC700XA/SA shown:
TORQUE:98 N·m (10.0 kgf·m, 72 lbf·ft)
[1]
[2] [5]
[3][4][3]
NC700XD/SD:
NC700XA/XD/SA/SD:
[2]
[1]

Honda NC700 2012 Specifications

General

Engine Type	670cc liquid-cooled parallel-twin
Bore x Stroke	73.0mm x 80.0mm
Compression Ratio	10.7:1
Front Brake	Single 320mm disc with two-piston caliper
Rear Brake	Single 240mm disc with single-piston caliper
Fuel Capacity	3.7 gallons
Fuel System	PGM-FI
Transmission	6-speed
Front Suspension	41mm telescopic fork
Rear Suspension	Pro-Link single shock
Front Tire	120/70-17
Rear Tire	160/60-17
Wheelbase	60.6 inches
Curb Weight	472 pounds
