REAR WHEEL/SUSPENSION

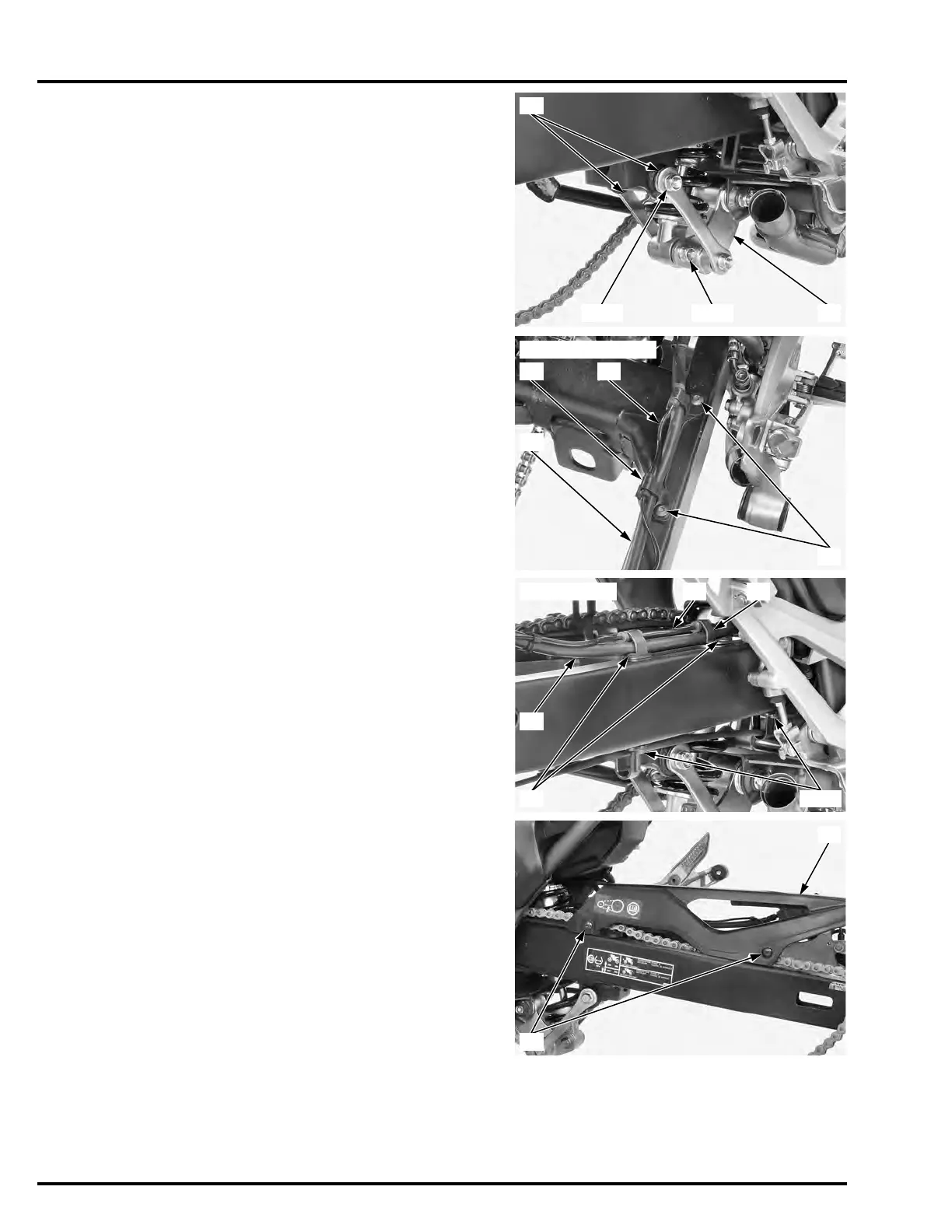

Install the shock arm [1] and shock absorber lower
mounting bolt [2] to the shock absorber.
Install and tighten the shock absorber lower mounting
nut [3] to the specified torque.
Install the shock links [4] and shock link bolt [5] to the
swingarm.
Install and tighten the shock link nut [6] to the specified
torque.
NC700X/XA/S/SA: Install the rear wheel speed sensor wire (NC700XA/SA)
[1] and brake hose [2] to the brake hose guide [3].
Install the brake hose guide and socket bolts [4].
Tighten the socket bolts securely.
NC700XD/SD: Install the rear wheel speed sensor wire [1] and brake
hose [2] to the brake hose guide [3].
Install the brake hose guide and socket bolts [4].
Tighten the socket bolts securely.
Install the parking brake cable guides [5] and screws
[6].
Tighten the screws securely.
Install the drive chain case [1] and socket bolts [2].
Tighten the socket bolts securely.
TORQUE:44 N·m (4.5 kgf·m, 32 lbf·ft)
TORQUE:44 N·m (4.5 kgf·m, 32 lbf·ft)
[5]/[6] [2]/[3] [1]
[4]
NC700XA/SA shown:
[4]
[3]
[2]
[1]
NC700XD/SD:
[4]
[3]
[2]
[1]
[5]/[6]
[1]
[2]

Honda NC700 2012 Specifications

General

Engine Type	670cc liquid-cooled parallel-twin
Bore x Stroke	73.0mm x 80.0mm
Compression Ratio	10.7:1
Front Brake	Single 320mm disc with two-piston caliper
Rear Brake	Single 240mm disc with single-piston caliper
Fuel Capacity	3.7 gallons
Fuel System	PGM-FI
Transmission	6-speed
Front Suspension	41mm telescopic fork
Rear Suspension	Pro-Link single shock
Front Tire	120/70-17
Rear Tire	160/60-17
Wheelbase	60.6 inches
Curb Weight	472 pounds
