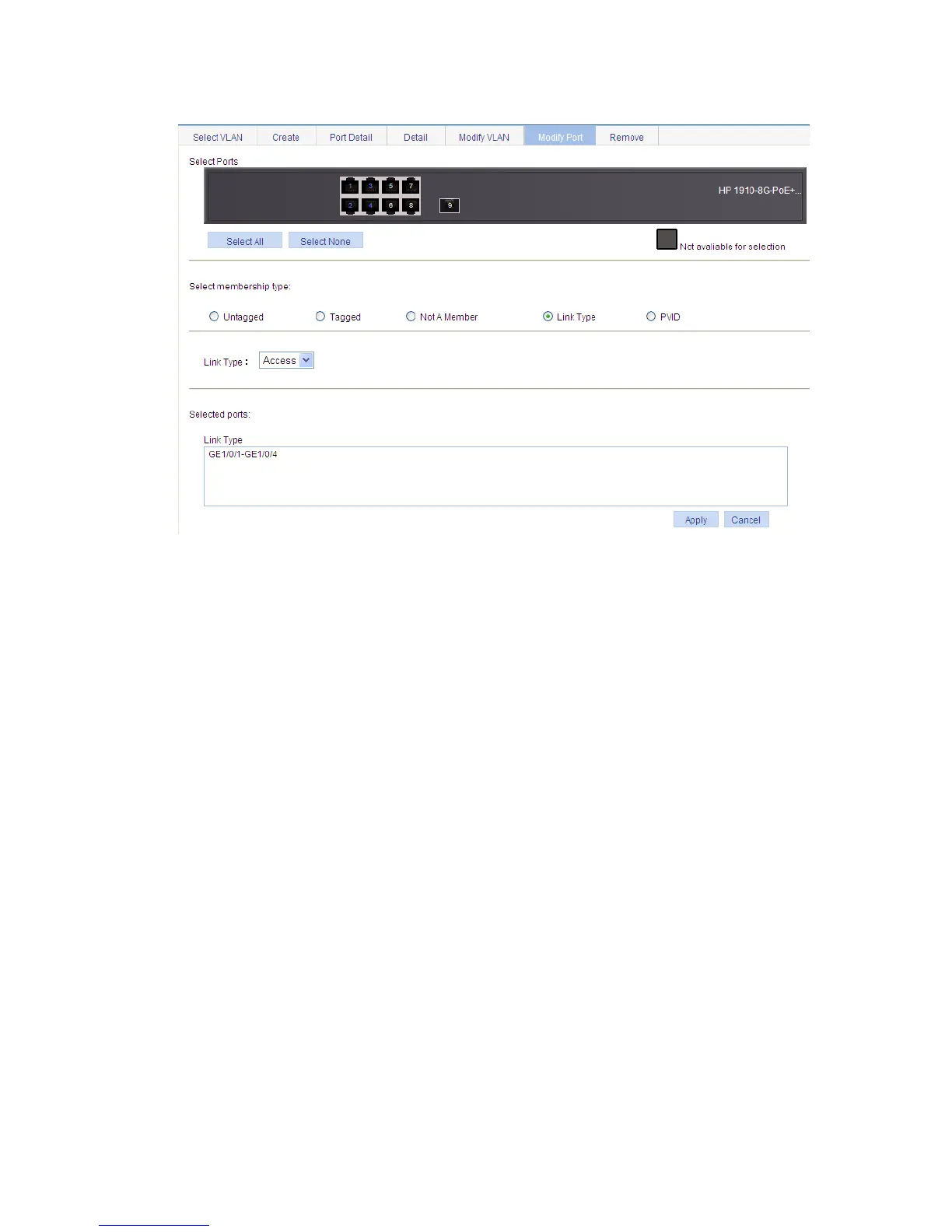

Figure 140 Modifying ports
You can also configure the link type of a port on the Setup tab of Device > Port Management. For more
information, see "Managing ports."
Setting the PVID for a port
1. Select Network > VLAN from the navigation tree.
2. Click the Modify Port tab.
3. Select the port that you want to configure on the chassis front panel.
4. Select the PVID option.
The option allows you to modify the PVID of the port.
5. Set a PVID for the port. By selecting the Delete box, you can restore the PVID of the port to the
default, which is VLAN 1.
The PVID of an access port must be an existing VLAN.
6. Click Apply.
A progress dialog box appears.
7. Click Close on the progress dialog box when the dialog box prompts that the configuration
succeeds.
