157

Table 42 Configuration items

Item Descri

tion

Select Ports

Select the ports to be modified.

Select

membership

type

Set the member types of the selected ports to be modified in the specified VLANs:

• Untagged—Configure the ports to send the traffic of the VLANs after removing the VLAN

tags.

• Tagged—Configure the ports to send the traffic of the VLANs without removing the VLAN

tags.

• Not a Member—Remove the ports from the VLANs.

VLAN IDs

Set the IDs of the VLANs to/from which the selected ports are to be assigned/removed.

NOTE:

• You cannot configure an access port as an untagged member of a nonexistent VLAN.

• When you configure an access port as a tagged member of a VLAN, or configure a trunk

port as an untagged member of multiple VLANs in bulk, the link type of the port is

automatically changed into hybrid.

• You can configure a hybrid port as a tagged or untagged member of a VLAN only if the

VLAN is an existing, static VLAN.

VLAN configuration example

Network requirements

As shown in Figure 145, trunk port GigabitEthernet 1/0/1 of Switch A is connected to trunk port

GigabitEthernet 1/0/1 of Switch B.

Configure the PVID of GigabitEthernet 1/0/1 as VLAN 100, and configure GigabitEthernet 1/0/1 to

permit packets of VLAN 2, VLAN 6 through VLAN 50, and VLAN 100 to pass through.

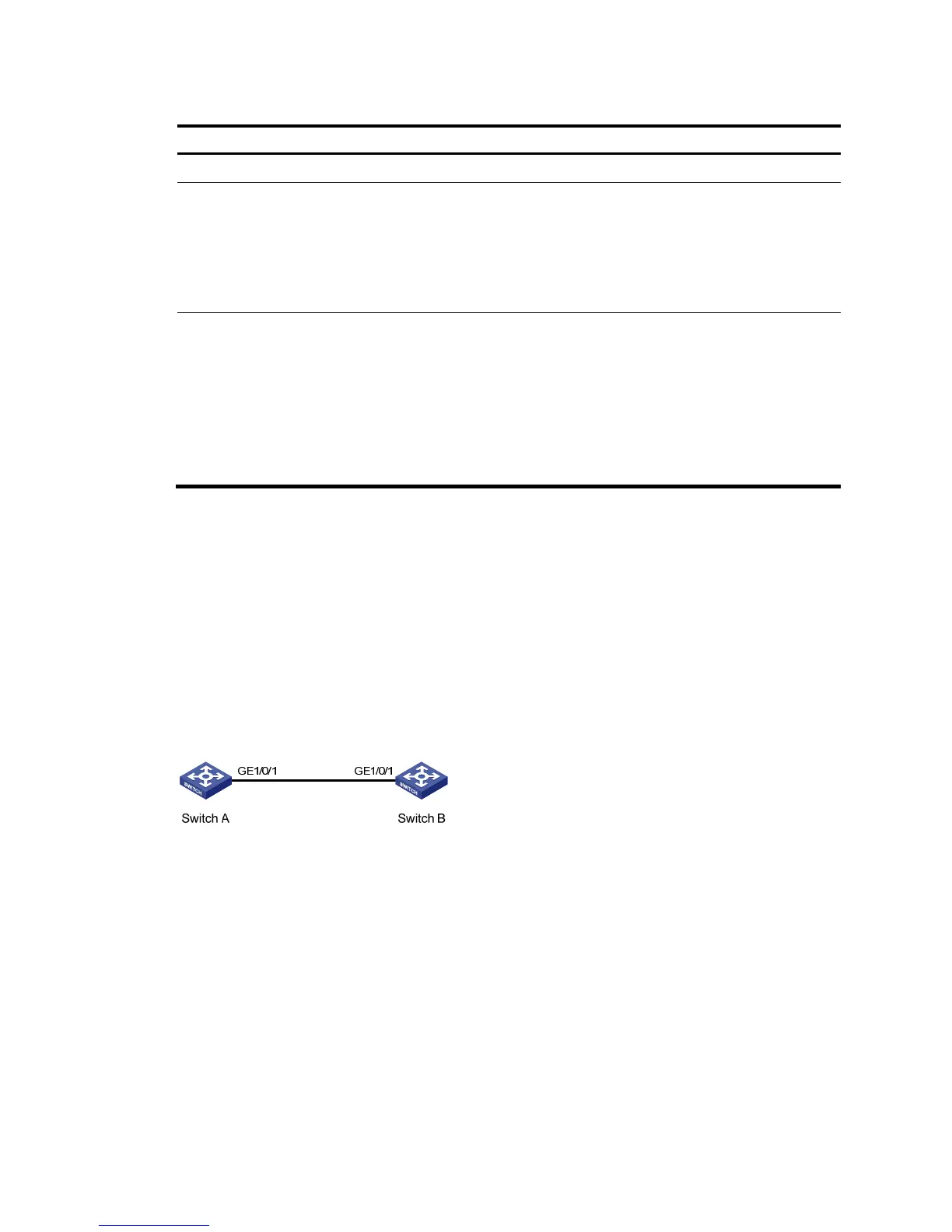

Figure 145 Network diagram

Configuring Switch A

1. Configure GigabitEthernet 1/0/1 as a trunk port and configure VLAN 100 as the PVID:

a. Select Device > Port Management from the navigation tree.

b. Click Setup to enter the page for setting ports.

c. Select Trunk in the Link Type list, select the PVID box, and then enter PVID 100.

d. Select GigabitEthernet 1/0/1 on the chassis front device panel.

e. Click Apply.
