55
Displaying device information
Select Summary from the navigation tree, and click the Device Information tab to enter the page
displaying the device ports, power supplies, and fans. Hover the cursor over a port and the port details
appear, including the port name, type, speed, usage, and status, as shown in Figure 40. T
he
aggregation group number is also displayed if the port is added to an aggregation group. For the
description about the port number and its color, see Figure 40. Simila
rly, you can also view the power
type and operating status and the fan operating status.

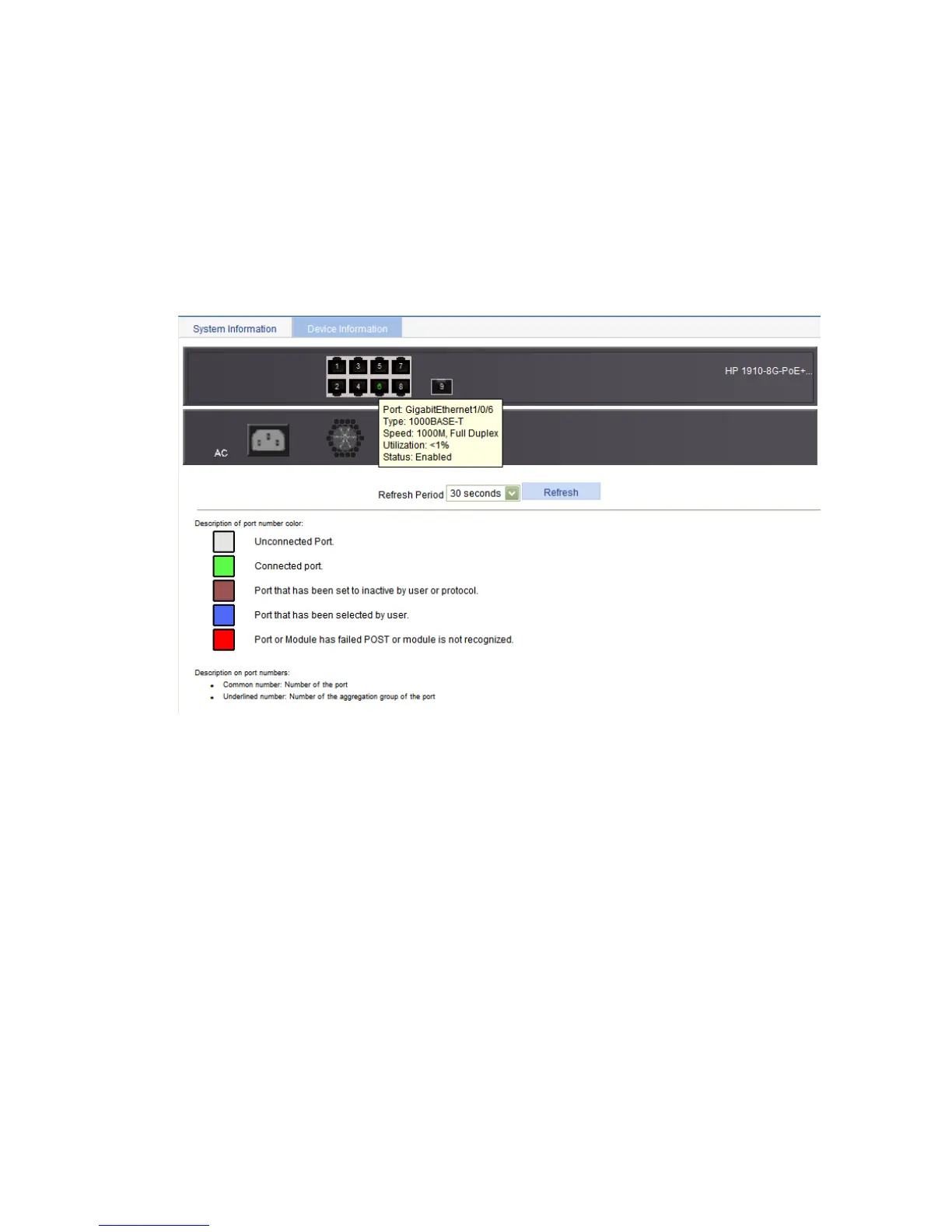

Figure 40 Device information
To set the interval for refreshing device information, select one of the following options from the Refresh
Period list:
• If you select a certain period, the system refreshes device information at the specified interval.
• If you select Manual, the system refreshes device information only when you click the Refresh button.
