• Select Enable in the Non-Standard PD Compatibility column, and click Apply.
• Click Enable All.
Disabling the non-standard PD detection function for a PSE
Perform one of the following tasks on the PSE Setup tab to disable the non-standard PD detection function:
• Select Disable in the Non-Standard PD Compatibility column, and click Apply.
• Click Disable All.
Displaying information about PSE and PoE ports
1. Select PoE > PoE from the navigation tree to enter the Summary tab.
The upper part of the page displays the PSE summary.
2. To view the configuration and power information, click a port on the chassis front panel.

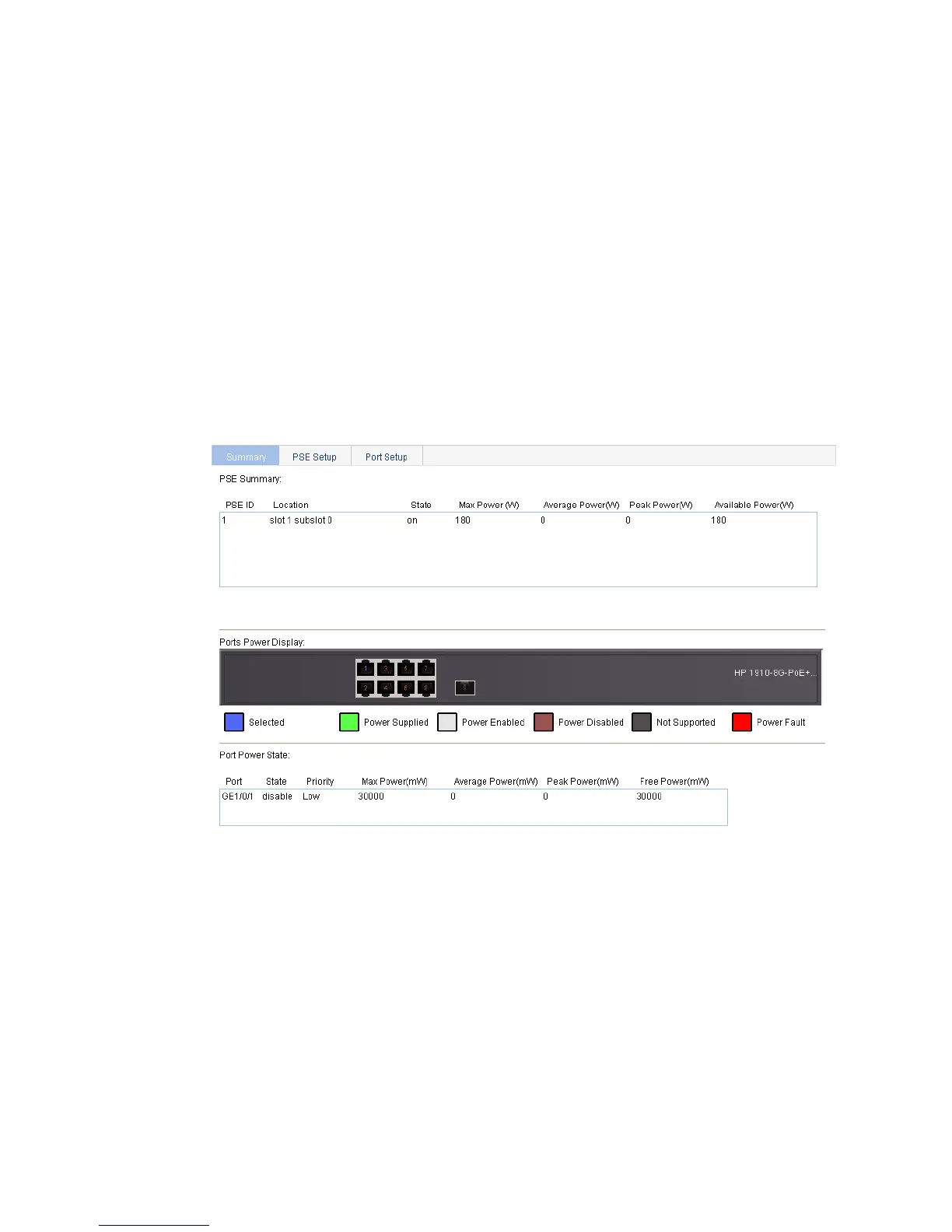

Figure 512 Summary tab (with GigabitEthernet 1/0/1 selected)
PoE configuration example
Network requirements
As shown in Fi g u re 513 , GigabitEthernet 1/0/1 and GigabitEthernet 1/0/2 are connected to IP
telephones.
GigabitEthernet 1/0/3 is connected to AP whose maximum power does not exceed 9000 milliwatts.
The power supply priority of IP telephones is higher than that of AP; therefore, the PSE supplies power to
IP telephones first when the PSE power is overloaded.
