323

Enabling DHCP and configuring advanced

parameters for the DHCP relay agent

1. Select Network > DHCP from the navigation tree to enter the DHCP Relay page.

2. Click Display Advanced Configuration to expand the advanced DHCP relay agent configuration

area.

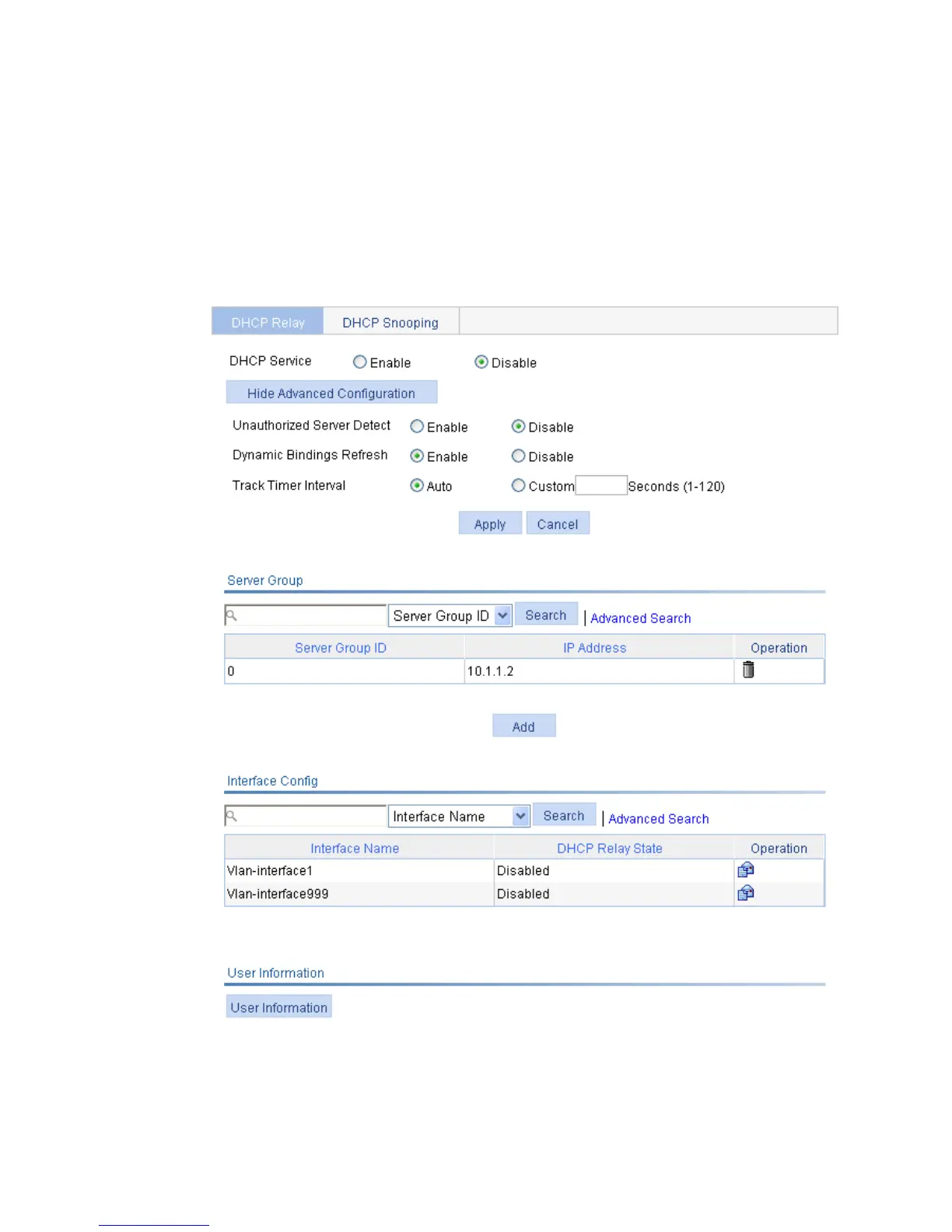

Figure 289 DHCP relay agent configuration page

3. Enable DHCP service and configure advanced parameters for DHCP relay agent as described

in Table 94.

4. Cli

ck Apply.
