HP 1910 User Manual

46
View interfaces and power socket layout on the panel of each stack member by clicking their respective
tabs.

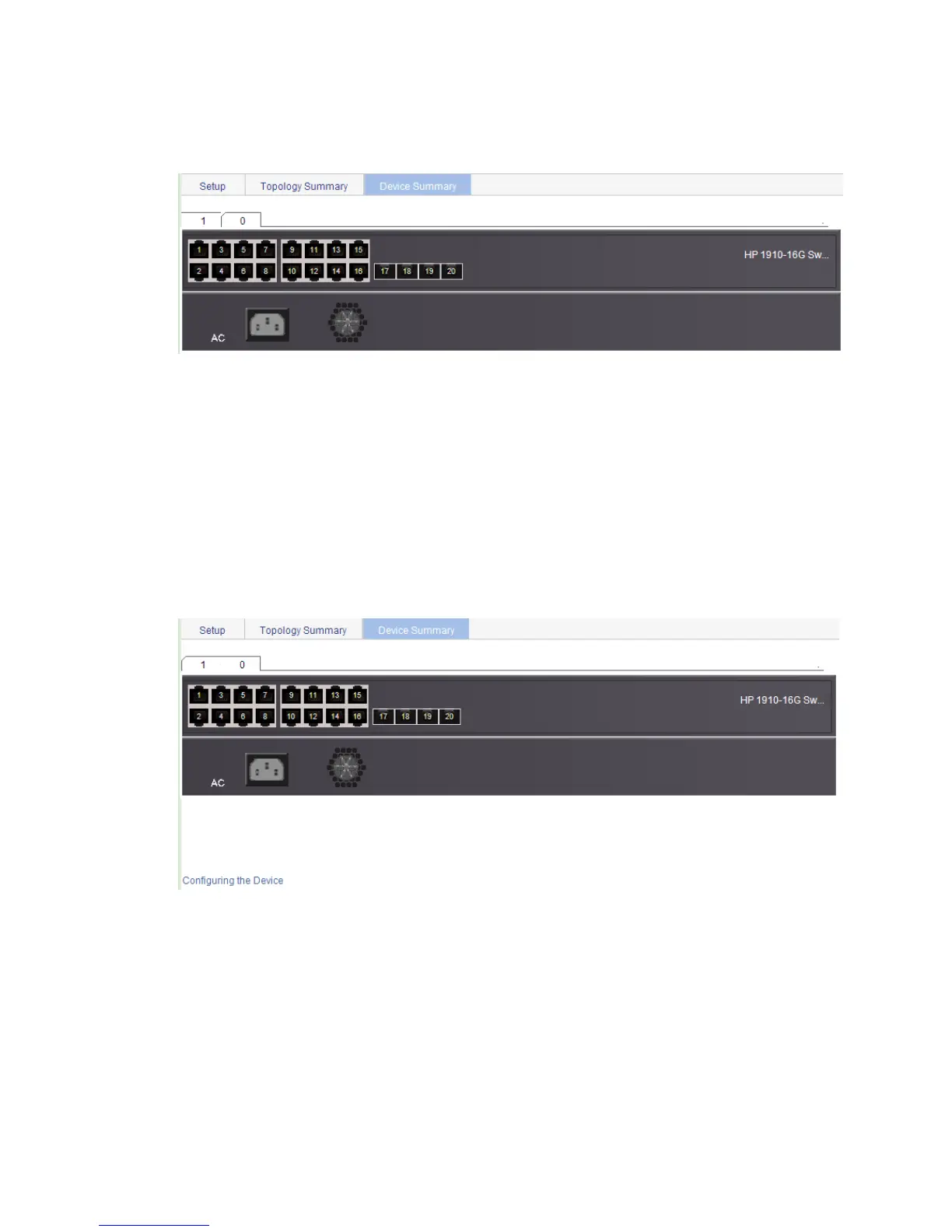

Figure 31 Device Summary tab (on the master device)
Return to Configuration task list.
Logging in to a member device from the master
1. Select Stack from the navigation tree.
2. Click the Device Summary tab.
3. Click a member device ID tab.
4. On the page in Figure 32, c
lick the Configuring the Device link.
Figure 32 Device Summary tab (on a member device)
Stack configuration example
Network requirements
As shown in Figure 33, create a stack that comprises Switch A, Switch B, Switch C, and Switch D. Use
Switch A as the master device so an administrator can log in to any other stack member device through
Switch A for remote configuration and management.
