285
a. Click the icon for VLAN 100.
b. Select Enable for IGMP snooping.
c. Select 2 for Version.
d. Select Enable for Drop Unknown.
e. Click Apply.

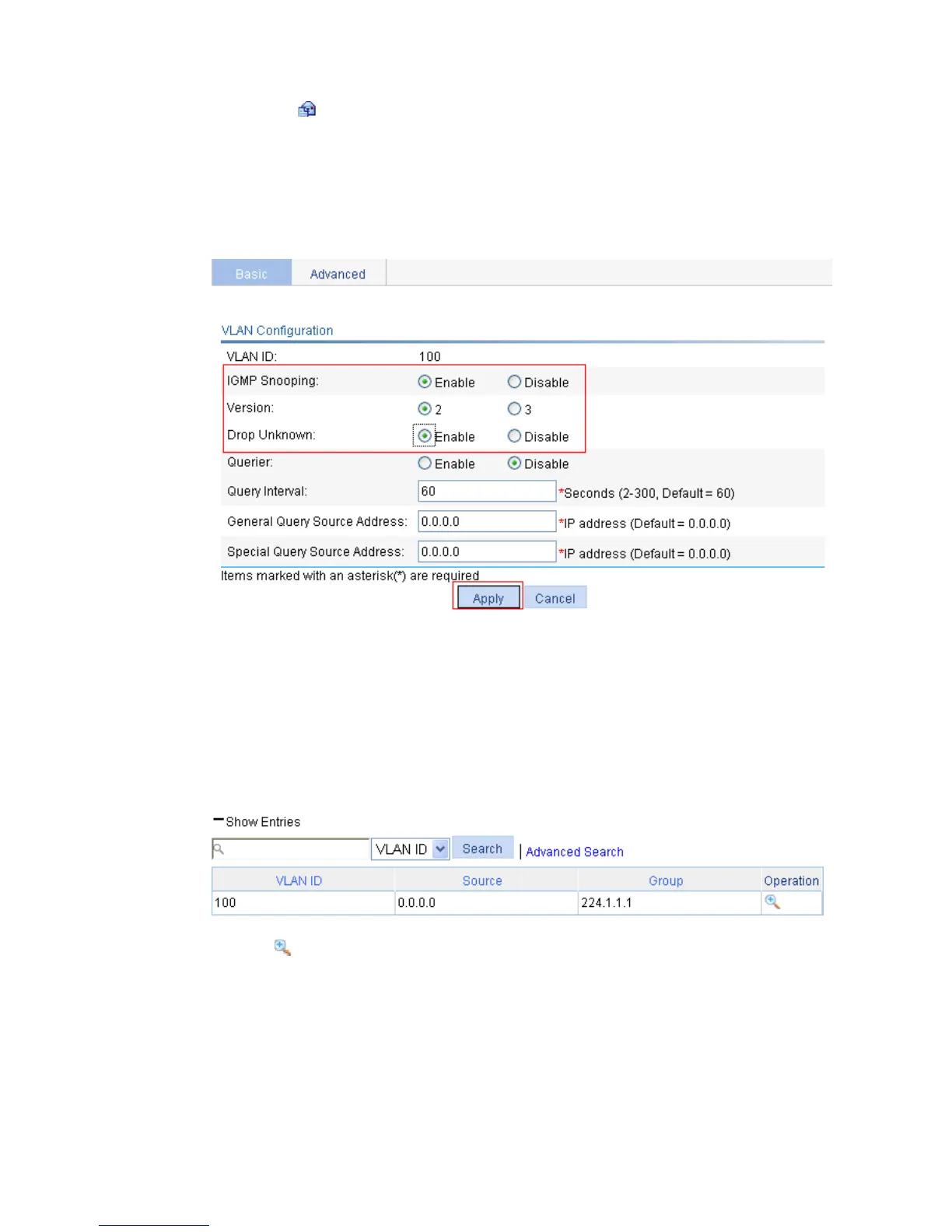

Figure 251 Configuring IGMP snooping in VLAN 100
Verifying the configuration
1. Select Network > IGMP snooping from the navigation tree.
2. Click Show Entries in the basic VLAN configuration page to display information about IGMP
snooping multicast forwarding entries.
Figure 252 Displaying IGMP snooping multicast forwarding entries
3. Click the icon for the multicast entry (0.0.0.0, 224.1.1.1) to view detailed information about
this entry.
