OUI Address
Set the source MAC address of voice traffic.
Mask
Set the mask length of the source MAC address.
Description
Set the description of the OUI address entry.
Voice VLAN configuration examples
Configuring voice VLAN on a port in automatic voice VLAN
assignment mode
Network requirements
As shown in Figure 158:
• Configure VLAN 2 as the voice VLAN allowing only voice traffic to pass through.
• The IP phone connected to hybrid port GigabitEthernet 1/0/1 sends untagged voice traffic.
• GigabitEthernet 1/0/1 operates in automatic VLAN assignment mode. Set the voice VLAN aging
timer to 30 minutes.
• Configure GigabitEthernet 1/0/1 to allow voice packets whose source MAC addresses match the
OUI addresses specified by OUI address 0011-2200-0000 and mask ffff-ff00-0000. The
description of the OUI address entry is test.

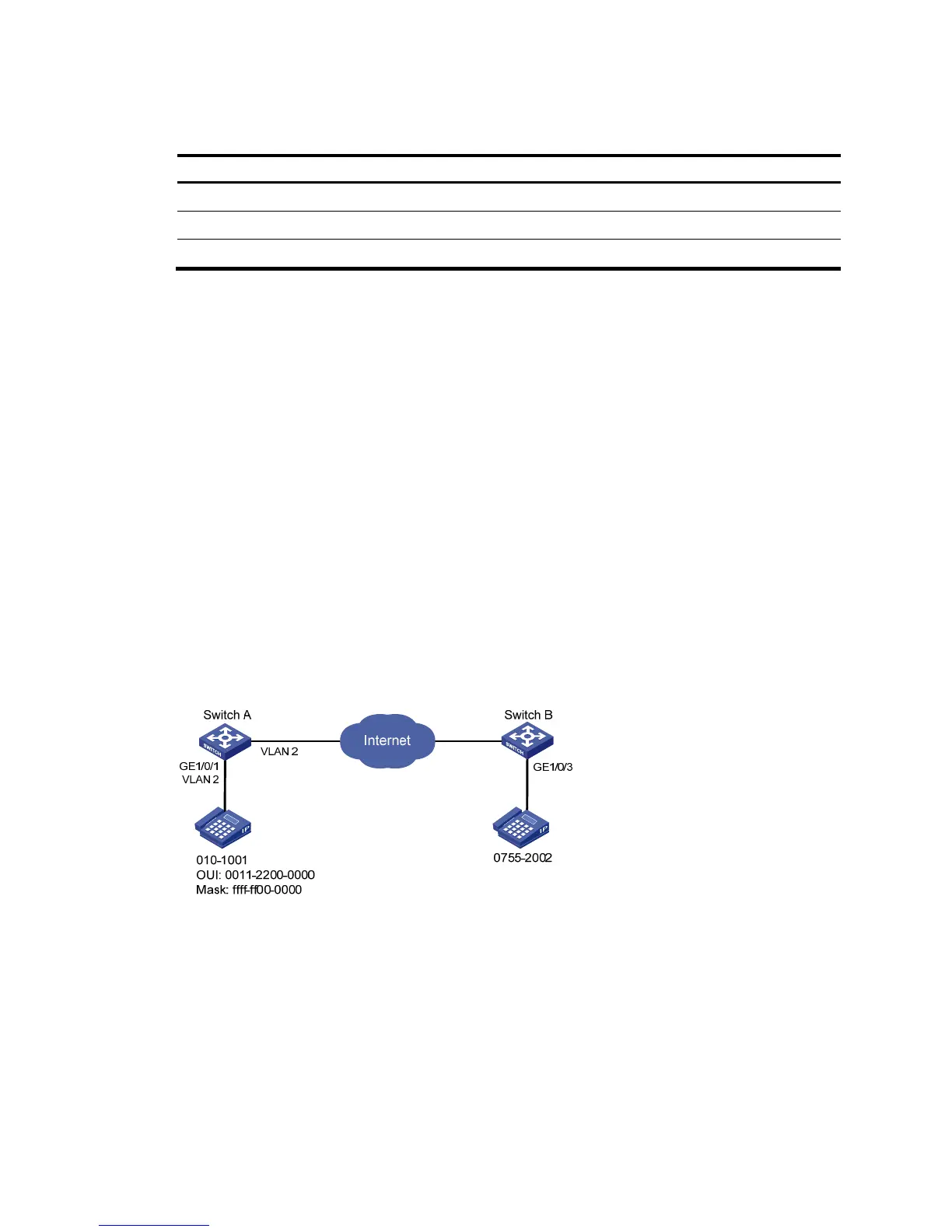

Figure 158 Network diagram
Configuring Switch A
1. Create VLAN 2:
a. Select Network > VLAN from the navigation tree.
b. Click the Create tab.
c. Enter VLAN ID 2.
d. Click Create.
