2H0/2HZ
1-3-64
U402

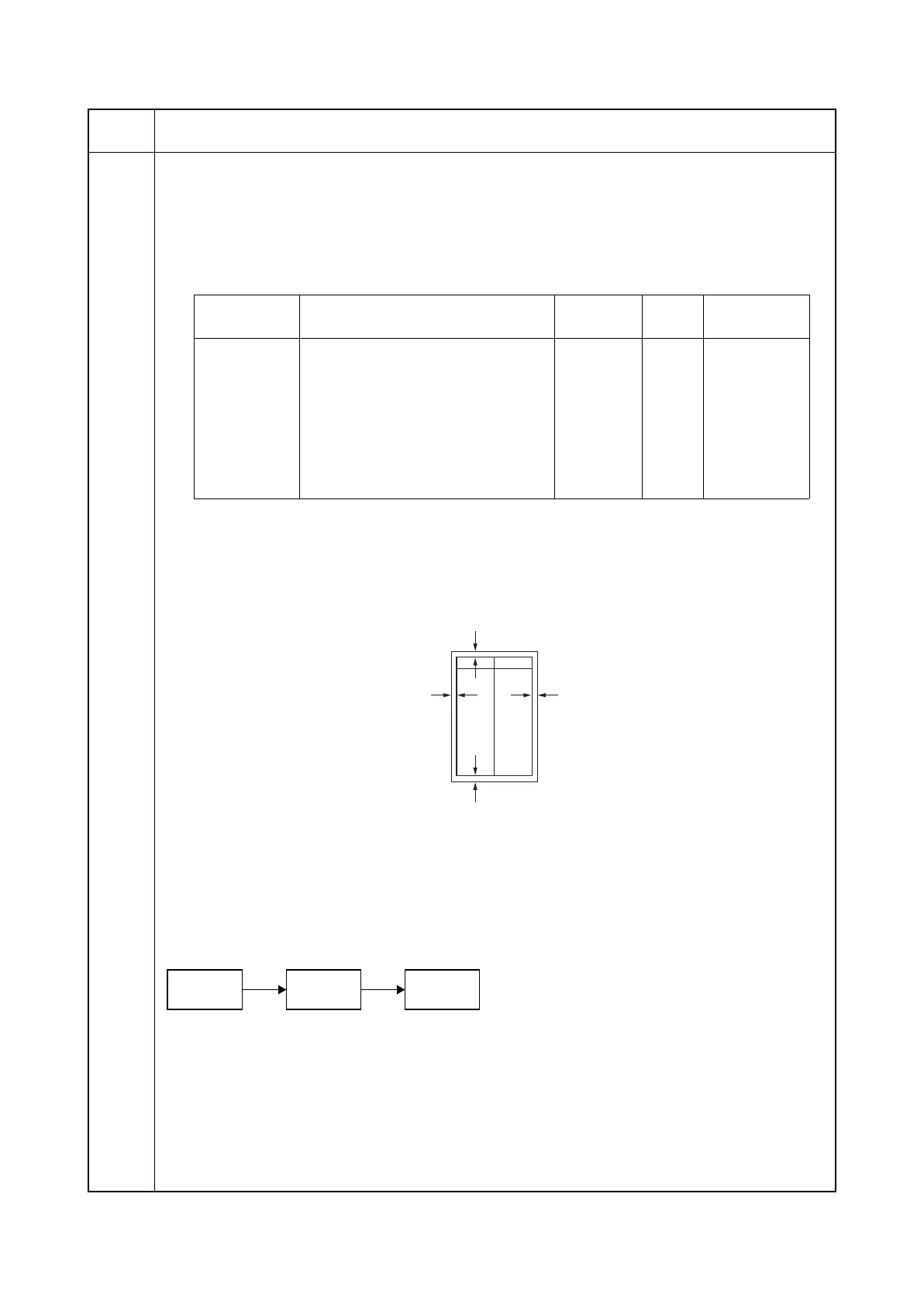

Adjusting margins of image printing
Description
Adjusts margins for image printing.
Purpose
Make the adjustment if margins are incorrect.
Adjustment
1. Press the start key.
2. Select the item to be adjusted.
3. Press the system menu key.
4. Press the start key to output a test pattern.
5. Press the system menu key.
6. Change the setting value using the +/- or numeric keys.
Increasing the value makes the margin wider, and decreasing it makes the margin narrower.
Figure 1-3-18
7. Press the start key. The value is set.
Caution
Check the copy image after the adjustment. If the image is still incorrect, perform the following adjustments in
maintenance mode.
Completion
Press the stop key. The screen for selecting a maintenance item No. is displayed.
Maintenance
item No.
Description
Display Description
Setting
range
Initial
setting
Change in
value per step
LEAD Printer leading edge margin 0 to 236 75 0.042 mm
A Printer left margin -80 to 236 85 0.042 mm
C Printer right margin -118 to 236 85 0.042 mm
TRAIL Printer trailing edge margin -118 to 236 95 0.042 mm
TRAIL(DUP) Printer trailing edge margin in duplex
mode (second side)
-118 to 236 155 0.042 mm
TRIAL(MP) Printer trailing edge margin (MP tray) -118 to 236 110 0.042 mm
Printer leading edge margin
(3.0±2.5 mm)
Printer
left margin
Printer
right margin
Printer trailing edge margin
(3.0±2.5 mm)
–1.5
(2.0
+2.0
mm)
–1.5
(2.0
+2.0
mm)
U402
U403
(P.1-3-65)
U404
(P.1-3-66)
To Next Page
