Kyocera KM-3060 Service Manual
5
of 1
of 1 rating
392 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
2H0/2HZ-1
1-5-58
(2) Detaching and refitti
ng the ozone filter 2
Follow the procedure below to
replace the
ozone filter 2.
Procedure
1.
Remove the filter cover
.
2.
Remove the ozone filter 2.
3.
Replace the ozone filter 2 and install the fil-
ter
.
4.
Refit all the removed parts.

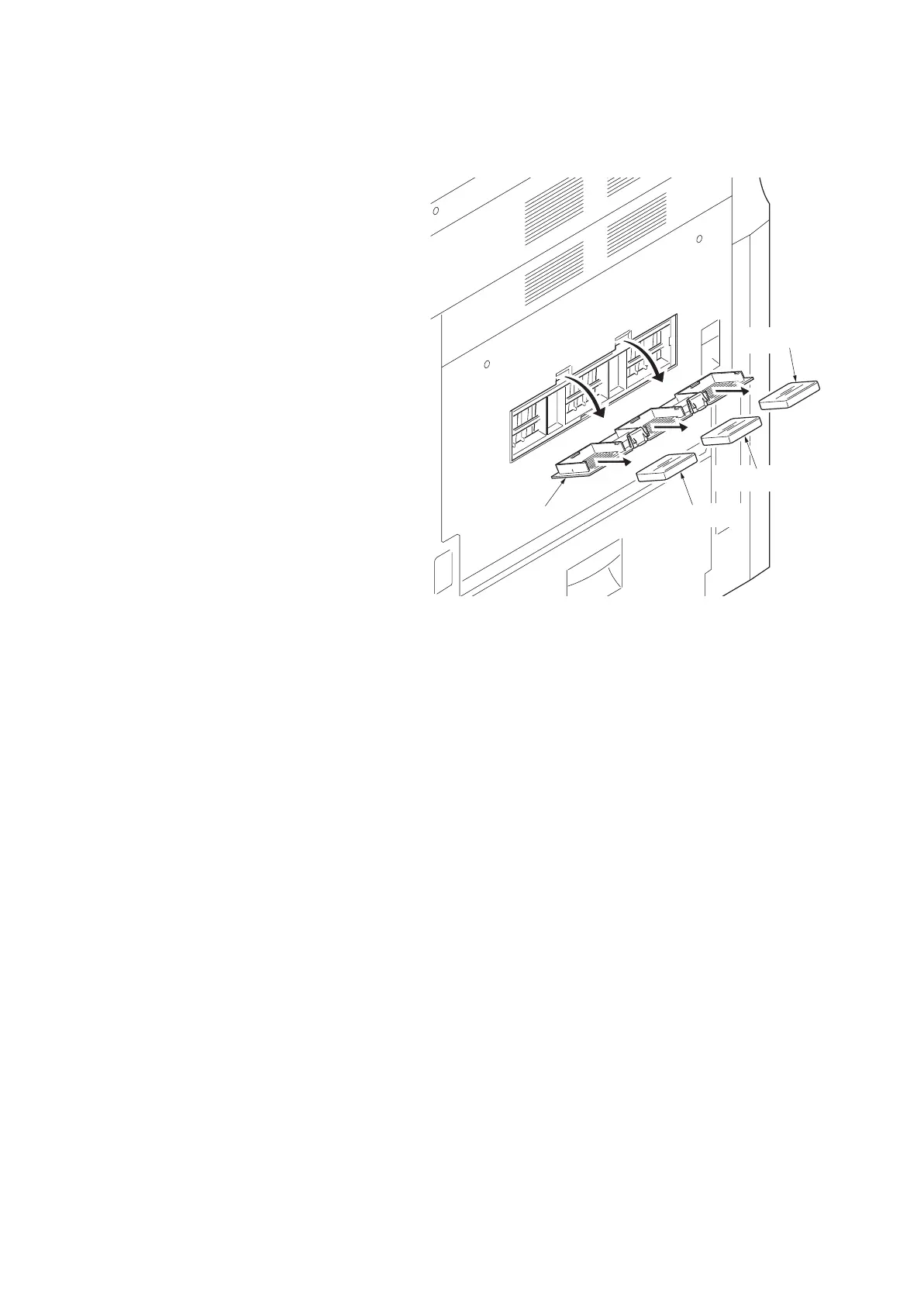

Figure 1-5-105
Ozone filter 2
Ozone filter 2
Ozone filter 2
Filter cover
237
239
