2H0/2HZ
1-5-6
(2) Detaching and refitti
ng the MP separation, MP paper feed
and MP forwarding pulleys

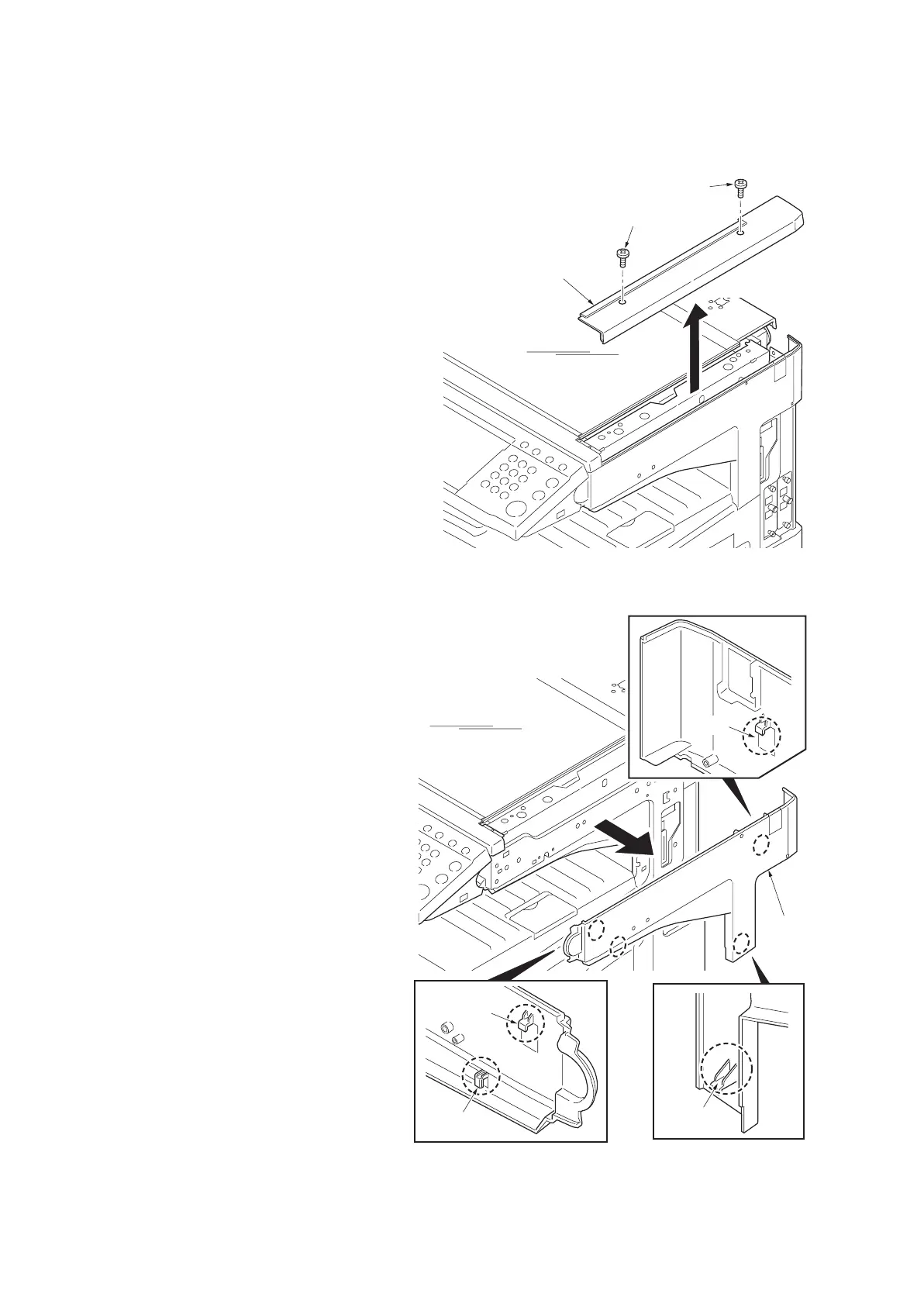

Follow the procedure below to replace the MP se
paration, MP paper feed and MP forwarding pulleys.
Procedure
Removing the MP unit
1.
Remove two screws and remove the scan-
ner right cover
.
Figure 1-
5-9
2.
Remove four hooks and remove th
e right
upper cover
.
Figure 1-5-10
Screw
Screw
Scanner right cover
Right upper
cover
Hook
Hook
Hook
Hook
185
