2H0/2HZ
2-2-5
(3) Motors

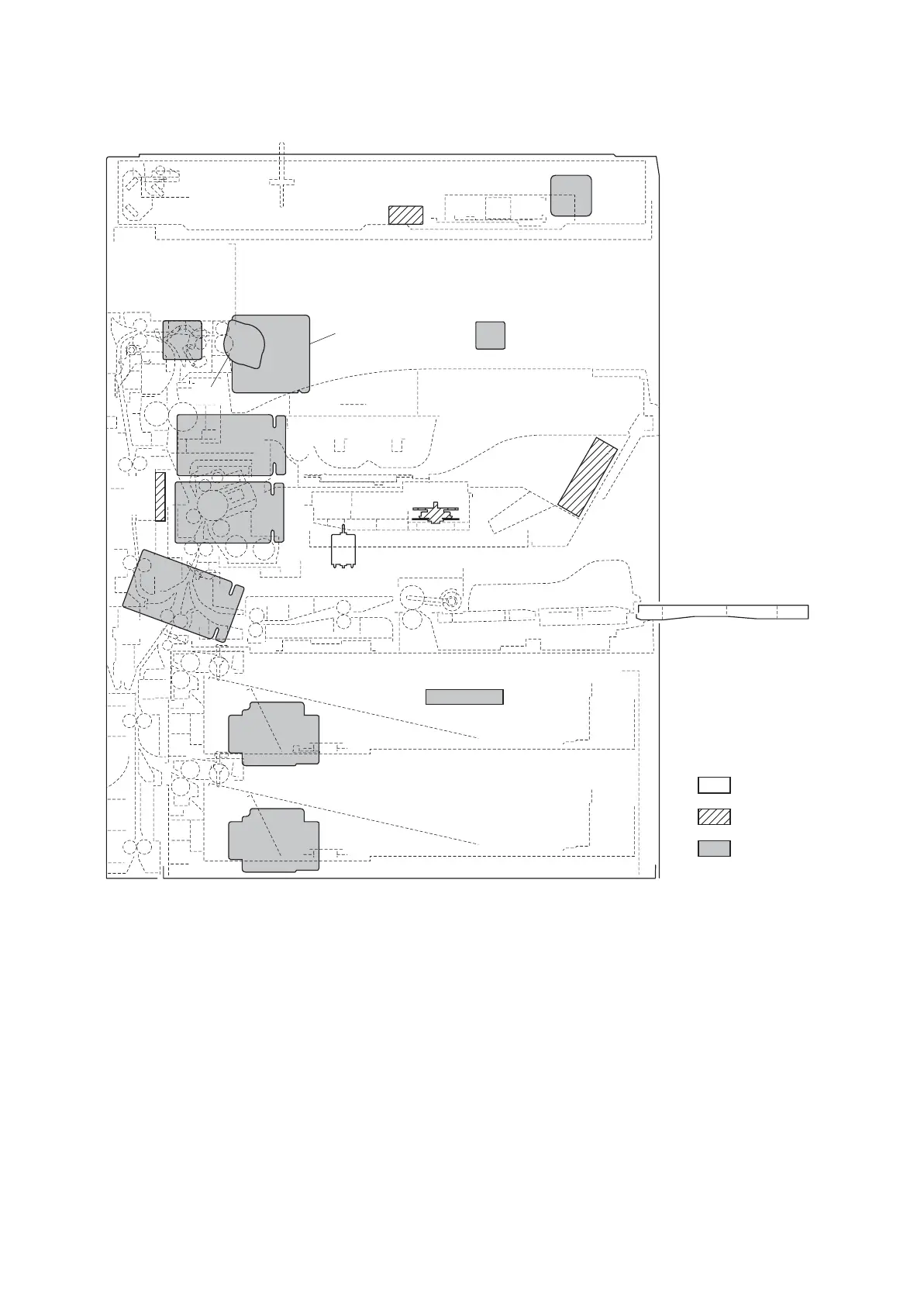

Figure 2-2-3 Motors
1. Main motor (MM).......................................... Drives developing section and fuser section.
2. Drum motor (DM) ......................................... Drives the drum.
3. Paper feed motor (PFM) .............................. Drives paper feed section.
4. Upper lift motor (LM-U) ................................ Drives cassette 1 lift.
5. Lower lift motor (LM-L)................................. Drives cassette 2 lift.
6. Scanner motor (SM)..................................... Drives the optical system.
7. Eject motor (EM) .......................................... Drives the eject section.
8. Toner feed motor (TFM) ............................... Replenishes toner.
9. Polygon motor (PM) ..................................... Drives the polygon mirror.
10. Cooling fan motor 1 (CFM1) ........................ Cools the machine interior.
11. Cooling fan motor 2 (CFM2) ........................ Cools the machine interior.
12. Cooling fan motor 3 (CFM3) ........................ Cools the machine interior (around the power source PWB).
13. Cooling fan motor 4 (CFM4)
......................... Cools the machine interior and supports paper transfer for duplex copying.
14. Cooling fan motor 5 (CFM5)
......................... Cools the machine interior and supports paper transfer for duplex copying.
15. Cooling fan motor 6 (CFM6) ........................ Cools the machine interior (controller box).
Machine front
Machine inside
Machine rear
7
10
11
17
15
16
13
14
2
12
1
6
9
3
8
4
5
