2H0/2HZ
1-5-25
(3-2) Fitting the scanner wires
NOTE
When fitting the wires, be sure to use those specified below.
Machine front: (P/N: 2C912360), gray
Machine rear: (P/N: 2C912350), black
Fitting requires the following tools
Two frame securing tools (P/N 302C968310)
Two scanner wire stoppers (P/N 35968110)
Procedure

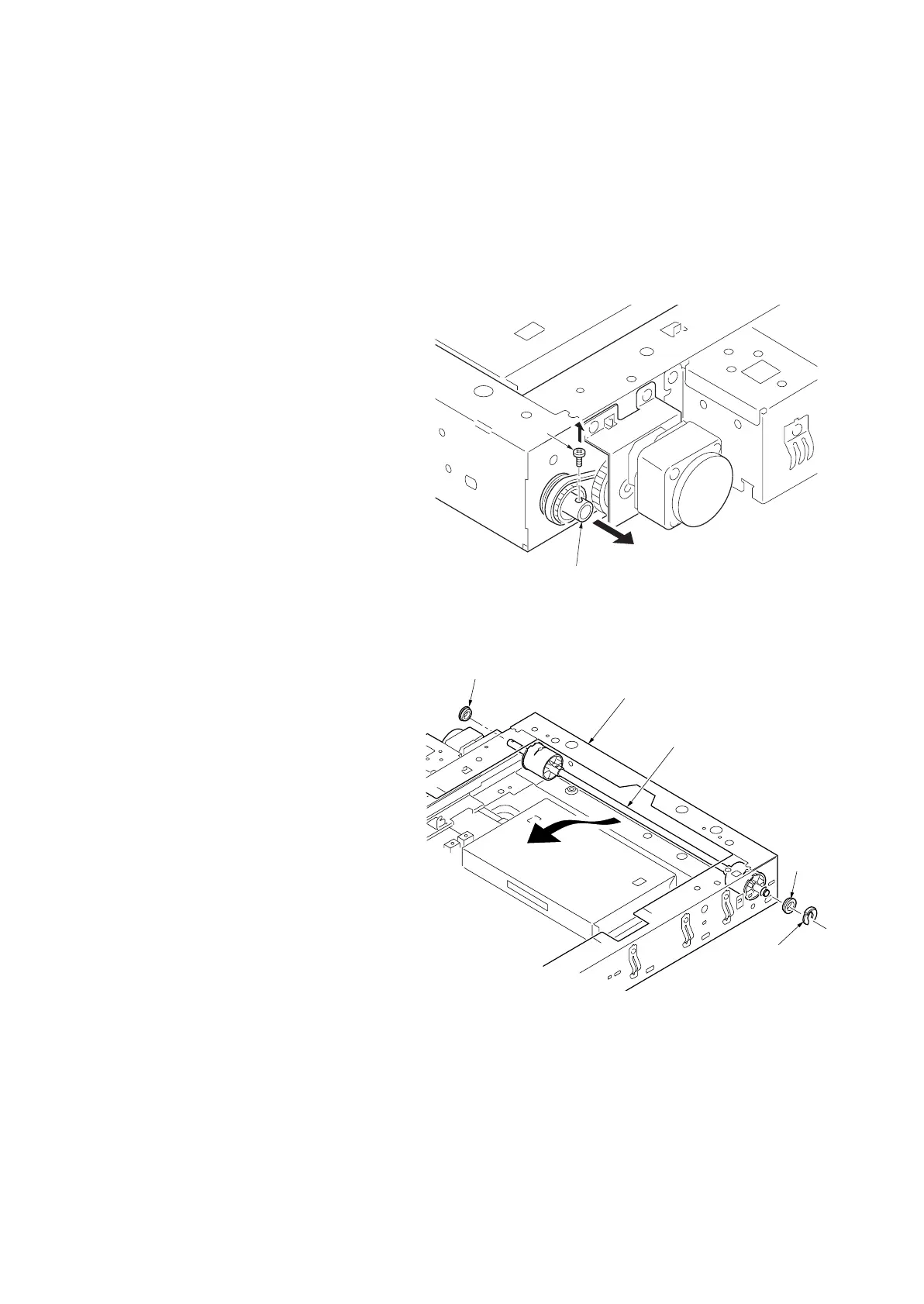

1. Remove the screw and remove the scanner
wire drum gear.
Figure 1-5-45
2. Remove the stop ring and bush from the-
front of the scanner wire drum shaft.
3. Remove the scanner wire drum shaft
fromthe scanner unit.
Figure 1-5-46
Screw
Scanner wire drum gear
Scanner wire drum shaft
Scanner unit
Bush
Bush
Stop ring
To Next Page
