2H0/2HZ
-1
1-5-47
(4) Detaching and refi
tting the fuser heater
Follow the procedure below to replace the fuser heater
.
Procedure
1.
Remove
the fuser un
it (see p
age 1-
5-41).
2.
Remove four claws and remove the fuser
unit cover
.
3.
Remove two connectors.

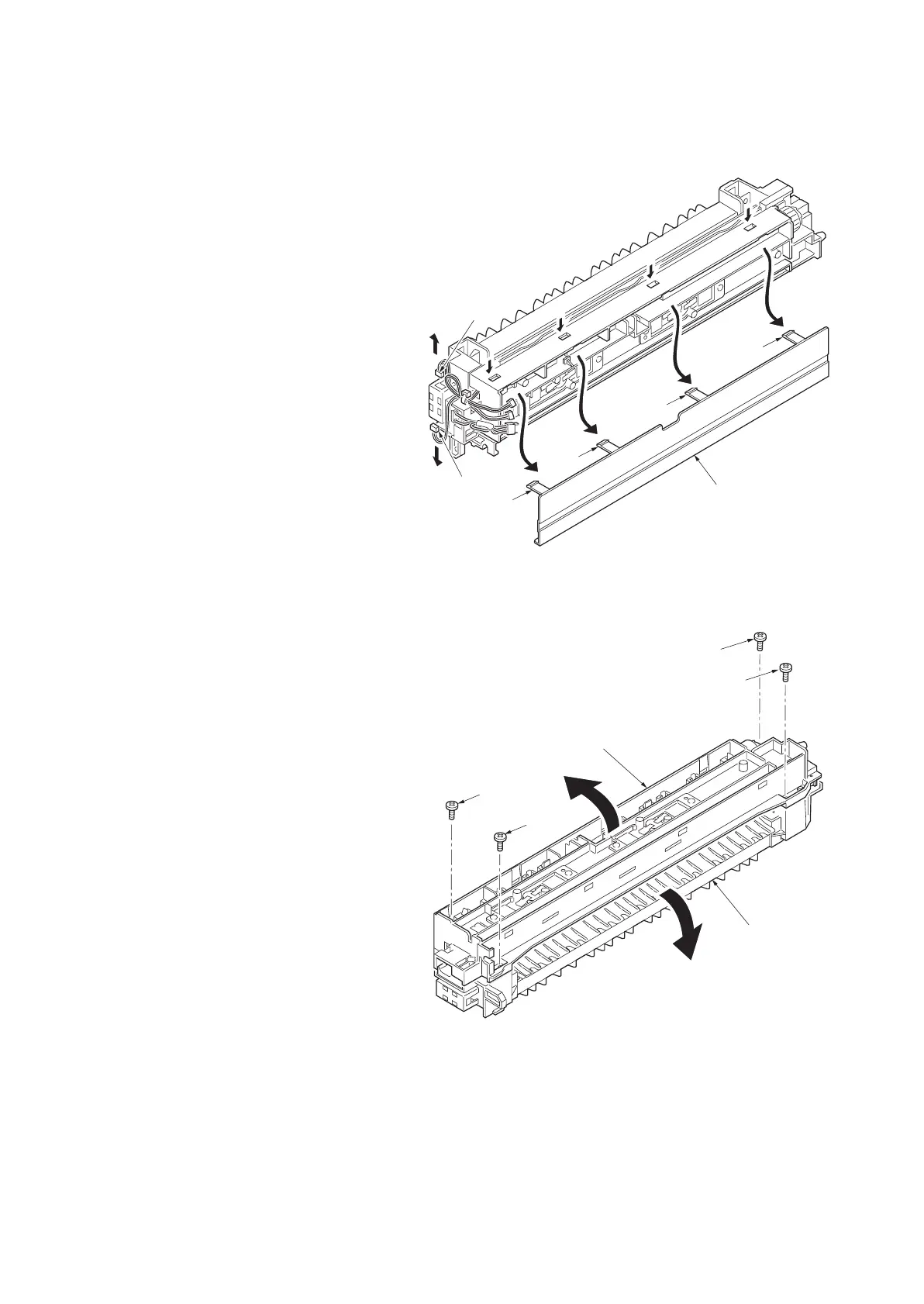

Figure 1-5-86
4.
Remove four screws.
5.
Separate the right fuser frame and left fuser
frame.
Figure 1-5-87
Fuser unit cover
Claw
Connector
Connector
Claw
Claw
Claw
Screw
Screw
Right fuser frame
Left fuser frame
Screw
Screw
226
228
